Spectra T950V 1DBA Max 4TS 738S Expn Lib
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

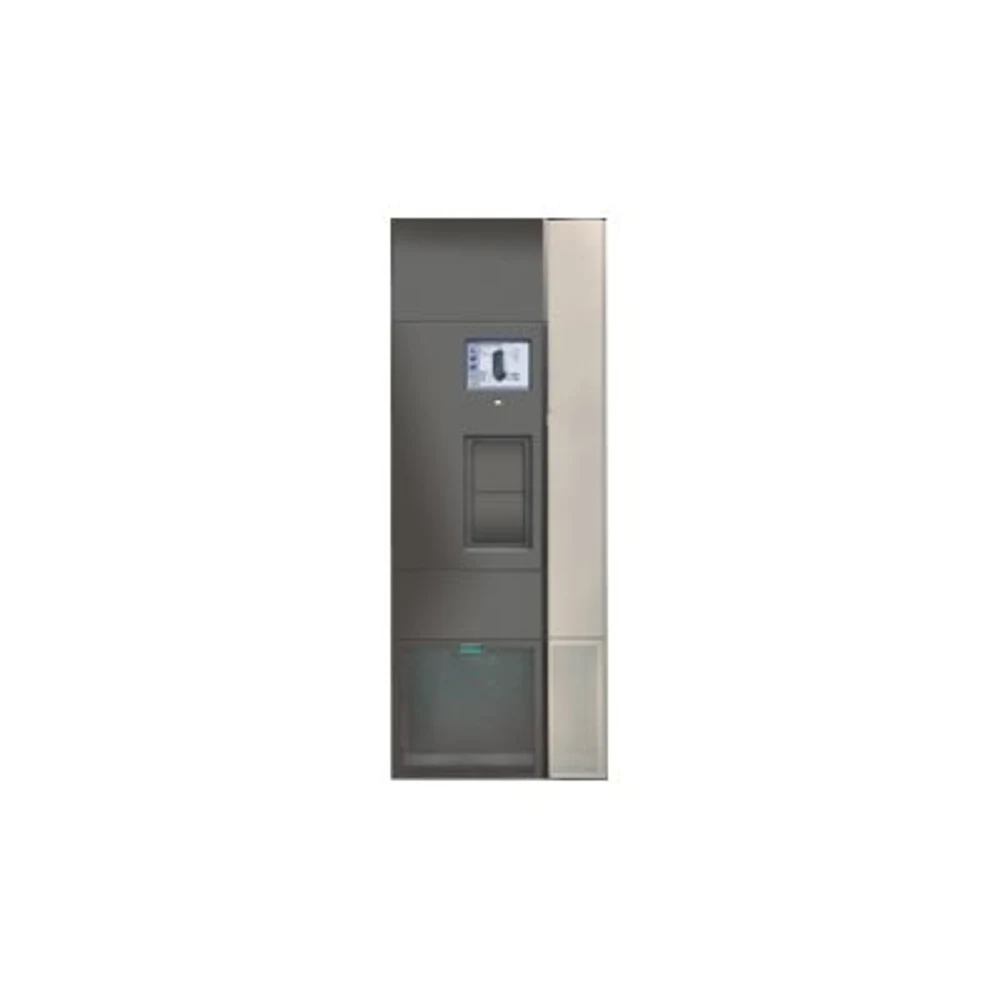

Spectra T950V 1DBA Max 4TS 738S Expn Lib.
Device Type: Tape library expansion module - no tape drives. Enclosure Type: Rack-mountable - 42U. Total Storage Capacity: 11.068 PB (native) / 27.67 PB (compressed). Removable Media Capacity: 738. Max Supported Drives: 4. Supported Tape Drives: TS1150, TS1155. Key Features: Encryption. Width: 201 cm.
Specifications
Highlights
- 42U rack-mountable tape library expansion enclosure
- Up to 27.67 PB compressed and 11.068 PB native storage capacity
- 738 removable media cartridge capacity
- Supports up to 4 TS1150 or TS1155 tape drives
- Single 8Gb Fibre Channel interface connectivity
- Integrated hardware encryption support
General
- Device Type
- Tape library expansion module - no tape drives
- Enclosure Type
- Rack-mountable - 42U
- Total Storage Capacity
- 11.068 PB (native) / 27.67 PB (compressed)
- Removable Media Capacity
- 738
- Max Supported Drives
- 4
- Supported Tape Drives
- TS1150, TS1155
- Key Features
- Encryption
- Width
- 201 cm
- Depth
- 73.7 cm
- Height
- 109.9 cm
- Weight
- 327 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 220 cm
- Shipping Depth
- 110 cm
- Shipping Height
- 140 cm
- Shipping Weight
- 474 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 20 - 80% (non-condensing)
Expansion / Connectivity
- Interfaces
- 1 x 8Gb Fibre Channel
Manufacturer Warranty
- Type
- Limited warranty - parts and labour - 1 year - on-site
Miscellaneous
- Compliant Standards
- FCC Class A certified, CISPR 22 Class A, CISPR 24, UL 60950-1 Second Edition, IEC 60950-1 Second Edition
Storage Removable
- Type
- No tape drives
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE Spectra T950V 1DBA Max 4TS 738S is a 42U rack-mountable tape library expansion module designed for enterprise data archiving and backup. Featuring 738 media slots, support for up to four TS1150 or TS1155 tape drives, and up to 27.67 PB compressed storage capacity, it provides scalable high-density expansion with built-in hardware encryption for large-scale data centres.
Frequently asked questions
What is the HPE Spectra T950V expansion library used for?
- It is used to scale up the capacity and drive density of compatible tape backup infrastructure in enterprise data centres. It adds 738 tape cartridge slots and supports up to four enterprise tape drives for long-term data archiving.
Does this unit include tape drives?
- No, this configuration is an expansion module supplied without tape drives. It is designed to house up to four user-supplied TS1150 or TS1155 enterprise tape drives.
Does the expansion library come with a warranty?
- Yes, this unit includes a 1-year limited parts and labour on-site warranty. Local South African warranty coverage and support are handled through Server Hub.
