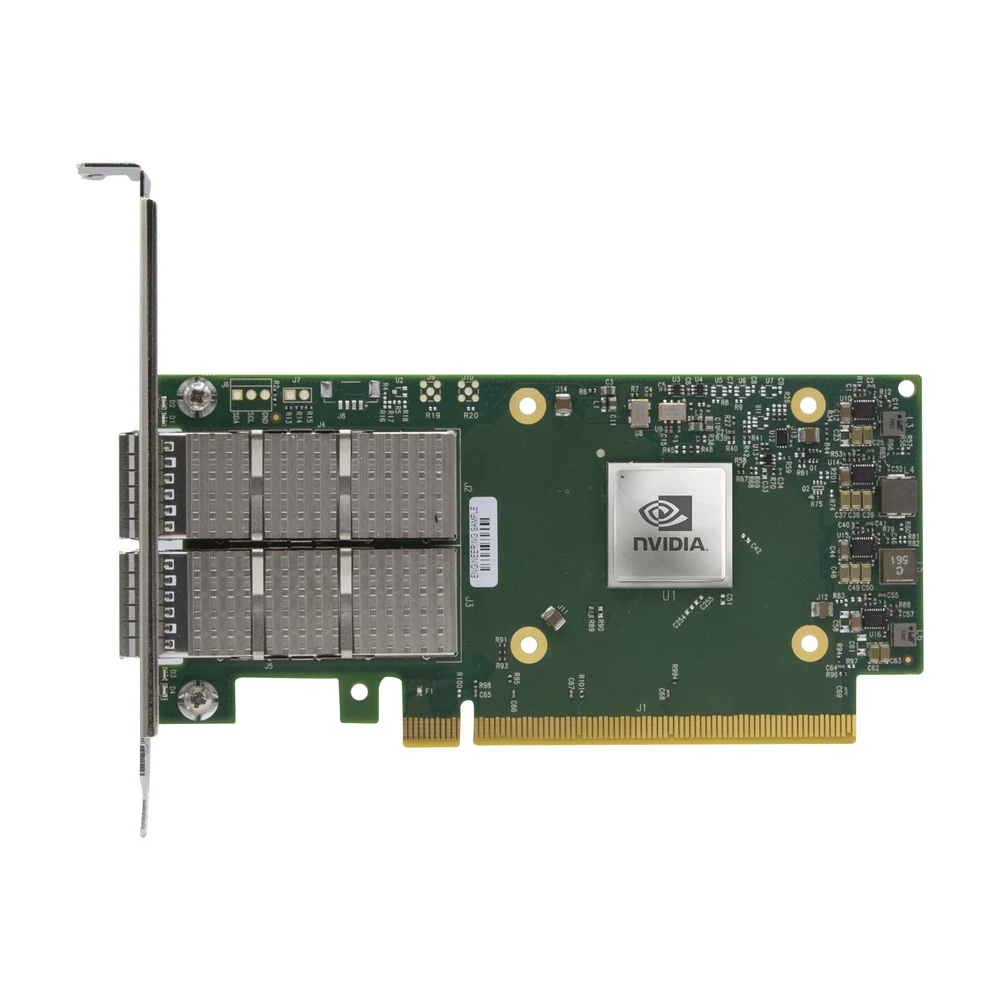

NVIDIA 100GbE 2p NVMeoF Ofld Adptr
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
NVIDIA 100GbE 2p NVMeoF Ofld Adptr.
Device Type: Network adapter. Form Factor: Plug-in card. Interface (Bus) Type: PCI Express 4.0 x16. PCI Specification Revision: PCIe 4.0. Ports: 10Gb Ethernet / 25Gb Ethernet / 40Gb Ethernet / 50Gb Ethernet / 100Gb Ethernet QSFP28 x 2. Connectivity Technology: Wired. Data Link Protocol: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE), 25 Gigabit Ethernet, 50 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE v2). Data Transfer Rate: 100 Gbps.
Specifications
Highlights
- Dual-port QSFP28 interface supporting speeds up to 100 Gbps per port
- PCI Express 4.0 x16 host interface plug-in expansion card
- Hardware offload support for NVMe-oF, RoCE v1/v2, and tunnel offload
- Advanced enterprise features including SR-IOV, NFV, SDN, and VirtIO
- Hardware root of trust, secure boot, and multi-algorithm encryption support
Networking
- Ports
- 10Gb Ethernet / 25Gb Ethernet / 40Gb Ethernet / 50Gb Ethernet / 100Gb Ethernet QSFP28 x 2
- Connectivity Technology
- Wired
- Data Link Protocol
- 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE), 25 Gigabit Ethernet, 50 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE v2)
- Data Transfer Rate
- 100 Gbps
- Network / Transport Protocol
- iSCSI, NFS
- Features
- RDMA support, Single Root I/O Virtualization (SR-IOV), Software Defined Networking (SDN), secure boot, tunnel offload, Network Function Virtualization (NFV), NVMe over Fabrics (NVMe-oF), hardware root of trust, VirtIO, secure firmware update, SMB Direct support
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 4.0 x16
- PCI Specification Revision
- PCIe 4.0
Compatibility Information
- Designed For
- HPE ProLiant DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry
Dimensions & Weight
- Width
- 20.5 cm
- Depth
- 29.7 cm
- Height
- 28.7 cm
- Weight
- 124 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Humidity Range Operating
- 5 - 85% RH (non-condensing)
Expansion / Connectivity
- Interfaces
- 2 x 10Gb Ethernet/25Gb Ethernet/40Gb Ethernet/50Gb Ethernet/100Gb Ethernet - QSFP28
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 1 year
Miscellaneous
- Included Accessories
- Tall bracket
- Encryption Algorithm
- TLS, 256-bit AES-GCM, 256-bit AES-XTS, 128-bit AES-GCM, 512-bit AES-XTS
Software / System Requirements
- OS Required
- Microsoft Windows Server 2019, Red Hat Enterprise Linux 8.4, SUSE Linux Enterprise Server 15 SP3, VMware ESXi 7.0 Update 2 or later
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The NVIDIA 100GbE 2-port NVMe-oF Offload Adapter by HPE is a high-performance PCIe 4.0 x16 plug-in network card. Designed for enterprise servers like the HPE ProLiant DL345 Gen10 Plus, it delivers up to 100 Gbps speeds across dual QSFP28 ports, featuring advanced hardware offloads for NVMe over Fabrics, RoCE, and virtualised data centre environments.
Frequently asked questions
What is the NVIDIA 100GbE 2-port NVMe-oF adapter used for?
- This adapter provides high-throughput, low-latency networking for enterprise data centres. It offloads NVMe over Fabrics (NVMe-oF) and RoCE traffic directly onto the network card, reducing CPU overhead during intensive storage and computing operations.
Which servers and operating systems are compatible with this adapter?
- It is designed for HPE ProLiant DL345 Gen10 Plus series servers. Supported operating systems include Microsoft Windows Server 2019, Red Hat Enterprise Linux 8.4, SUSE Linux Enterprise Server 15 SP3, and VMware ESXi 7.0 Update 2 or later.
Does this network adapter come with a warranty in South Africa?
- Yes, it includes a 1-year limited parts and labour warranty fulfilled locally in South Africa when purchased through Server Hub.
