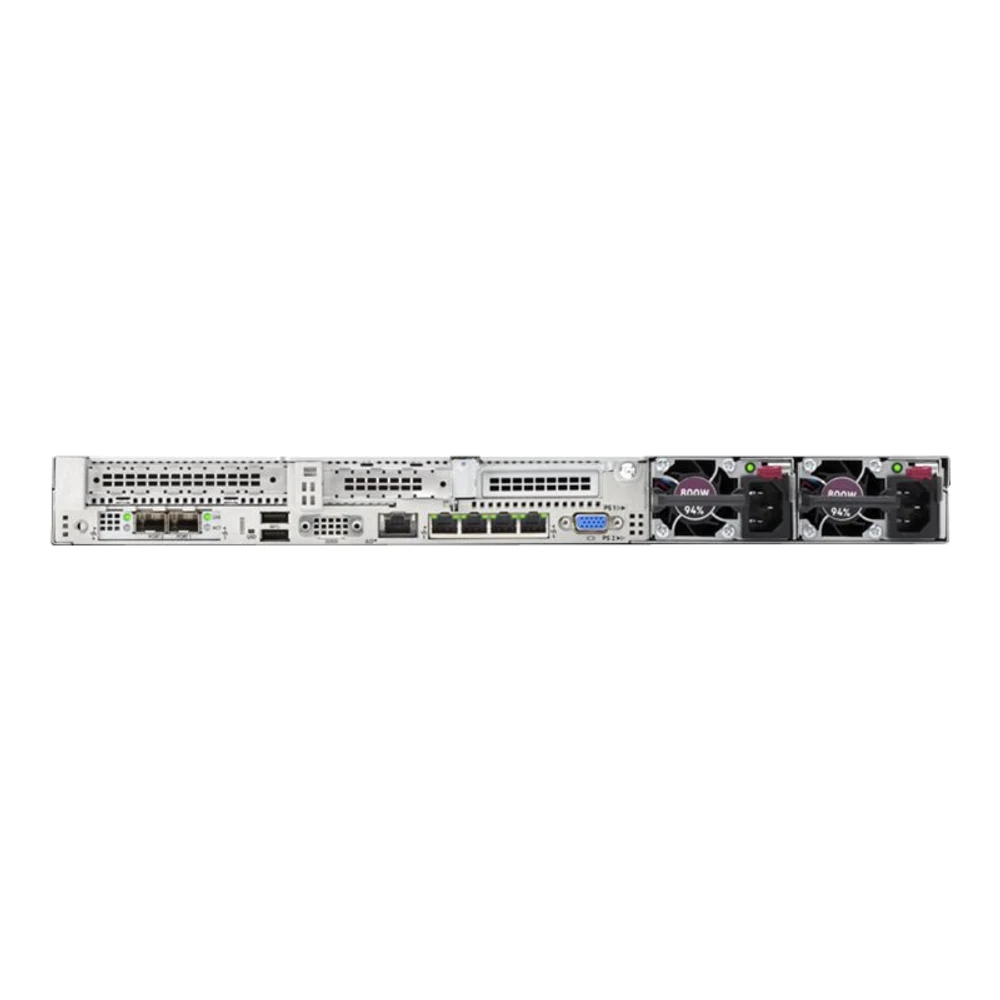

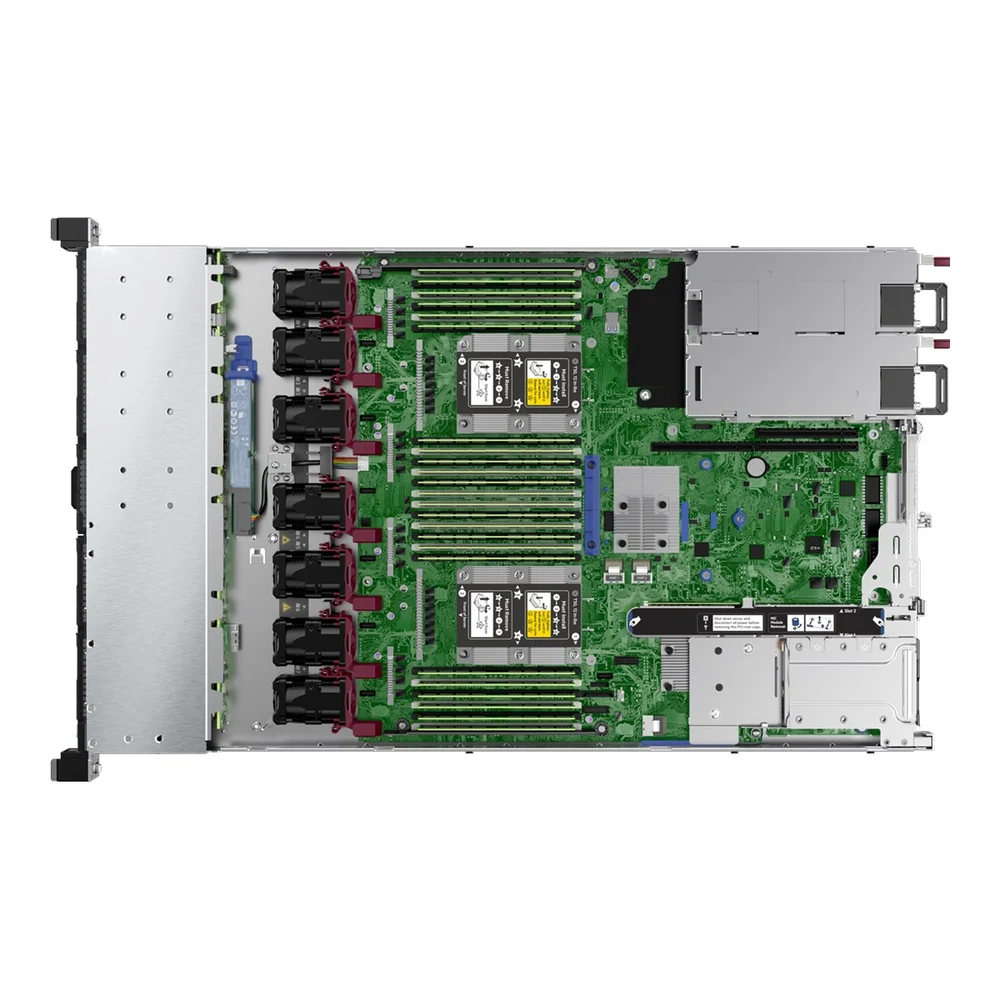

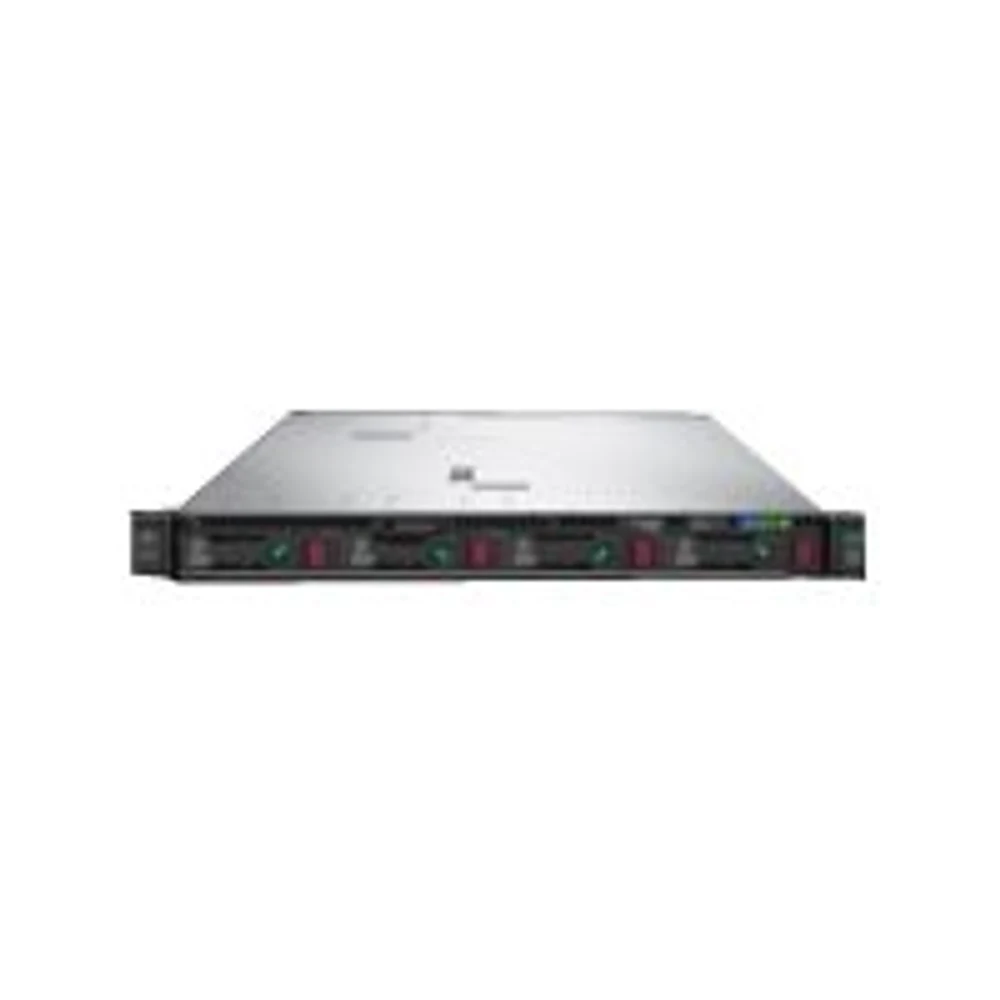

NEC DL360 Gen10 4LFF CTO Svr
hpeSPT-92DF83C8582625

NEC DL360 Gen10 4LFF CTO Svr

R 51 750
Available to order
3–7 day delivery

New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).

30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

Quantity
1

NEC DL360 Gen10 4LFF CTO Svr.

General — Type: Server. Product Form Factor: Rack-mountable - 1U. Built-in Devices: Led panel. Server Scalability: 2-way. Hot-Swap Bays Qty: 4. Localisation: Region: Worldwide. CPU: No CPU. Max CPU Qty: 2.

Specifications

CPU
No CPU

Highlights

  • 1U rack-mountable chassis with 4 hot-swap 3.5-inch LFF drive bays
  • Dual FCLGA3647 socket architecture supporting up to 2 processors
  • 24 DDR4 DIMM slots supporting up to 3 TB of memory
  • Integrated HPE Smart Array S100i SR SATA storage controller
  • Embedded quad-port Gigabit Ethernet and HPE iLO 5 remote management
  • Support for optional redundant hot-plug power supplies

Networking

Ethernet Ports
4 x Gigabit Ethernet
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support

Power

Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
0
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)

General

Type
Server
Product Form Factor
Rack-mountable - 1U
Built-in Devices
Led panel
Server Scalability
2-way
Hot-Swap Bays Qty
4
Localisation
Region: Worldwide

Card Reader

Type
Card reader
Supported Flash Memory Cards
microSD

Dimensions & Weight

Width
43.46 cm
Depth
70.7 cm
Height
4.29 cm
Weight
13.04 kg

Environmental Parameters

Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)
Sound Emission
38.1 dBA

Expansion / Connectivity

Bays
1 (total) / 1 (free) x external Universal Media Bay
Bays
4 (total) / 4 (free) x hot-swap 3.5" LFF
Slots
1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height
Slots
1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile
Slots
1 (total) / 1 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile)
Slots
1 (total) / 1 (free) x microSD Card (internal)
Slots
1 (total) / 1 (free) x PCIe x16 - full-height
Interfaces
1 x HPE iLO - Type A (1 in front)
Interfaces
1 x HPE iLO - RJ-45 (1 rear)
Interfaces
5 x USB 3.0 (1 front, 2 rear, 2 internal)
Interfaces
1 x VGA (1 rear)
Interfaces
4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear)

Graphics Controller

Video Memory
16 MB
Video Interfaces
VGA

Hard Drive

Type
No HDD

Miscellaneous

Compliant Standards
AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Pricing Type
CTO

Monitor

Monitor Type
None.

Operating System / Software

OS Certified
CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, ClearOS

Optical Storage

Type
No optical drive

Processor / Chipset

CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
FCLGA3647 Socket
Chipset Type
Intel C621

RAM

Installed Size
0 GB / 3 TB (max)
Technology
DDR4 SDRAM - Advanced ECC
Form Factor
DIMM 288-pin
Slots
24 (Total) / 24 (empty)
Features
Registered, Load-Reduced DIMM (LRDIMM)
RAM Supported
3 TB Load-Reduced - ECC
RAM Supported
1.5 TB registered - ECC
RAM Supported
192 GB Non-Volatile - ECC

Storage Controller

Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Storage Controller Name
HPE Smart Array S100i SR Software
Channel Qty
14

Related Products

iPhone 17E Silicone Case with MagSafe - Black
Apple

iPhone 17E Silicone Case with MagSafe - Black

3–7 day delivery
R 1 220Available
Apple Power Adapter Extension Cable
Apple

Apple Power Adapter Extension Cable

3–7 day delivery
R 459Available
Sold out
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
rct

RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount

3–7 day delivery
R 260Sold Out
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
zebra

Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking

Ships in 10–15 business days
R 3 920Available

The NEC DL360 Gen10 4LFF CTO is a 1U rack-mountable configure-to-order barebone server designed for enterprise data centres and custom IT deployments. Featuring dual FCLGA3647 processor sockets, 24 DDR4 DIMM slots supporting up to 3 TB of RAM, and four 3.5-inch hot-swap drive bays, it provides a flexible foundation for tailored compute and storage configurations.

Frequently asked questions

What components are included with this CTO server?

The NEC DL360 Gen10 4LFF CTO is a configure-to-order base chassis that comes without pre-installed CPUs, RAM, storage drives, or power supplies. It includes the 1U chassis, motherboard with dual FCLGA3647 sockets, 24 DIMM slots, four 3.5-inch LFF hot-swap drive bays, and embedded HPE iLO 5 management.

What operating systems are supported on this DL360 Gen10 server?

This server is certified for several enterprise operating systems, including Microsoft Windows Server 2012 R2 and 2016, VMware vSphere 6.0 and 6.5 (ESXi), Red Hat Enterprise Linux, SuSE Linux Enterprise Server, CentOS, and ClearOS.

Does this server come with a warranty in South Africa?

Yes, this server base is covered by a local South African warranty through Server Hub. It is dispatched locally with all orders priced and invoiced in South African Rand.
