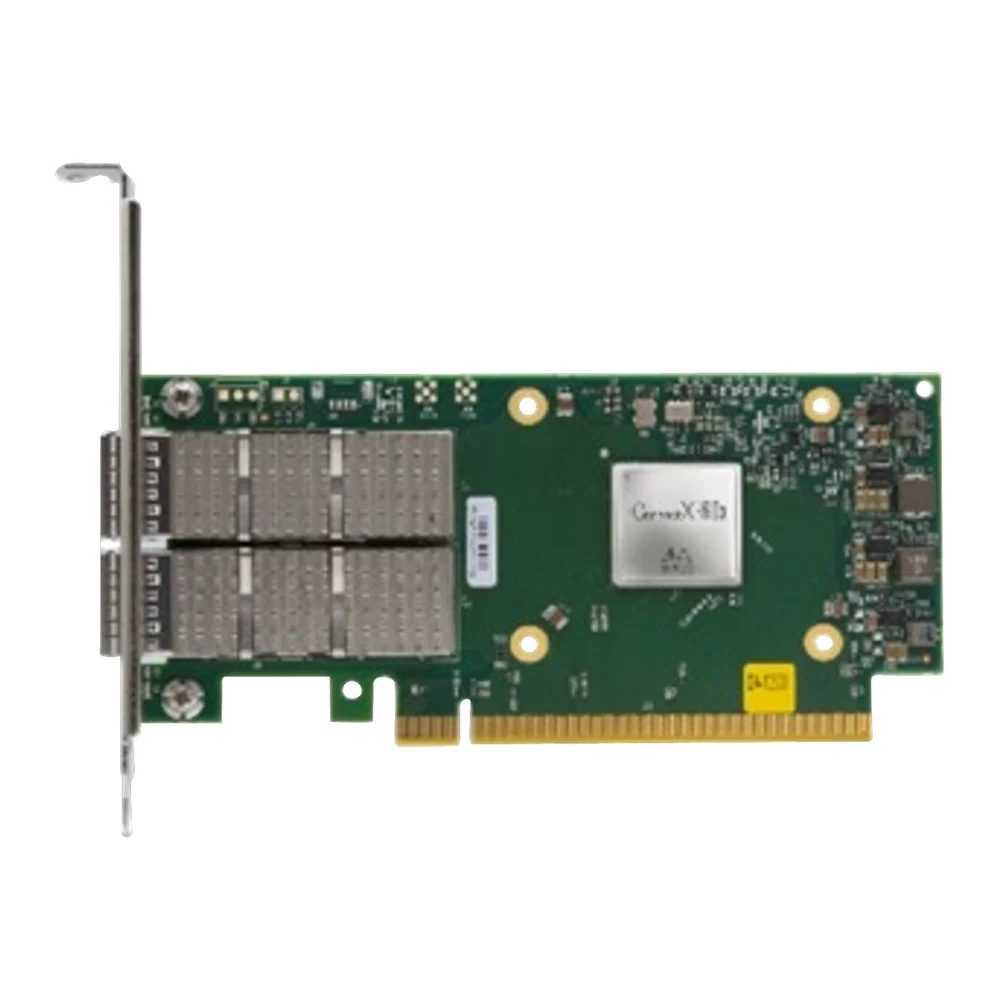

MLX MCX623106AS 100GbE 2p QSFP56 Adptr
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
MLX MCX623106AS 100GbE 2p QSFP56 Adptr.
Device Type: Network adapter. Form Factor: Plug-in card. Interface (Bus) Type: PCI Express 4.0 x16. PCI Specification Revision: PCIe 4.0. Ports: 100 Gigabit QSFP56 x 2. Connectivity Technology: Wired. Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet. Data Transfer Rate: 100 Gbps.
Specifications
Highlights
- Dual 100 Gigabit Ethernet QSFP56 ports
- High-speed PCI Express 4.0 x16 plug-in interface
- Data transfer rate up to 100 Gbps per port
- Hardware offloads for RoCE v2, iWARP, VXLAN, and NVGRE
- Supports SR-IOV, DPDK, and secure boot with hardware root of trust
- Low operational power consumption of 13 Watts
Networking
- Ports
- 100 Gigabit QSFP56 x 2
- Connectivity Technology
- Wired
- Data Link Protocol
- Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet
- Data Transfer Rate
- 100 Gbps
- Network / Transport Protocol
- iSCSI, IPv4, IPv6
- Features
- RDMA support, PXE support, Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), RDMA over Converged Ethernet (RoCE), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2, iWARP support, secure boot, Mware NetQueue and Microsoft Virtual Machine Queue (VMQ), Data Plane Development Kit (DPDK), audit logs, tunnel offload, GENEVE support, hardware root of trust
Power
- Power Consumption Operational
- 13 Watt
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 4.0 x16
- PCI Specification Revision
- PCIe 4.0
Compatibility Information
- Designed For
- HPE Edgeline e920d
- Designed For
- HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus
- Designed For
- HPE ProLiant DL110 Gen10 Plus Front Cabled Telco, DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka BAse Tracking, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus Base, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, D
Expansion / Connectivity
- Interfaces
- 2 x 100Gb Ethernet - QSFP56
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE MLX MCX623106AS is a dual-port 100GbE QSFP56 PCI Express 4.0 x16 network adapter card designed for enterprise servers and data centres. Built for high-bandwidth workloads, it supports protocols including RoCE v2, iWARP, and SR-IOV across compatible HPE ProLiant Gen10 Plus and Edgeline systems requiring ultra-fast, low-latency 100 Gbps network connectivity.
Frequently asked questions
What servers are compatible with the HPE MCX623106AS network adapter?
- This plug-in adapter is designed for compatible HPE systems including HPE ProLiant DL325 Gen10 Plus, DL360 Gen10 Plus, DL345 Gen10 Plus, DL110 Gen10 Plus, and HPE Edgeline e920d servers. It installs via an available PCIe 4.0 x16 slot.
What network speeds and protocols does this adapter support?
- The adapter features two QSFP56 ports supporting Ethernet speeds from 1 GbE up to 100 GbE. It also supports advanced networking protocols including RoCE, RoCE v2, iWARP, iSCSI, IPv4, IPv6, VXLAN, and NVGRE.
Does the HPE MCX623106AS come with a warranty in South Africa?
- Yes, this network adapter comes with a local South African warranty backed directly by Server Hub. Orders are dispatched locally with full support for enterprise server hardware.
