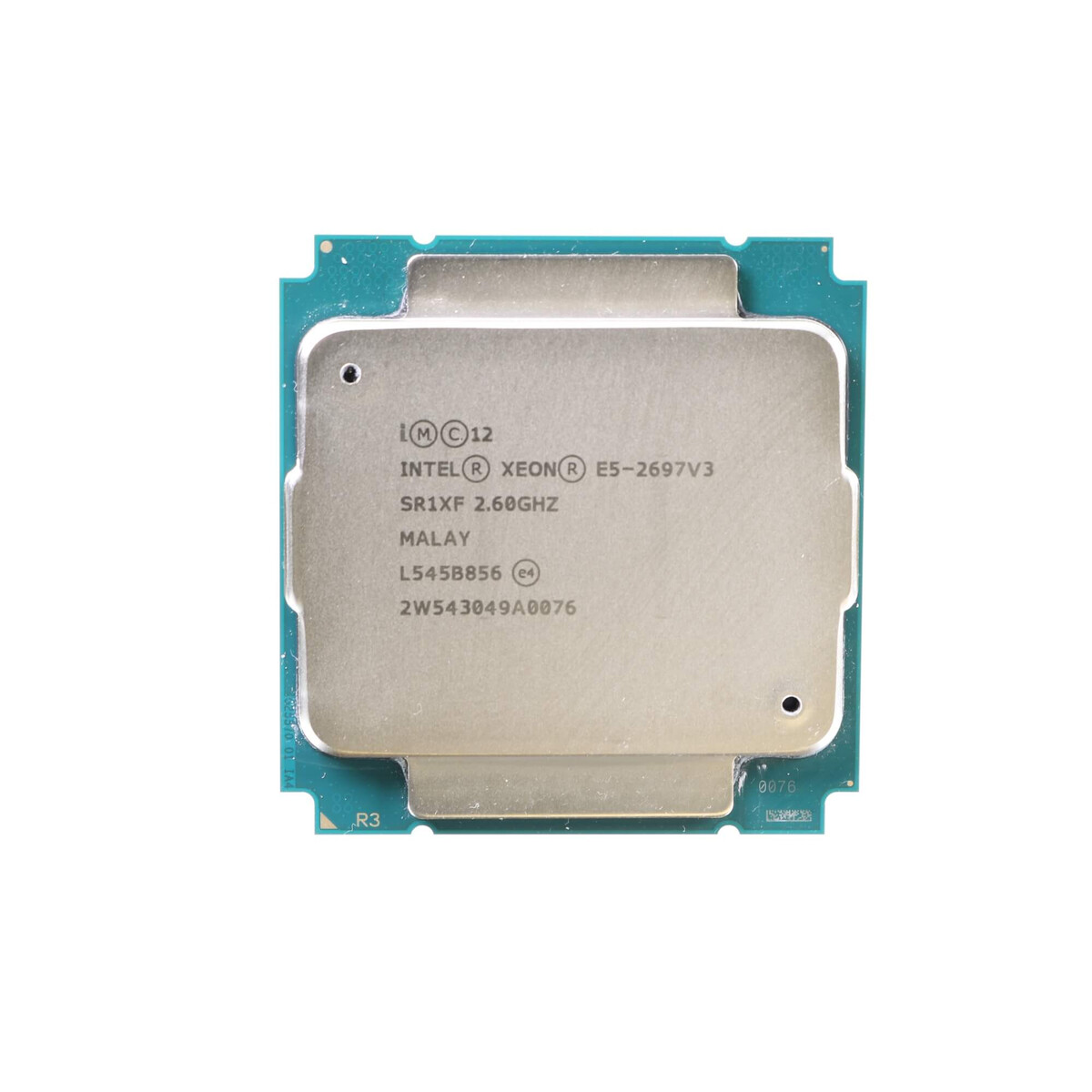

Intel Xeon E5-2697 v3 14-Core 2.60GHz Server Processor
Pay by EFT — we confirm availability with our supply partner before you pay.
Certified RefurbishedCertified Refurbished: 12-month Server Hub limited warranty, return-to-base.
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
The Intel Xeon E5-2697 v3 has 14 cores and 28 threads, a 2.60GHz base clock with boost to 3.60GHz, 35MB of cache and a 145W TDP. It belongs to the Intel Xeon E5-2600 V3 Processors family and fits LGA2011 3, with support for up to 768GB of memory at 2133MHz DDR4.
The base clock is the figure to plan on; boost is opportunistic, when power and cooling allow. The operating system sees 28 logical processors when multithreading is on. Check the heatsink is rated for 145W; some servers come with a smaller heatsink for lower-power processors. Clean off old thermal compound and apply fresh paste when fitting it. The S-spec code SR1XF identifies the exact processor stepping. Adding a second processor also opens up the memory channels and PCIe lanes attached to that socket. In a two-socket server both processors must be the same model; check the server's supported processor list, BIOS level and heatsink rating for a 145W part before fitting.
Certified refurbished condition: the part is inspected, bench-tested and function-checked in Johannesburg.
Specifications
- Maximum memory
- 768GB
Highlights
- Xeon E5-2697 v3, 14 cores / 28 threads
- 2.60GHz base, 3.60GHz boost
- 35MB cache, 145W TDP
- LGA2011 3, Intel Xeon E5-2600 V3 Processors
- Certified refurbished, bench-tested in Johannesburg
Processor
- Cores
- 14
- Threads
- 28
- Base clock
- 2.60GHz
- Boost clock
- 3.60GHz
- Socket
- LGA2011 3
Memory
- Maximum memory
- 768GB
- Memory support
- 2133MHz DDR4
Condition
- Condition
- Certified refurbished
General
- Type
- Server processor
- Brand
- Intel
- Product line
- Xeon E5-2697 v3
- Cache
- 35MB
- TDP
- 145W
- Platform
- Intel Xeon E5-2600 V3 Processors
- S-spec
- SR1XF
Related Products
Huawei S4875 1U 4000W High Efficiency Solar Module
APNX V1 Mid Tower Case, White and Wood
Aerocool Oasis L360 White 360mm ARGB Liquid Cooler
SRGZ9 Intel Xeon Gold 6238R 2.20Ghz 28-Core 165W Cascade Lake Processor LGA 3647
Frequently asked questions
Which socket and platform does this processor use?
- LGA2011 3, Intel Xeon E5-2600 V3 Processors. In a two-socket server both processors should be the same model.
What condition is this server processor in?
- Certified refurbished: it is inspected and bench-tested in Johannesburg before release.
