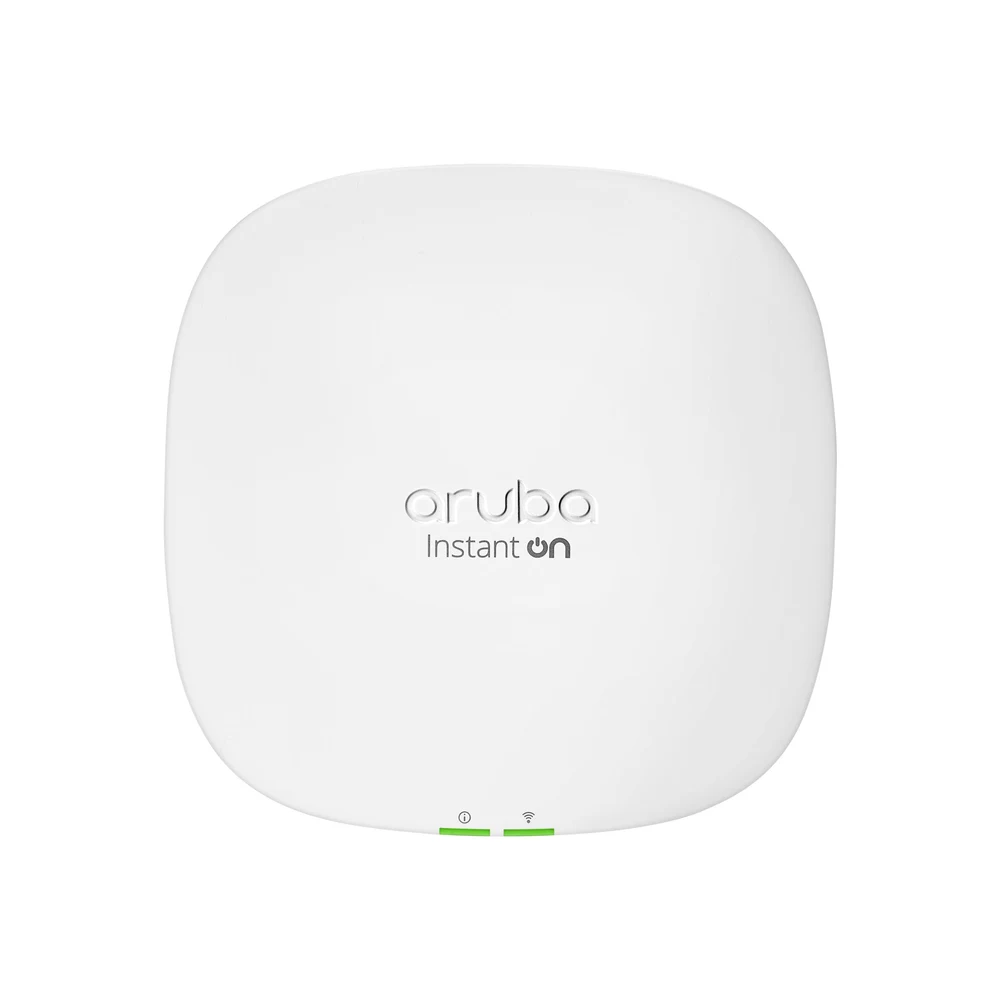

Instant On AP25 (US) 4x4 Wi-Fi 6 AP
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Instant On AP25 (US) 4x4 Wi-Fi 6 AP.
Device Type: Radio access point. Ruggedized Design: Indoor. Width: 20.3 cm. Height: 5.1 cm. Weight: 1.18 kg. Form Factor: Wall / ceiling mountable. Connectivity Technology: Wireless. Data Link Protocol: Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6).
Specifications
Highlights
- Dual-band Wi-Fi 6 with 4x4:4 MU-MIMO and OFDMA support
- Maximum data rates of 4.8 Gbps on 5 GHz and 574 Mbps on 2.4 GHz
- 1 x 2.5GBase-T PoE RJ-45 uplink network port
- Enhanced security with WPA2 and WPA3 encryption protocols
- Integrated Bluetooth Low Energy (BLE) IoT support
- Wall and ceiling mountable with included rail mounting clip
Networking
- Form Factor
- Wall / ceiling mountable
- Connectivity Technology
- Wireless
- Data Link Protocol
- Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Spread Spectrum Method
- OFDMA
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum data rate (5 GHz): 4.8 Gbps
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps
- Status Indicators
- Status, reset
- Features
- Wall mountable, reset button, security lock slot (cable lock sold separately), MU-MIMO technology, 4x4:4 MU-MIMO technology, security slot (Kensington security lock compatible), Bluetooth (BLE) clients support, Orthogonal Frequency Division Multiple Access (OFDMA), Target Wait Time (TWT), 160MHz bandwidth support
- Encryption Algorithm
- WPA2, WPA3
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Power
- Power Over Ethernet (PoE) Supported
- PoE
General
- Device Type
- Radio access point
- Ruggedized Design
- Indoor
- Width
- 20.3 cm
- Height
- 5.1 cm
- Weight
- 1.18 kg
Aerial
- Antenna
- Internal
- Antenna Qty
- 2
- Directivity
- Omni-directional
- Gain Level
- 4.55 dBi
Expansion / Connectivity
- Interfaces
- 1 x 2.5GBase-T (uplink, PoE) - RJ-45
Internet of Things (IoT)
- Internet of Things (IoT) Compatible
- Yes
- Communications Technology
- Bluetooth Low Energy (LE)
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
- Service & Support
- Technical support - phone consulting - 90 days from date of purchase
- Service & Support
- Technical support - web support - 2 years
Miscellaneous
- Included Accessories
- Wall/ceiling rail mounting clip
- Cables Included
- 1 x network cable
- Compliant Standards
- EN 60601-1-2, EN 60601-1-1, WFA
Software / System Requirements
- Software Included
- InstantOn
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE Instant On AP25 is a dual-band indoor Wi-Fi 6 radio access point designed for high-density business networking. Featuring 4x4:4 MU-MIMO, OFDMA technology, a 2.5GBase-T PoE uplink, and speeds up to 4.8 Gbps on the 5 GHz band, it delivers fast, secure wireless coverage suitable for offices and commercial spaces.
Frequently asked questions
What is the HPE Instant On AP25 used for?
- The HPE Instant On AP25 is an indoor wireless access point used to provide high-speed Wi-Fi 6 connectivity to multiple client devices. It handles demanding traffic environments using 4x4:4 MU-MIMO, 160MHz channel bandwidth, and a fast 2.5GBase-T uplink.
How is the HPE Instant On AP25 powered and mounted?
- The unit supports Power over Ethernet (PoE) via its 2.5GbE RJ-45 interface, simplifying deployment without requiring a direct mains connection. It includes a dedicated mounting clip for attachment to walls or ceiling rails.
Does the HPE Instant On AP25 come with a warranty?
- Yes, this access point includes a 2-year limited warranty supported locally in South Africa via Server Hub. Technical web support is included for 2 years alongside 90 days of phone consulting from the date of purchase.
