HT DL380 Gen10+ 8SFF NC CTO Server
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

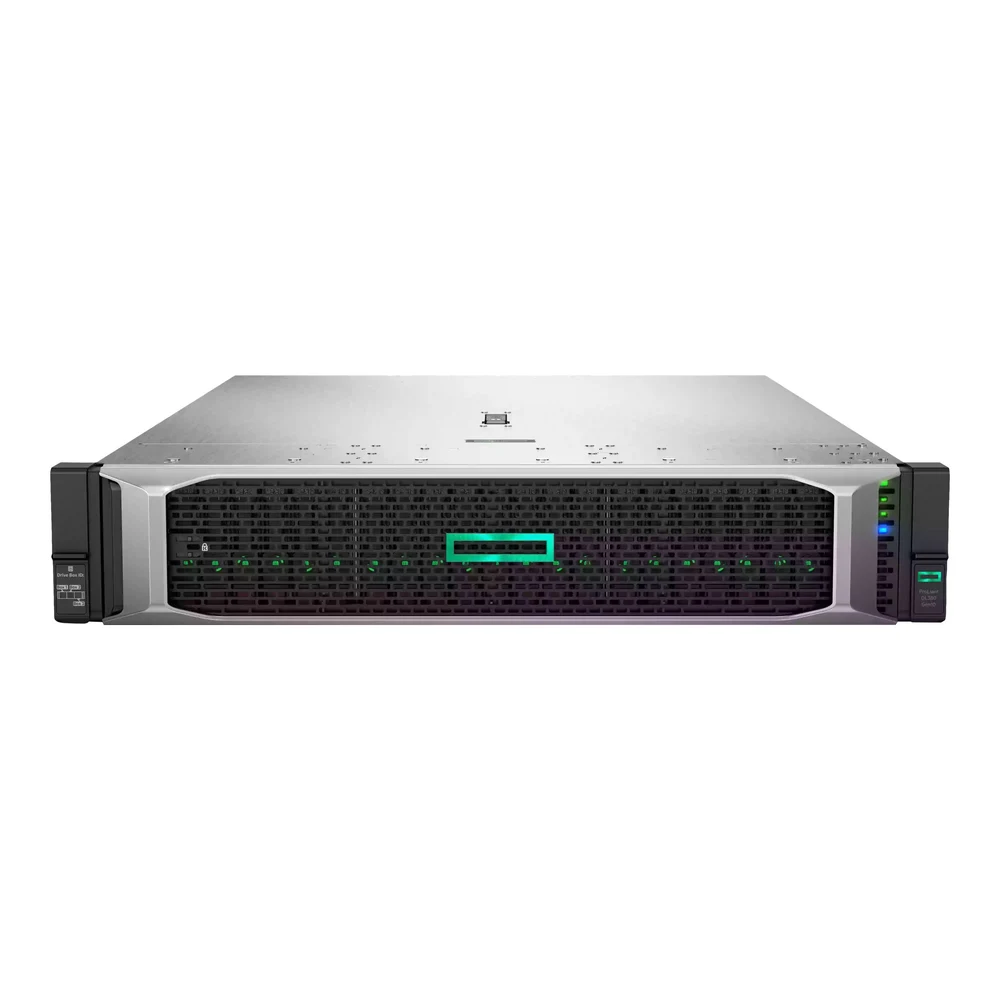

HT DL380 Gen10+ 8SFF NC CTO Server.
General — Type: Server. Product Form Factor: Rack-mountable - 2U. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. CPU: No CPU. Max CPU Qty: 2. CPU Upgradability: Upgradable. Chipset Type: Intel C620A.
Specifications
- CPU
- No CPU
Highlights
- 2U rack-mountable chassis with Intel C620A chipset
- Supports up to 2 processors with 2-way scalability
- 32 DIMM slots supporting up to 2 TB DDR4 SDRAM
- 8 hot-swap 2.5-inch SFF drive bays
- PCIe 4.0 expansion slots and dedicated HPE iLO ports
- ENERGY STAR 3.0 certified with 3-year limited warranty
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 2U
- Server Scalability
- 2-way
- Hot-Swap Bays Qty
- 8
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
Expansion / Connectivity
- Bays
- 8 (total) / 8 (free) x hot-swap 2.5" SFF
- Slots
- 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height
- Slots
- 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x8 mode)
- Slots
- 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height (x8 mode)
- Slots
- 1 (total) / 1 (free) x microSD Card
- Interfaces
- 1 x HPE iLO - RJ-45
- Interfaces
- 1 x USB 3.0
- Interfaces
- 1 x HPE iLO (service port)
- Interfaces
- 1 x DisplayPort (1 in front)
- Interfaces
- 1 x VGA
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA, DisplayPort
Hard Drive
- Type
- No HDD
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Miscellaneous
- Compliant Standards
- AES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2
- Pricing Type
- CTO
Monitor
- Monitor Type
- None.
Optical Storage
- Type
- No optical drive
Processor / Chipset
- CPU
- No CPU
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- Chipset Type
- Intel C620A
RAM
- Installed Size
- 0 GB / 2 TB (max)
- Technology
- DDR4 SDRAM
- Form Factor
- DIMM 288-pin
- Slots
- 32 (Total) / 32 (empty)
- Features
- Registered, HP SmartMemory, 8-channel memory architecture, slots 17 - 32 are available in two-processor configuration only
Storage Controller
- Channel Qty
- 14
Sustainability Information
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 3.0
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE DL380 Gen10+ 8SFF NC CTO Server is a 2U rack-mountable, dual-socket server chassis designed for custom enterprise deployments. Supplied as a configure-to-order base without CPU or storage pre-installed, it accommodates up to two processors, 32 DDR4 DIMM slots supporting up to 2 TB of memory, and eight hot-swap 2.5-inch drive bays.
Frequently asked questions
What is the HPE DL380 Gen10+ CTO server used for?
- The HPE DL380 Gen10+ is an enterprise-grade 2U rack server built for scalable data centre workloads and virtualisation. As a Configure-To-Order (CTO) model, it provides a bare-metal foundation that allows administrators to specify compatible processors, memory, and storage according to their exact workload demands.
Does this server come with processors and storage installed?
- No, this base CTO unit is supplied without pre-installed CPUs, memory, or storage drives. It features two processor sockets, 32 DDR4 memory slots, and eight 2.5-inch hot-swap drive bays ready for custom hardware installation.
Does the HPE DL380 Gen10+ come with a warranty?
- Yes, this server comes with a 3-year limited warranty supported locally in South Africa through Server Hub. Orders are invoiced and priced in South African rand.
