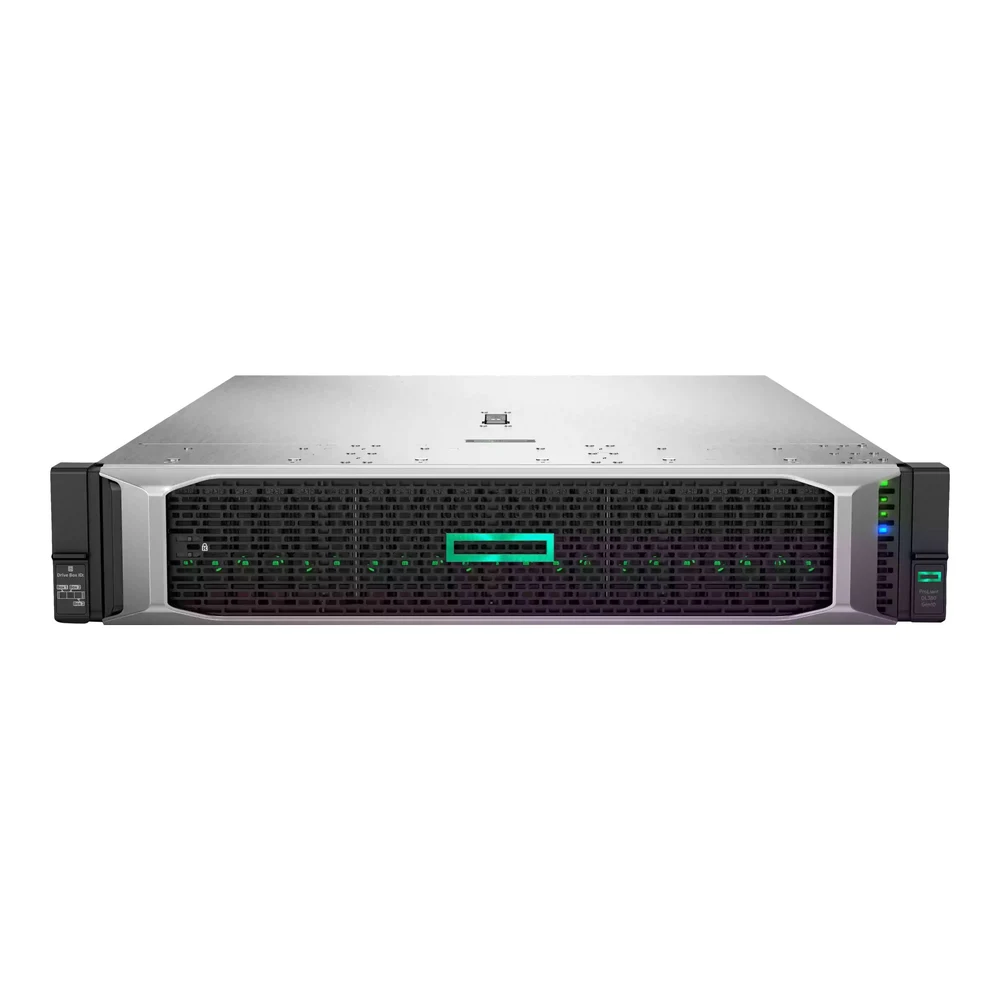

HT DL380 Gen10+ 8LFF NC CTO Server
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HT DL380 Gen10+ 8LFF NC CTO Server.
General — Type: Server. Product Form Factor: Rack-mountable - 2U. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. CPU: No CPU. Max CPU Qty: 2. CPU Upgradability: Upgradable. Installed Size: 0 GB / 2 TB (max).
Specifications
- CPU
- No CPU
Highlights
- 2U rack-mountable 2-way scalable server chassis
- Dual CPU support for upgradable processor configurations
- 32 DDR4 DIMM slots supporting up to 2 TB memory
- 8 hot-swap 3.5-inch LFF drive bays
- PCIe 4.0 expansion slots and embedded HPE iLO management
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 2U
- Server Scalability
- 2-way
- Hot-Swap Bays Qty
- 8
Dimensions & Weight
- Width
- 44.54 cm
- Depth
- 74.9 cm
- Height
- 8.75 cm
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
Expansion / Connectivity
- Bays
- 8 (total) / 8 (free) x hot-swap 3.5" LFF
- Slots
- 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height
- Slots
- 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x8 mode)
- Slots
- 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height (x8 mode)
- Interfaces
- 1 x HPE iLO - RJ-45
- Interfaces
- 1 x USB 3.0
- Interfaces
- 1 x HPE iLO (service port)
Graphics Controller
- Video Memory
- 16 MB
Hard Drive
- Type
- No HDD
Miscellaneous
- Compliant Standards
- AES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2
- Pricing Type
- CTO
- TAA Compliant
- Yes
Monitor
- Monitor Type
- None.
Operating System / Software
- Software
- HPE iLO Standard with Intelligent Provisioning
Optical Storage
- Type
- No optical drive
Processor / Chipset
- CPU
- No CPU
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
RAM
- Installed Size
- 0 GB / 2 TB (max)
- Technology
- DDR4 SDRAM
- Form Factor
- DIMM 288-pin
- Slots
- 32 (Total) / 32 (empty)
- Features
- Registered, HP SmartMemory, 8-channel memory architecture, slots 17 - 32 are available in two-processor configuration only
Sustainability Information
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 3.0
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE DL380 Gen10+ 8LFF NC CTO Server is a 2U rack-mountable, 2-way barebone server chassis designed for custom enterprise deployments. Featuring eight 3.5-inch hot-swap drive bays, dual-processor scalability, and 32 DDR4 DIMM slots supporting up to 2 TB of memory, it provides a highly configurable foundation for businesses building bespoke data centre workloads.
Frequently asked questions
What does CTO mean for this HPE DL380 Gen10+ server?
- CTO stands for Configure-To-Order. This barebone chassis comes without pre-installed CPUs, RAM, or storage drives, allowing you to tailor processors, memory, and disks to your specific workload requirements.
What storage and memory capacity does this server support?
- The server accommodates up to 2 TB of DDR4 SDRAM across 32 DIMM slots using an 8-channel memory architecture. It also provides eight 3.5-inch large form factor (LFF) hot-swap drive bays for internal storage.
Does this server come with a local warranty?
- Yes, this server includes a local South African warranty provided via Server Hub. All purchases are priced in rand with dedicated local support.
