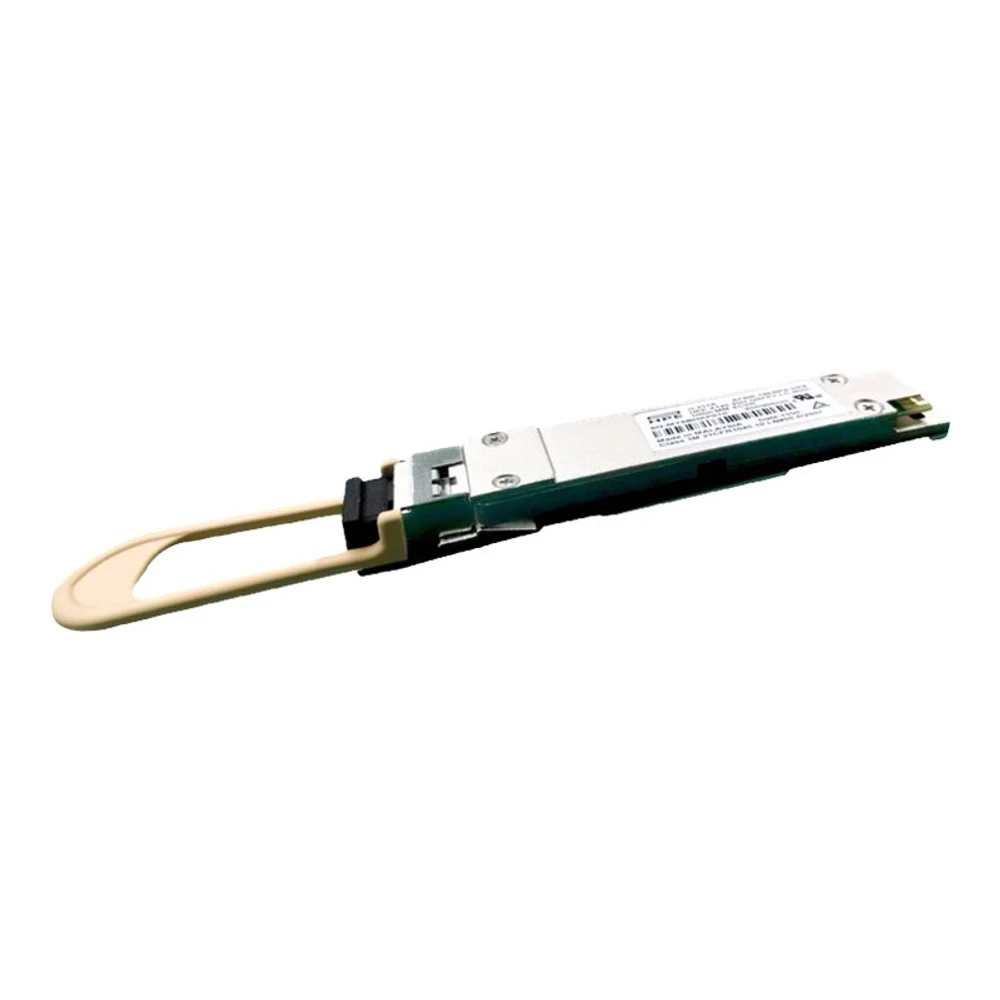

HPE X150 100G QSFP28 BiDi 100m MM XCVR
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE X150 100G QSFP28 BiDi 100m MM XCVR.
Device Type: QSFP28 transceiver module. Form Factor: Plug-in module. Connectivity Technology: Wired. Cabling Type: 100GBASE-BiDi. Data Link Protocol: 100GbE. Data Transfer Rate: 100 Gbps. Max Transfer Distance: 100 m. Interfaces: 1 x Ethernet 100GBASE-BiDi - LC multi-mode.
Specifications
Highlights
- QSFP28 plug-in transceiver module form factor
- 100 Gbps data transfer rate over 100GBASE-BiDi cabling
- Maximum transfer distance of up to 100 m
- LC multi-mode optical interface connection
- Compatible with select HPE FlexFabric 5710, 5940, and 12900E switches
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 100GBASE-BiDi
- Data Link Protocol
- 100GbE
- Data Transfer Rate
- 100 Gbps
- Max Transfer Distance
- 100 m
General
- Device Type
- QSFP28 transceiver module
- Form Factor
- Plug-in module
Compatibility Information
- Designed For
- HPE FlexFabric 12900E, 5710 24SFP+ 6QS+/2QS28, 5710 24XGT 6QSFP+ or 2QSFP28, 5710 48SFP+ 6QS+/2QS28, 5710 48XGT 6QS+/2QS28, 5940 2-slot, 5940 32QSFP+, 5940 48SFP+ 6QSFP+, 5940 48SFP+ 6QSFP28, 5940 48XGT 6QSFP+, 5940 48XGT 6QSFP28, 5940 4-slot
Dimensions & Weight
- Width
- 1.8 cm
- Depth
- 12.2 cm
- Height
- 1.3 cm
- Weight
- 49.9 g
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 100GBASE-BiDi - LC multi-mode
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
- Service & Support
- Limited warranty - replacement - 30 days
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE X150 100G QSFP28 BiDi is a high-speed optical transceiver module engineered for enterprise data centres and core networking. Operating at data transfer rates up to 100 Gbps over multi-mode fibre across distances up to 100 metres, it provides reliable, high-bandwidth connectivity for compatible HPE FlexFabric switch series.
Frequently asked questions
What is the HPE X150 100G QSFP28 BiDi transceiver used for?
- It is used to establish high-speed 100GbE network links in enterprise networks and data centres. It connects compatible switches over multi-mode fibre optic cabling up to a maximum distance of 100 metres.
Which switch models are compatible with this transceiver?
- The module is designed for select HPE FlexFabric models, including units in the FlexFabric 12900E, 5710, and 5940 switch series. Always verify your specific switch model and port specifications before purchasing.
Does this HPE transceiver come with a warranty?
- Yes, it includes standard limited warranty coverage. When purchasing through Server Hub, you receive local South African warranty support and assistance.
