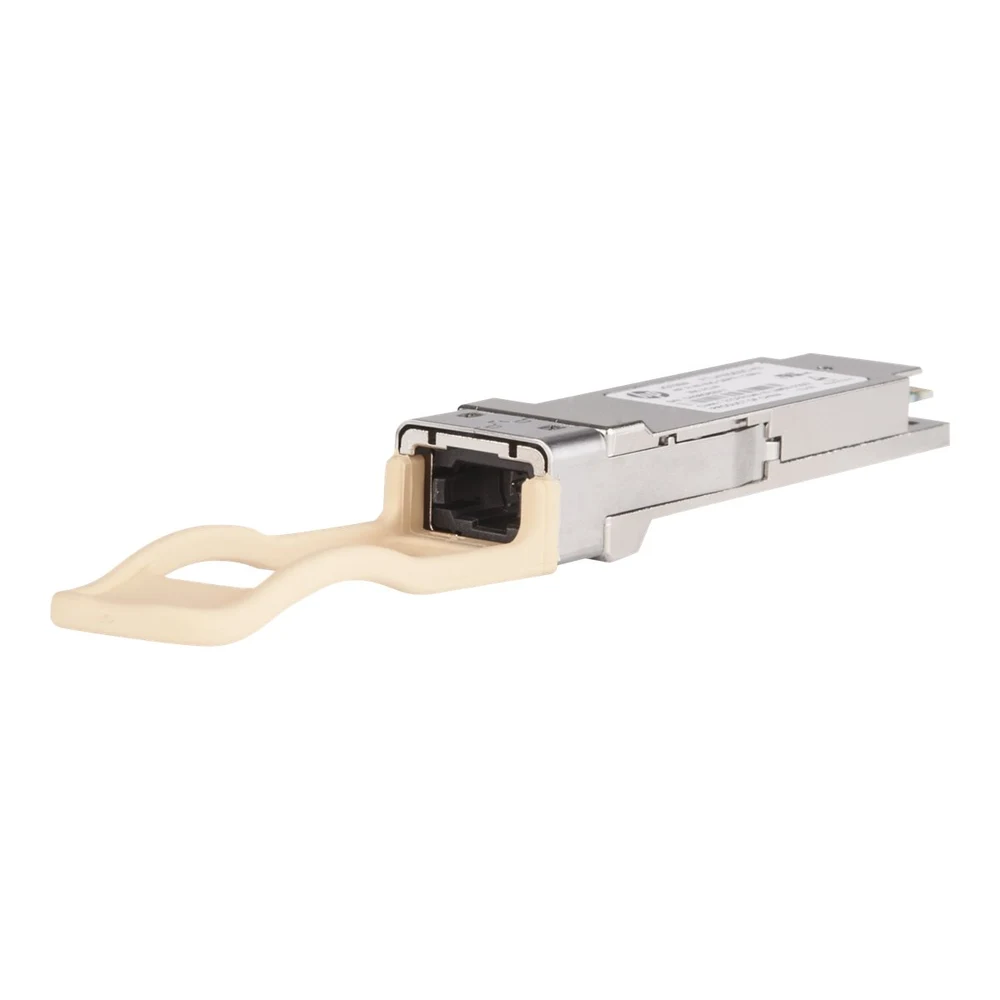

HPE X142 40G QSFP+ MPO SR4 Transceiver
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE X142 40G QSFP+ MPO SR4 Transceiver.
Device Type: QSFP+ transceiver module. Form Factor: Plug-in module. Connectivity Technology: Wired. Cabling Type: 40GBASE-SR4. Data Link Protocol: 40 Gigabit LAN. Data Transfer Rate: 40 Gbps. Optical Wave Length: 850 nm. Max Transfer Distance: 100 m.
Specifications
Highlights
- 40 Gbps data transfer rate for 40 Gigabit LAN connections
- 40GBASE-SR4 cabling interface with MPO multi-mode female connector
- Maximum transmission range of up to 100 metres
- 850 nm operating optical wavelength
- Designed for select HPE Aruba and CX series switches
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 40GBASE-SR4
- Data Link Protocol
- 40 Gigabit LAN
- Data Transfer Rate
- 40 Gbps
- Optical Wave Length
- 850 nm
- Max Transfer Distance
- 100 m
General
- Device Type
- QSFP+ transceiver module
- Form Factor
- Plug-in module
Compatibility Information
- Designed For
- HPE Aruba 2930M 24 Smart Rate POE+ 1-Slot, 8325-32C, 8325-48Y8C
- Designed For
- HPE Aruba CX 10000 Empty Chassis, 8360-12C V2, 8360-16Y2C V2
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 40GBASE-SR4 - MPO multi-mode female
Related Products
Mellanox ConnectX-3 CX353A-FCBT Single-Port 40GB QSFP+ PCIe 3.0 x8 NIC Half Hght
Teltonika TRB145 LTE Cat1 RS485 Gateway
Teltonika TRB142 LTE Cat 1, 1 x LAN (1 Gbps), RS232 Gateway
Teltonika RUTX12 Cat 6 x 2 Industrial Router,Dual-SIM, Wi-FI 5, 1 x WAN(1 Gbps), 4 x LAN(1 Gbps), MQTT, MODBUS
The HPE X142 40G QSFP+ MPO SR4 Transceiver is a plug-in optical module engineered for high-speed 40 Gigabit LAN connectivity across distances up to 100 metres using multi-mode fibre. Designed for enterprise network environments, it provides reliable 40 Gbps data transfer rates at an 850 nm optical wavelength for compatible HPE and HPE Aruba switches.
Frequently asked questions
What is the maximum reach of the HPE X142 40G QSFP+ transceiver?
- The HPE X142 40G QSFP+ MPO SR4 transceiver supports a maximum transmission distance of up to 100 metres over multi-mode optical fibre. It operates at an optical wavelength of 850 nm utilizing 40GBASE-SR4 cabling.
Which switch models are compatible with this transceiver?
- This transceiver is designed for select HPE Aruba switches, including the Aruba 2930M, 8325-32C, 8325-48Y8C, 8360-12C V2, 8360-16Y2C V2, and the HPE Aruba CX 10000 chassis. Verify your switch slot configuration before installation.
Does the HPE X142 transceiver come with a local warranty?
- Yes, this transceiver module includes a local South African warranty backed by Server Hub. It is priced in South African rand (ZAR) for seamless local purchasing and support.
