HPE Synergy 6810C 25/50Gb Ethernet Adptr
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

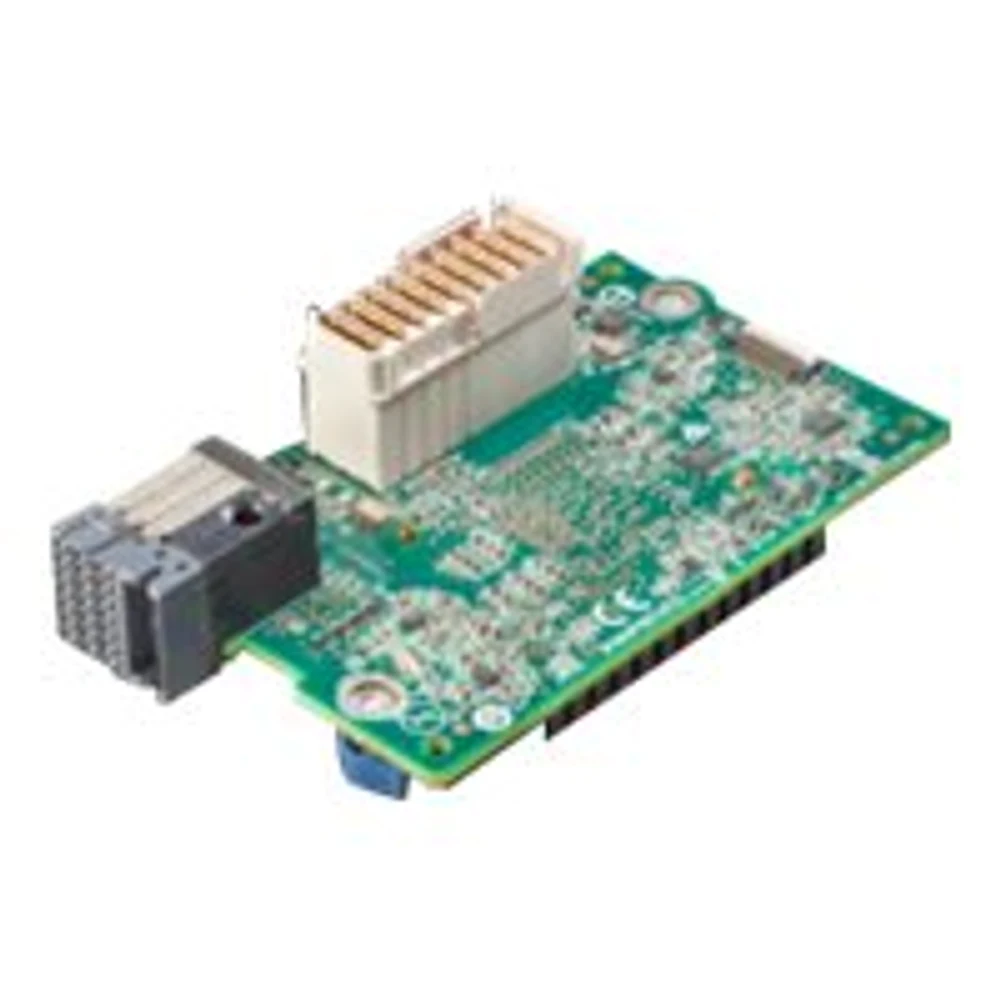

HPE Synergy 6810C 25/50Gb Ethernet Adptr.
Device Type: Network adapter. Form Factor: Plug-in card. Interface (Bus) Type: PCI Express 3.0 x16 Mezzanine. PCI Specification Revision: PCIe 3.0. Ports: 50 Gigabit Ethernet x 2. Connectivity Technology: Wired. Data Link Protocol: 25 Gigabit Ethernet, 50 Gigabit Ethernet. Data Transfer Rate: 50 Gbps.
Specifications
- Processor
- 1 x Cavium QL45604
Highlights
- Dual-port 50Gb Ethernet connectivity supporting 25GbE and 50GbE speeds
- PCI Express 3.0 x16 mezzanine plug-in card form factor
- Powered by an integrated Cavium QL45604 processor
- Hardware offloads including RoCE v2, VXLAN, SR-IOV, and DPDK
- Compatible with select HPE Synergy Gen9 and Gen10 compute modules
Networking
- Ports
- 50 Gigabit Ethernet x 2
- Connectivity Technology
- Wired
- Data Link Protocol
- 25 Gigabit Ethernet, 50 Gigabit Ethernet
- Data Transfer Rate
- 50 Gbps
- Capacity
- Jumbo frame size: up to 9.6 KB
- Features
- Wake on LAN (WOL), Jumbo Frames support, RDMA support, PXE support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Precision Time Protocol (PTP), RDMA over Converged Ethernet (RoCE), Virtual Extensible LAN (VXLAN), RDMA over Converged Ethernet (RoCE) v2, HPE Sea of Sensors 3D, IPv6 acceleration, Mware NetQueue and Microsoft Virtual Machine Queue (VMQ), Data Plane Development Kit (DPDK), iSCSI Extensions over RDMA (iSER), Active Health Systems support, UEFI Secture Boot
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3by, IEEE 802.3-2012
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 3.0 x16 Mezzanine
- PCI Specification Revision
- PCIe 3.0
Compatibility Information
- Designed For
- HPE Synergy 480 Gen10 Base Compute Module, 480 Gen10 Compute Module, 480 Gen10 Entry Compute Module, 480 Gen10 Performance Compute Module, 480 Gen10 Premium Backplane Compute Module, 480 Gen10 Standard BackPlane Compute Module, 480 Gen10 w/o Drives Compute Module, 480 Gen9 Compute Module, 480 Gen9 Expanded Storage Compute Module, 620 Gen9 2S-EX Base Compute Module, 620 Gen9 2S-EX Performance Compute Module, 660 Gen10 Base Compute Module, 660 Gen10 Compute Module, 660 Gen10 Entry Compute Module,
- Designed For
- HPE Synergy 12000 Frame
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 10 - 80% (non-condensing)
Expansion / Connectivity
- Interfaces
- 2 x 50Gb Ethernet
Miscellaneous
- Compliant Standards
- RoHS
Processor / Memory
- Processor
- 1 x Cavium QL45604
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE Synergy 6810C is a dual-port 25/50Gb Ethernet PCIe 3.0 x16 mezzanine network adapter designed for HPE Synergy compute modules and the Synergy 12000 Frame. It delivers high-throughput 50 Gbps connectivity with support for SR-IOV, RoCE, and VXLAN, catering to enterprise data centres running virtualised and network-intensive workloads.
Frequently asked questions
Which systems are compatible with the HPE Synergy 6810C adapter?
- This adapter is designed for the HPE Synergy 12000 Frame ecosystem. It is compatible with select HPE Synergy 480 Gen9, 480 Gen10, 620 Gen9, and 660 Gen10 compute modules.
What network speeds does the HPE Synergy 6810C support?
- The adapter features two ports and supports both 25 Gigabit Ethernet and 50 Gigabit Ethernet data link protocols. It offers a maximum data transfer rate of 50 Gbps to handle high-demand virtualisation and networking environments.
Does this network adapter come with a warranty?
- Yes, orders placed with Server Hub include a local South African warranty. Our local support team is available to assist should you encounter any hardware issues.
