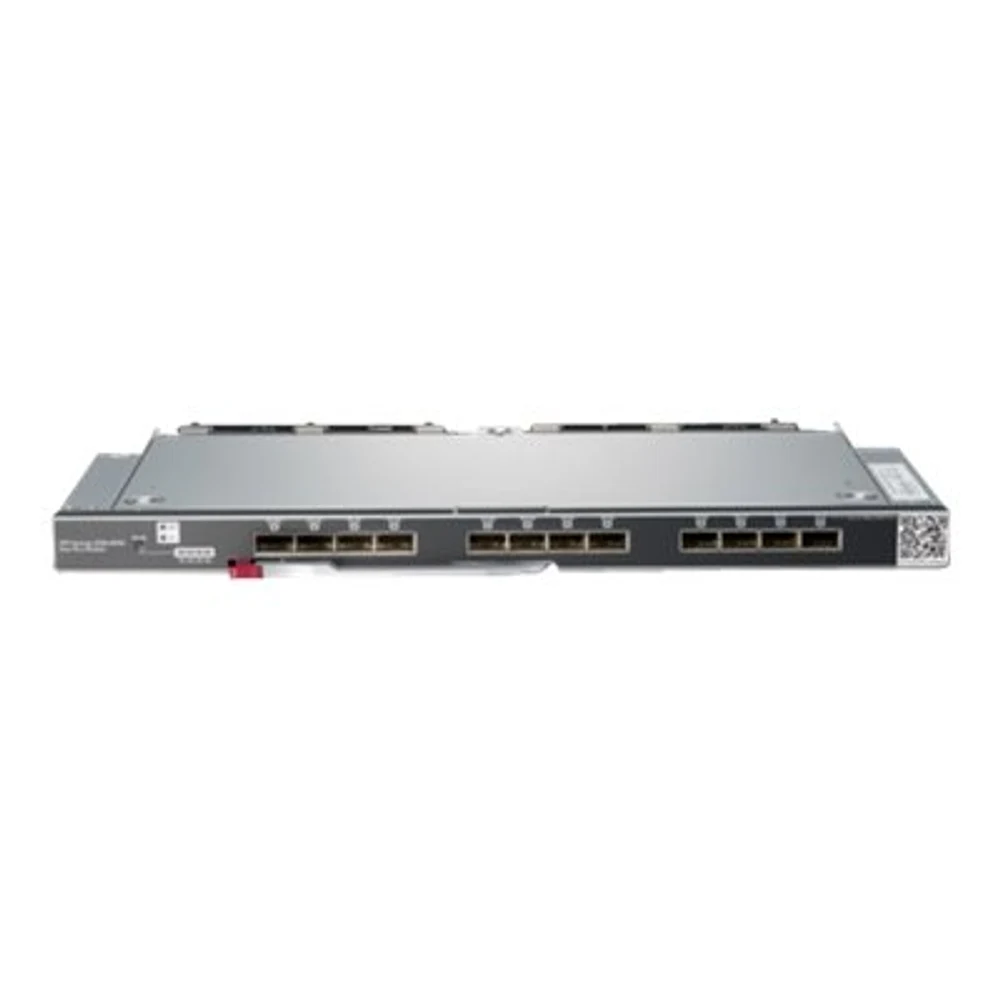

HPE Synergy 10Gb Pass-Thru Module
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE Synergy 10Gb Pass-Thru Module.
Device Type: Network management device. Width: 19.279 cm. Depth: 26.77 cm. Height: 2.794 cm. Weight: 1.6 kg. Form Factor: Rack-mountable. Ports Qty: 12. Connectivity Technology: Wired.
Specifications
Highlights
- Designed specifically for the HPE Synergy 12000 Frame
- 12 x 10Gb Ethernet QSFP+ uplink interfaces
- High throughput with 240 Gbps bandwidth per slot
- Includes 1 dedicated mini-USB management port
- Rack-mountable form factor weighing 1.6 kg
- Energy-efficient operation with 124W power consumption
Networking
- Form Factor
- Rack-mountable
- Ports Qty
- 12
- Connectivity Technology
- Wired
- Data Link Protocol
- 10 Gigabit Ethernet
- Performance
- Bandwidth per slot: 240 Gbps
Power
- Voltage Required
- DC 12 V
- Power Consumption Operational
- 124 Watt
General
- Device Type
- Network management device
- Width
- 19.279 cm
- Depth
- 26.77 cm
- Height
- 2.794 cm
- Weight
- 1.6 kg
Compatibility Information
- Designed For
- HPE Synergy 12000 Frame
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 12 x 10Gb Ethernet (uplink) - QSFP+
- Interfaces
- 1 x mini-USB
Miscellaneous
- Compliant Standards
- IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, Directive 2002/95/EC, VCCI Class A, IEC/UL/CSA/EN 60950-1, EN 55022 Class A
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE Synergy 10Gb Pass-Thru Module is a dedicated 12-port network management device designed for the HPE Synergy 12000 Frame. Built for enterprise data centres requiring straightforward, direct 10 Gigabit Ethernet connectivity, it delivers up to 240 Gbps bandwidth per slot across 12 QSFP+ uplink interfaces without adding complex fabric switching layers.
Frequently asked questions
What is the HPE Synergy 10Gb Pass-Thru Module used for?
- It provides direct, unmanaged 10Gb Ethernet connectivity from compute modules inside an HPE Synergy 12000 Frame to external network switches. This enables clean pass-through connectivity without internal network switching overhead.
Which chassis is this pass-through module compatible with?
- This module is engineered specifically for installation in the HPE Synergy 12000 Frame. It supports 12 QSFP+ 10Gb Ethernet uplink connections directly from the frame.
Does the module come with a South African warranty?
- Yes, orders placed through Server Hub include a local South African warranty. You can purchase online with secure local support and all pricing displayed in ZAR.
