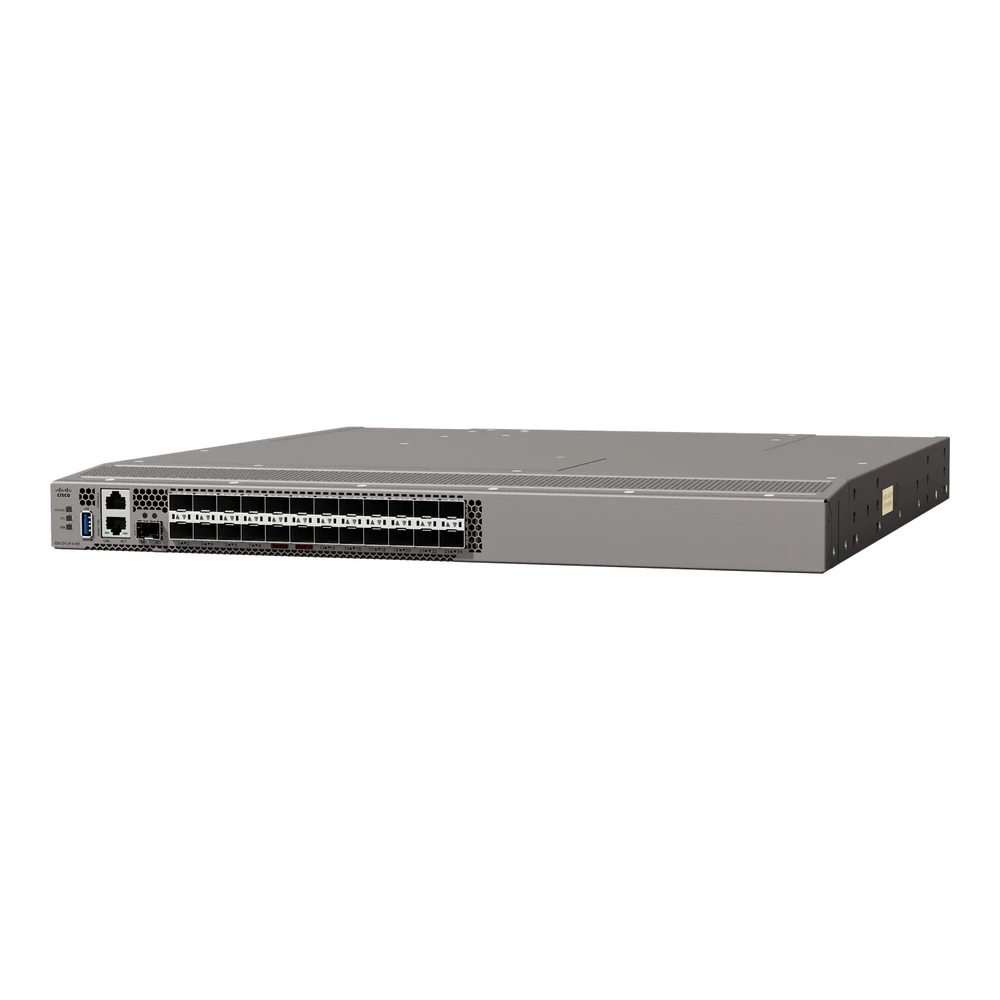

HPE SN6710C 64G 24/24 32G SFP+ FC v2 Sw
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE SN6710C 64G 24/24 32G SFP+ FC v2 Sw.
Device Type: Switch - 24 ports - Managed - with 24x 32 Gbps SW SFP+ transceiver. Enclosure Type: Back to front airflow rack-mountable 1U. Subtype: Fibre Channel. Ports: 24 x 64Gb Fibre Channel SFP+. Performance: Aggregate bandwidth: 1536 Gbps. Remote Management Protocol: SNMP 1, RMON, SNMP 3, SSH, SSH-2, CLI. Encryption Algorithm: AES. Authentication Method: RADIUS, TACACS+, LDAP.
Specifications
Highlights
- 24 x 64Gb Fibre Channel SFP+ ports with 24x 32 Gbps SW SFP+ transceivers
- 1536 Gbps aggregate switching bandwidth
- 1U rack-mountable chassis with back-to-front airflow
- Dual 1+1 redundant internal power supplies
- Support for NPIV, IVR, and F-port trunking
- Remote management via CLI, SSH-2, REST, and SNMP
Power
- Power Device
- Internal power supply
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Voltage Required
- AC 100-240 V (50/60 Hz)
- Power Consumption Operational
- 286 Watt
General
- Device Type
- Switch - 24 ports - Managed - with 24x 32 Gbps SW SFP+ transceiver
- Enclosure Type
- Back to front airflow rack-mountable 1U
- Subtype
- Fibre Channel
- Ports
- 24 x 64Gb Fibre Channel SFP+
- Performance
- Aggregate bandwidth: 1536 Gbps
- Remote Management Protocol
- SNMP 1, RMON, SNMP 3, SSH, SSH-2, CLI
- Encryption Algorithm
- AES
- Authentication Method
- RADIUS, TACACS+, LDAP
- Features
- ISL support, High Availability, N-Port ID Virtualisation (NPIV) technology, Representational State Transfer (REST), F-port trunking and channelling, Inter-VSAN Routing (IVR)
Dimensions & Weight
- Width
- 43.94 cm
- Depth
- 45.72 cm
- Height
- 4.37 cm
- Weight
- 8.5 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% RH (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 10 - 95% RH (non-condensing)
Expansion / Connectivity
- Interfaces
- 24 x 64Gb Fibre Channel SFP+ short wave
- Interfaces
- 1 x console RJ-45
- Interfaces
- 1 x serial (RS-232)
- Interfaces
- 1 x 10/100/1000 Base-T RJ-45 out-of-band network management
- Interfaces
- 1 x USB Type A
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 1 year - on-site - response time: next business day
Miscellaneous
- Included Accessories
- Accessory kit, 4 fans
- Compliant Standards
- CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, AS/NZS 3260, ICES-003 Class A, EN 60825, AS/NZS 3548 Class A, IEC 60825, VCCI Class A, EN 55022 Class A, 21 CFR 1040, TS001, CAN/CSA-C22.2 No. 60950, FCC CFR 47 Part 15 Class A
Software / System Requirements
- OS Required
- Cisco NX-OS 9.3(1)
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE SN6710C 64G 24/24 32G SFP+ FC v2 Switch is a managed 1U rack-mountable Fibre Channel switch engineered for high-availability enterprise SAN environments. Featuring 24 64Gb Fibre Channel SFP+ ports populated with 24 32 Gbps short-wave transceivers, it delivers up to 1536 Gbps aggregate bandwidth for demanding data centre storage networking applications.
Frequently asked questions
What is the HPE SN6710C Fibre Channel switch used for?
- This managed 1U Fibre Channel switch connects servers to storage area networks (SAN) in enterprise data centre environments. It provides dedicated, high-speed data transfer across 24 Fibre Channel ports with an aggregate switching bandwidth of 1536 Gbps.
What transceivers are included with this switch?
- The switch comes bundled with 24 32 Gbps short-wave (SW) SFP+ transceivers fitted into its 64Gb-capable SFP+ ports. It also includes 4 cooling fans and a standard accessory kit for rack integration.
Does the HPE SN6710C switch come with a warranty?
- Yes, this unit includes a 1-year limited warranty covering parts and labour with next business day on-site response. South African buyers receive local warranty support when purchasing through Server Hub.
