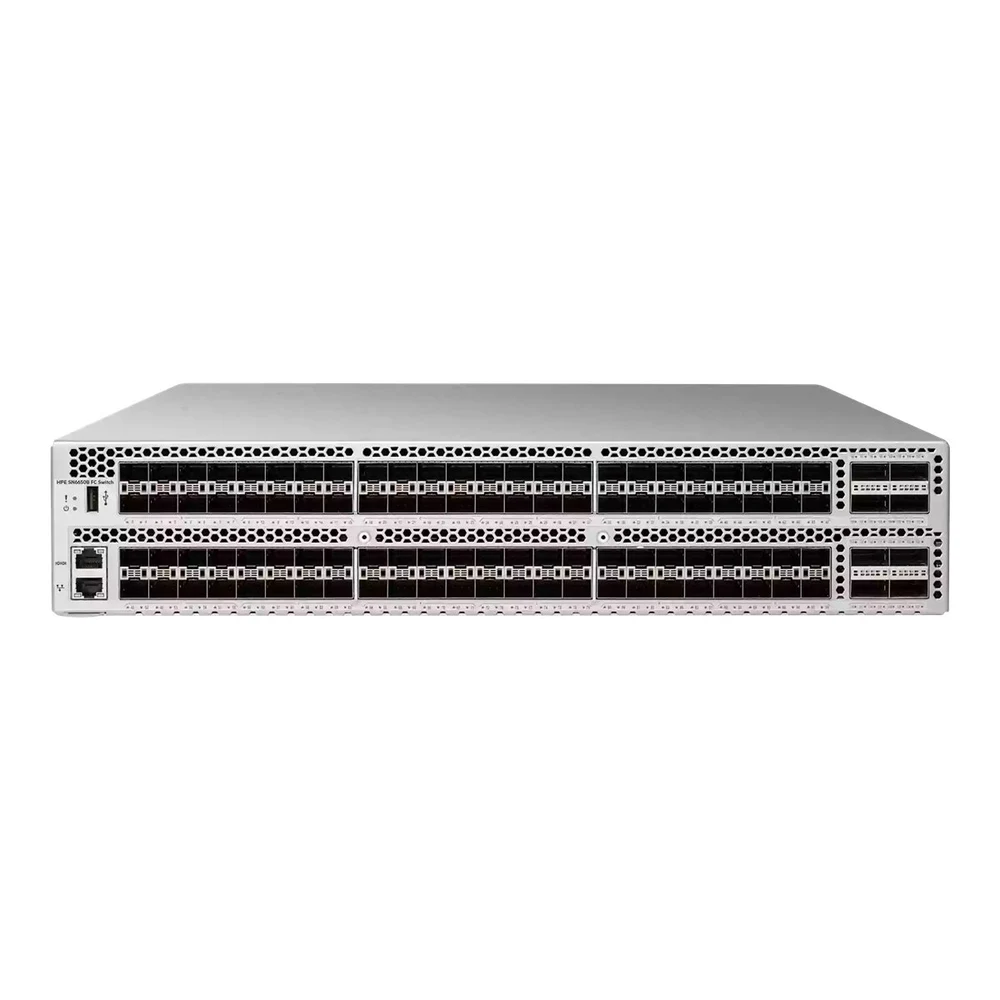

HPE SN6650B 32Gb 128/96 PP+ 96p SFP Swch
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE SN6650B 32Gb 128/96 PP+ 96p SFP Swch.
Device Type: Switch - 96 ports - Managed - with 96 x 32Gb Fibre Channel SW SFP+ transceiver. Enclosure Type: Rack-mountable 2U. Subtype: Fibre Channel. Ports: 96 x 32Gb Fibre Channel SFP+. Performance: Aggregate bandwidth: 4 Tbps. Capacity: Frame buffers: 15000; Maximum frame size: 2112 byte. Remote Management Protocol: SNMP 1, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SFTP. Encryption Algorithm: SSL, 256-bit AES-GCM.
Specifications
Highlights
- 96 active 32Gb Fibre Channel SFP+ ports with SW transceivers included
- 4 Tbps total aggregate switching bandwidth
- 2U rack-mountable chassis with included rack mounting kit
- Dual hot-plug redundant power supplies with 1+1 resilience
- Enterprise management suite including HPE Fabric Vision and Advanced Fabric OS
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Voltage Required
- AC 120/230 V (50/60 Hz)
General
- Device Type
- Switch - 96 ports - Managed - with 96 x 32Gb Fibre Channel SW SFP+ transceiver
- Enclosure Type
- Rack-mountable 2U
- Subtype
- Fibre Channel
- Ports
- 96 x 32Gb Fibre Channel SFP+
- Performance
- Aggregate bandwidth: 4 Tbps
- Capacity
- Frame buffers: 15000
- Capacity
- Maximum frame size: 2112 byte
- Remote Management Protocol
- SNMP 1, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SFTP
- Encryption Algorithm
- SSL, 256-bit AES-GCM
- Authentication Method
- RADIUS, TACACS+, LDAP, DH-CHAP, FCAP
- Features
- ISL support, Syslog support, manageable, Quality of Service (QoS), Registered State Change Notification (RSCN) support, SFTP client, SFTP server, ISL Trunking, Fabric Shortest Path First (FSPF), Fabric-Device Management Interface (FDMI), Secure Copy (SCP), Role-Based Access Control (RBAC), Dynamic path selection (DPS), Reliable Commit Service (RCS), Simple Name Server (SNS), Read Diagnostic Parameters (RDP), Fabric Performance Impact (FPI) monitoring, Slow Drain Device Quarantine (SDDQ), Enhance
Dimensions & Weight
- Width
- 44 cm
- Depth
- 60.96 cm
- Height
- 8.67 cm
- Weight
- 21.31 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 85% (non-condensing)
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 70 °C
Expansion / Connectivity
- Interfaces
- 96 x 32Gb Fibre Channel SFP+ short wave
- Interfaces
- 32 x 32Gb Fibre Channel Ports on Demand
- Interfaces
- 1 x management (Gigabit LAN) management
- Interfaces
- 1 x serial management
- Interfaces
- 1 x USB management
Miscellaneous
- Cables Included
- 1 x serial cable
- Rack Mounting Kit
- Included
Software / System Requirements
- Software Included
- Advanced Fabric OS, Advanced Web Tools, Advanced Zoning, HPE Fabric Vision
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE SN6650B is a 2U rack-mountable 32Gb Fibre Channel SAN switch featuring 96 active SFP+ ports with included short-wave transceivers and an aggregate bandwidth of 4 Tbps. Designed for enterprise storage area networks, it provides high-throughput connectivity, dual redundant hot-plug power supplies, and integrated management tools such as HPE Fabric Vision for demanding data centre environments.
Frequently asked questions
What is the HPE SN6650B switch used for?
- The HPE SN6650B is a high-density Fibre Channel switch used to interconnect servers and storage arrays in enterprise storage area networks (SANs). It provides high-speed 32Gb data throughput and 4 Tbps aggregate bandwidth to support data-intensive enterprise workloads.
What transceivers are supplied with this model?
- This configuration comes populated with 96 x 32Gb Fibre Channel short-wave (SW) SFP+ transceivers. It also supports 32 additional Ports on Demand interfaces for modular fabric expansion.
Does the HPE SN6650B switch include a warranty in South Africa?
- Yes, orders placed with Server Hub include local South African warranty support. The switch arrives fully equipped with dual hot-plug power supplies and a rack mounting kit.
