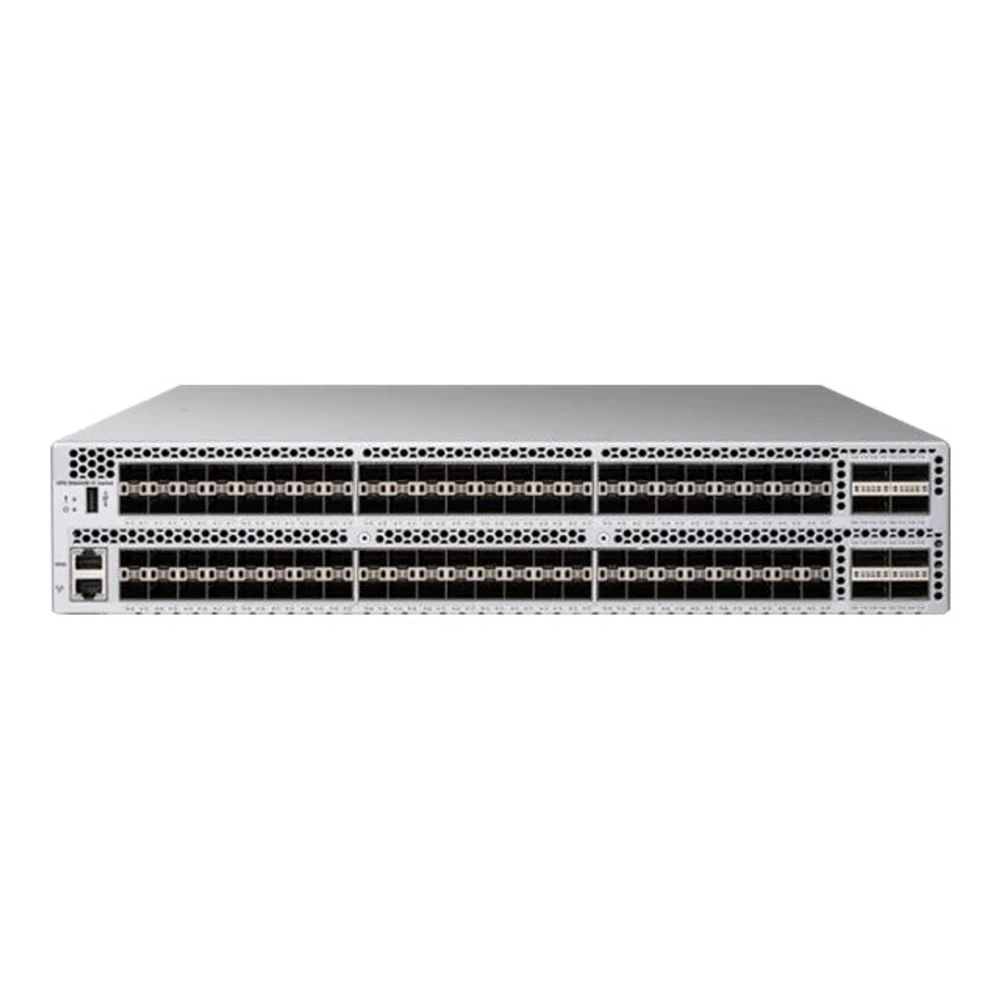

HPE SN6650B 32Gb 128/48 48p SFP+ FC Swch
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE SN6650B 32Gb 128/48 48p SFP+ FC Swch.
Device Type: Switch - 48 ports - Managed - with 48 x 32Gb Fibre Channel SW SFP+ transceiver. Enclosure Type: Rack-mountable 2U. Subtype: Fibre Channel. Ports: 48 x 32Gb Fibre Channel SFP+. Performance: Aggregate bandwidth: 4 Tbps. Capacity: Frame buffers: 15000; Maximum frame size: 2112 byte. Remote Management Protocol: SNMP 1, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SFTP. Encryption Algorithm: SSL, 256-bit AES-GCM.
Specifications
Highlights
- 48 active 32Gb Fibre Channel SFP+ ports with included short-wave transceivers
- High-speed switching performance with up to 4 Tbps aggregate bandwidth
- 2U rack-mountable enterprise chassis with included rack mounting kit
- Redundant 1+1 hot-plug internal power supplies
- Comprehensive remote management via SNMP 3, SSH-2, CLI, and HTTPS
- Includes Advanced Fabric OS, Advanced Web Tools, Advanced Zoning, and HPE Fabric Vision
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Voltage Required
- AC 120/230 V (50/60 Hz)
General
- Device Type
- Switch - 48 ports - Managed - with 48 x 32Gb Fibre Channel SW SFP+ transceiver
- Enclosure Type
- Rack-mountable 2U
- Subtype
- Fibre Channel
- Ports
- 48 x 32Gb Fibre Channel SFP+
- Performance
- Aggregate bandwidth: 4 Tbps
- Capacity
- Frame buffers: 15000
- Capacity
- Maximum frame size: 2112 byte
- Remote Management Protocol
- SNMP 1, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SFTP
- Encryption Algorithm
- SSL, 256-bit AES-GCM
- Authentication Method
- RADIUS, TACACS+, LDAP, DH-CHAP, FCAP
- Features
- ISL support, Syslog support, manageable, Quality of Service (QoS), Registered State Change Notification (RSCN) support, SFTP client, SFTP server, ISL Trunking, Fabric Shortest Path First (FSPF), Fabric-Device Management Interface (FDMI), Secure Copy (SCP), Role-Based Access Control (RBAC), Dynamic path selection (DPS), Reliable Commit Service (RCS), Simple Name Server (SNS), Read Diagnostic Parameters (RDP), Fabric Performance Impact (FPI) monitoring, Slow Drain Device Quarantine (SDDQ), Enhance
Dimensions & Weight
- Width
- 44 cm
- Depth
- 60.96 cm
- Height
- 8.67 cm
- Weight
- 21.31 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 85% (non-condensing)
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 70 °C
Expansion / Connectivity
- Interfaces
- 48 x 32Gb Fibre Channel SFP+ short wave
- Interfaces
- 80 x 32Gb Fibre Channel Ports on Demand
- Interfaces
- 1 x management (Gigabit LAN) management
- Interfaces
- 1 x serial management
- Interfaces
- 1 x USB management
Miscellaneous
- Cables Included
- 1 x serial cable
- Rack Mounting Kit
- Included
Software / System Requirements
- Software Included
- Advanced Fabric OS, Advanced Web Tools, Advanced Zoning, HPE Fabric Vision
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE SN6650B is a high-performance 2U rack-mountable 32Gb Fibre Channel SAN switch equipped with 48 active 32Gb SFP+ ports and transceivers. Engineered for demanding enterprise storage fabrics, it provides up to 4 Tbps aggregate bandwidth, redundant hot-plug power supplies, and advanced management tools for reliable, low-latency datacentre storage connectivity.
Frequently asked questions
What is the HPE SN6650B Fibre Channel switch used for?
- The HPE SN6650B connects high-throughput enterprise servers to Storage Area Networks (SANs). With 32Gb Fibre Channel performance and 4 Tbps aggregate bandwidth, it delivers low latency and high bandwidth for flash storage and data-intensive datacentre workloads.
Does this switch include transceivers and power redundancy?
- Yes, this unit comes equipped with 48 x 32Gb short-wave SFP+ optical transceivers. It also features dual hot-plug internal power supplies operating in a 1+1 redundant configuration to ensure continuous network availability.
Does the HPE SN6650B come with a warranty in South Africa?
- Yes, when purchased through Server Hub, this switch is supplied with a local South African warranty. All support, order fulfilment, and billing are handled locally in South African Rand.
