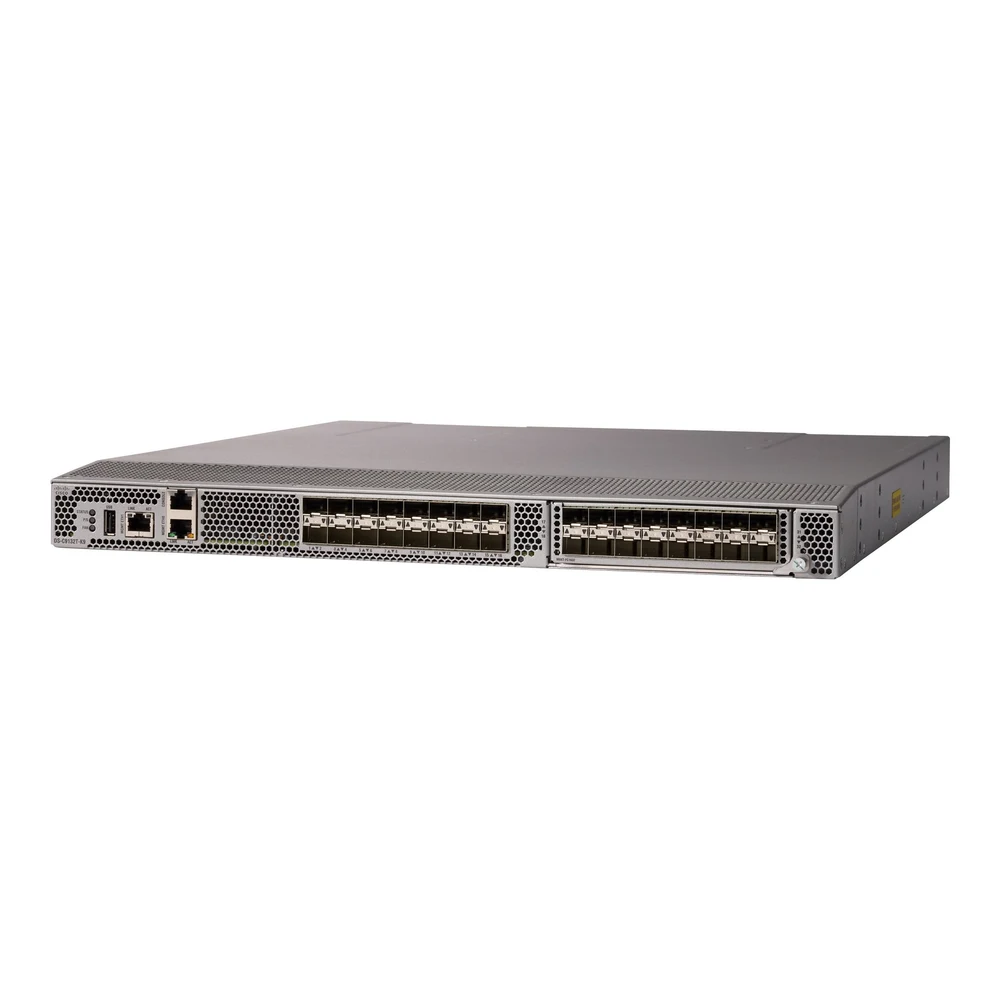

HPE SN6610C 32G 32/24 32G SFP+ FC v2 Sw
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE SN6610C 32G 32/24 32G SFP+ FC v2 Sw.
Device Type: Switch - 32 ports - Managed. Enclosure Type: Rack-mountable 1U. Subtype: Fibre Channel. Ports: 24 x 32Gb Fibre Channel SFP+. Performance: Aggregate bandwidth: 1024 Gbps. Remote Management Protocol: SNMP 1, RMON, SNMP 3, SSH, SSH-2, CLI. Encryption Algorithm: 128-bit AES. Authentication Method: RADIUS, TACACS+, LDAP.
Specifications
Highlights
- 24 active 32Gb Fibre Channel SFP+ ports with 8 Ports on Demand
- 1024 Gbps aggregate switching bandwidth
- Compact 1U rack-mountable form factor
- 128-bit AES encryption with RADIUS, TACACS+, and LDAP support
- Managed via CLI, SSH, RMON, SNMP, and REST
- Optional 1+1 redundant power supply configuration
Power
- Power Device
- Internal power supply (not installed)
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Voltage Required
- AC 100-240 V (50/60 Hz)
General
- Device Type
- Switch - 32 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Fibre Channel
- Ports
- 24 x 32Gb Fibre Channel SFP+
- Performance
- Aggregate bandwidth: 1024 Gbps
- Remote Management Protocol
- SNMP 1, RMON, SNMP 3, SSH, SSH-2, CLI
- Encryption Algorithm
- 128-bit AES
- Authentication Method
- RADIUS, TACACS+, LDAP
- Features
- ISL support, Syslog support, High Availability, Quality of Service (QoS), Registered State Change Notification (RSCN) support, SFTP client, SFTP server, Fabric Configuration Server (FCS), Role-Based Access Control (RBAC), Online Health Management System (OHMS), Representational State Transfer (REST), F-port trunking and channelling, Inter-VSAN Routing (IVR)
Dimensions & Weight
- Width
- 44 cm
- Depth
- 51.1 cm
- Height
- 4.37 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% RH (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 10 - 95% RH (non-condensing)
Expansion / Connectivity
- Interfaces
- 24 x 32Gb Fibre Channel SFP+
- Interfaces
- 8 x 32Gb Fibre Channel SFP+ Ports on Demand
- Interfaces
- 1 x console RJ-45
- Interfaces
- 1 x management RJ-45
- Interfaces
- 1 x 10/100/1000 Base-T RJ-45 out-of-band network management
- Interfaces
- 1 x USB Type A
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 1 year - on-site - response time: next business day
Miscellaneous
- Compliant Standards
- CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, AS/NZS 3260, ICES-003 Class A, EN 60825, AS/NZS 3548 Class A, IEC 60825, VCCI Class A, EN 55022 Class A, 21 CFR 1040, TS001, CAN/CSA-C22.2 No. 60950, FCC CFR 47 Part 15 Class A
Software / System Requirements
- OS Required
- Cisco NX-OS 8.2(1)
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE SN6610C 32G Fibre Channel Switch v2 is a 1U managed storage area network switch equipped with 24 active 32Gb SFP+ ports and an aggregate bandwidth of 1024 Gbps. Designed for enterprise data centres and SAN environments, it delivers high-density connectivity, 128-bit AES encryption, and robust Cisco NX-OS management for demanding storage workloads.
Frequently asked questions
What is the HPE SN6610C Fibre Channel switch used for?
- The HPE SN6610C switch connects enterprise storage arrays to servers across high-performance Fibre Channel storage area networks (SANs). It provides 24 active 32Gb SFP+ ports delivering low-latency connectivity and high bandwidth for mission-critical storage applications.
Can the port capacity of the HPE SN6610C switch be expanded?
- Yes, this 32-port switch comes with 24 active 32Gb Fibre Channel SFP+ ports and supports an additional 8 ports via Ports on Demand. This allows businesses to scale port density on demand as their storage environment grows.
Does the switch come with a warranty in South Africa?
- Yes, it includes a 1-year limited parts and labour warranty with next-business-day on-site response. Local support and warranty fulfilment are provided in South Africa via Server Hub.
