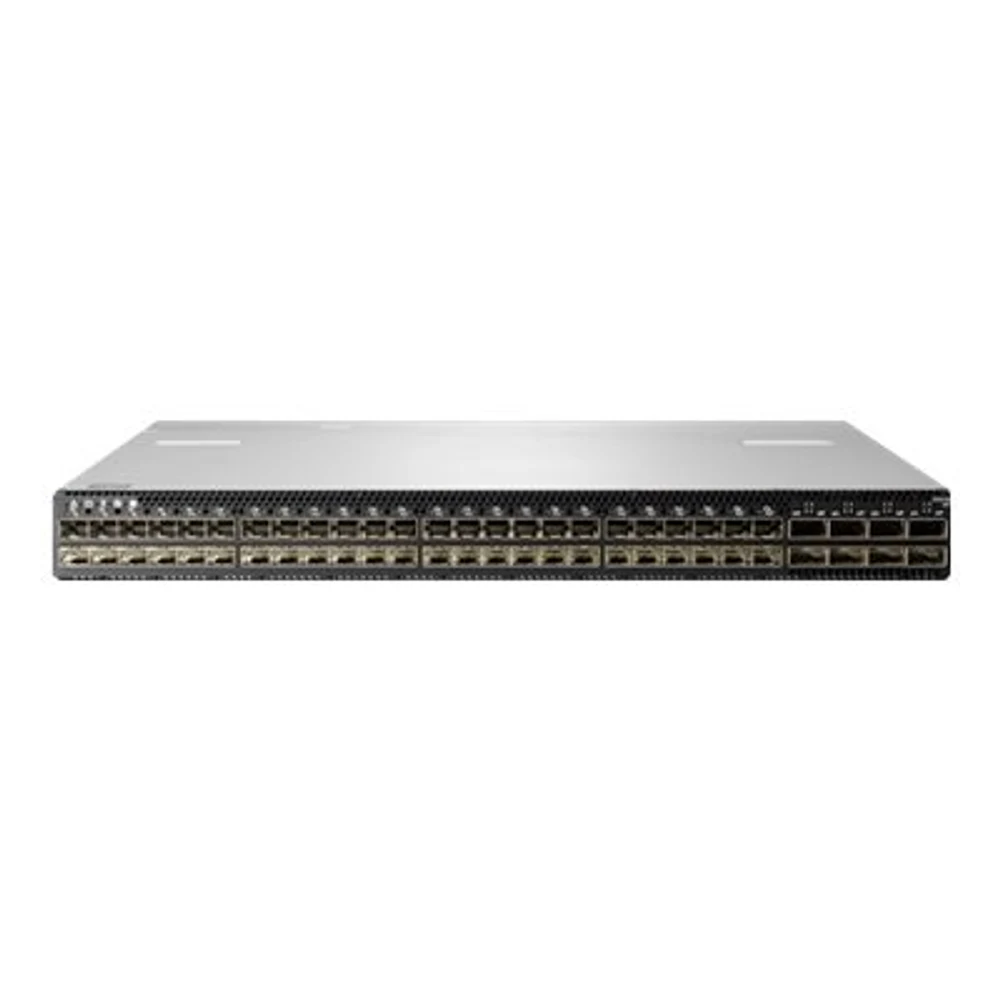

HPE SN2410M 48SFP28 8QSFP28 P2C Swch
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE SN2410M 48SFP28 8QSFP28 P2C Swch.
Device Type: Switch - 48 ports - L3 - Managed. Enclosure Type: Rack-mountable 1U. Subtype: 25 Gigabit Ethernet. Ports: 48 x 25 Gigabit SFP28 + 8 x 100 Gigabit QSFP28. Performance: Switching capacity: 4 Tbps; Processing rate: 5.95 Bpps; Cut-through latency: 300 ns. Remote Management Protocol: SNMP, Telnet, SSH, CLI. Authentication Method: RADIUS, TACACS+, LDAP. General — Features: IGMP snooping, port mirroring, store and forward, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), IPv4 support, LLDP support, DHCP relay, sFlow v5, 802.1x authentication, 16MB packet buffer, OpenFlow support, Protocol-based VLANs support, Sto.
Specifications
- RAM
- 8 GB
Highlights
- 48 x 25Gb SFP28 and 8 x 100Gb QSFP28 network ports
- 4 Tbps switching capacity with 5.95 Bpps processing throughput
- Ultra-low 300 ns cut-through latency
- Dual hot-plug redundant 460W power supplies in 1+1 configuration
- Compact 1U rack-mountable chassis with power-to-port airflow
- Managed Layer 3 routing support with SNMP, SSH, and CLI management
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Power Provided
- 460 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 165 Watt
- Features
- Power-to-port airflow
General
- Device Type
- Switch - 48 ports - L3 - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 25 Gigabit Ethernet
- Ports
- 48 x 25 Gigabit SFP28 + 8 x 100 Gigabit QSFP28
- Performance
- Switching capacity: 4 Tbps
- Performance
- Processing rate: 5.95 Bpps
- Performance
- Cut-through latency: 300 ns
- Remote Management Protocol
- SNMP, Telnet, SSH, CLI
- Authentication Method
- RADIUS, TACACS+, LDAP
- Features
- IGMP snooping, port mirroring, store and forward, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), IPv4 support, LLDP support, DHCP relay, sFlow v5, 802.1x authentication, 16MB packet buffer, OpenFlow support, Protocol-based VLANs support, Sto
- Compliant Standards
- X.509
- RAM
- 8 GB
- Flash Memory
- 32 MB
- Status Indicators
- System, status, fan
Compatibility Information
- Designed For
- HPE Apollo 4200 Gen10 192TB Qumulo Hybrid Node, 4200 Gen10 336TB Archive Node with 25Gb NIC for Qumulo, 4200 Gen10 Qumulo Archive Node, 4200 Gen10 Qumulo Hybrid Node, 4200 Qumulo Archive Node, 4200 Qumulo Hybrid Node, 4200 Qumulo Node
Dimensions & Weight
- Width
- 43.6 cm
- Depth
- 43.8 cm
- Height
- 4.39 cm
- Weight
- 8.52 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 85% (non-condensing)
Expansion / Connectivity
- Interfaces
- 48 x 25Gbit LAN SFP28
- Interfaces
- 8 x 100Gbit LAN QSFP28
- Interfaces
- 1 x USB Type A
- Interfaces
- 2 x management
- Interfaces
- 1 x console RJ-45
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site
Miscellaneous
- Included Accessories
- 2 power cords (C13 to C14), 4 intake fan trays, fixed rack mount kit, 2 x PSU cable retainer kit
- Cables Included
- 1 x serial cable
- Rack Mounting Kit
- Included
- Compliant Standards
- EMC, FIPS 140-2, X.509, EN 61000-4-5:2006, EN 61000-4-11:2004, UL 60950-1:2007, EN 61000-3-3:2013, EN 55024:2010, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-3-2:2014, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, VCCI V-3/2015.04 Class A, EN 55032:2012 Class A, ICES-003:2016 issue 6 Class A, LV, TR CU 020/2011, TR CU 004/2011, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, DSTU EN 55032:2014, DSTU EN 60950-1
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE SN2410M is a high-performance 1U Layer 3 managed Ethernet switch equipped with 48 x 25GbE SFP28 and 8 x 100GbE QSFP28 ports. Built for data centres and enterprise storage networks requiring low-latency 4 Tbps switching capacity, it delivers power-to-port airflow and redundant hot-plug power supplies for high-density rack environments.
Frequently asked questions
What network interfaces are available on the HPE SN2410M?
- The HPE SN2410M is equipped with 48 x 25GbE SFP28 ports and 8 x 100GbE QSFP28 ports. It also includes dedicated management ports, a USB Type-A port, and an RJ-45 console port for out-of-band administration.
What performance throughput does the HPE SN2410M offer?
- This switch delivers up to 4 Tbps of switching capacity and a packet processing rate of 5.95 Bpps. It is engineered with a cut-through latency of just 300 ns to support demanding high-throughput data centre applications.
Does the HPE SN2410M switch come with a warranty?
- Yes, it is backed by a 3-year limited hardware and labour warranty with local support in South Africa provided via Server Hub.
