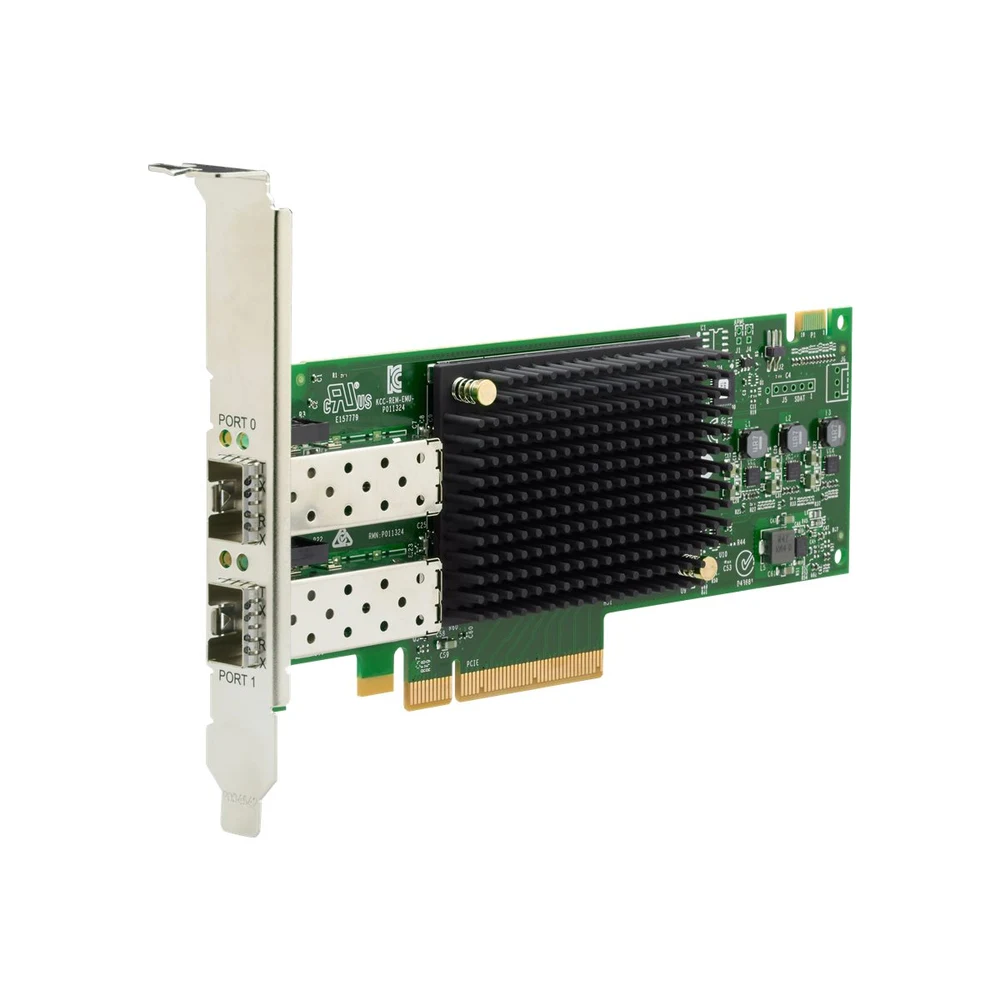

HPE SN1700E 64Gb 2p FC HBA.
Device Type: Host bus adapter. Form Factor: Plug-in card. Interface (Bus) Type: PCI Express 4.0 x8. PCI Specification Revision: PCIe 4.0. Ports: 64Gb Fibre Channel (Short Wave) x 2. Connectivity Technology: Wired. Cabling Type: Fibre Channel. Data Link Protocol: 64Gb Fibre Channel (Short Wave).
Specifications
Highlights
- Dual 64Gb Fibre Channel Short Wave SFP+ ports
- PCI Express 4.0 x8 host bus interface
- Includes two 64Gb SFP+ transceivers
- Standard and low-profile mounting brackets included
- 11 Watt operational power consumption
- Engineered for HPE ProLiant Gen10 Plus and Gen11 systems
Networking
- Ports
- 64Gb Fibre Channel (Short Wave) x 2
- Connectivity Technology
- Wired
- Cabling Type
- Fibre Channel
- Data Link Protocol
- 64Gb Fibre Channel (Short Wave)
Power
- Power Consumption Operational
- 11 Watt
General
- Device Type
- Host bus adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 4.0 x8
- PCI Specification Revision
- PCIe 4.0
Compatibility Information
- Designed For
- HPE ProLiant DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka BAse Tracking, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2 Performance, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, ML350 Gen11 Performance 3,
Dimensions & Weight
- Width
- 12.44 cm
- Depth
- 16.764 cm
- Height
- 6.934 cm
- Weight
- 125 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 2 x 64Gb Fibre Channel (Short Wave) - SFP+
Manufacturer Warranty
- Service & Support
- Limited warranty - parts - 3 years
Miscellaneous
- Included Accessories
- Low-profile bracket, standard bracket, 2 x 64Gb SFP+ transceivers
- Compliant Standards
- OM4, OM3
Related Products
Dell PowerEdge R640 NVMe Server 2.50Ghz 40-Core 512GB RAM + 4x Caddies + Rails
HP ProLiant DL380 G9 Server 8-Bay SFF 2.40Ghz 16-Core 32GB RAM + 3.0TB SATA HDDs
Dell PowerEdge R440 Server 8-Bay SFF 2.70Ghz 24-Core 128GB RAM + 2.4TB SATA SSDs
Dell PowerEdge R740xd NVMe Server 24-Bay 2.60Ghz 36-Core 128GB RAM + 24x Caddies
The HPE SN1700E 64Gb 2-Port Fibre Channel Host Bus Adapter is a dual-port PCIe 4.0 x8 plug-in card designed for high-throughput enterprise storage networking. Built for HPE ProLiant Gen10 Plus and Gen11 servers, it delivers 64Gb Fibre Channel connectivity for enterprise datacentres requiring low latency and high bandwidth for demanding virtualised and flash storage workloads.
Frequently asked questions
What is the HPE SN1700E 64Gb 2p FC HBA used for?
- The HPE SN1700E is a host bus adapter used to connect compatible servers to high-speed Fibre Channel storage area networks (SANs). It provides dual 64Gb Short Wave ports over a PCIe 4.0 x8 bus, delivering fast data throughput for intensive enterprise workloads.
Which servers are compatible with this Fibre Channel adapter?
- This adapter is designed for specific HPE ProLiant systems, including DL325 Gen10 Plus, DL360 Gen10 Plus, DL380 Gen10 Plus, and ML350 Gen11 models. It includes both low-profile and standard brackets to fit various server expansion slot sizes.
Does the HPE SN1700E come with a warranty?
- Yes, this adapter includes a 3-year parts warranty. When purchased through Server Hub in South Africa, you receive local support and transparent pricing in South African Rand.
