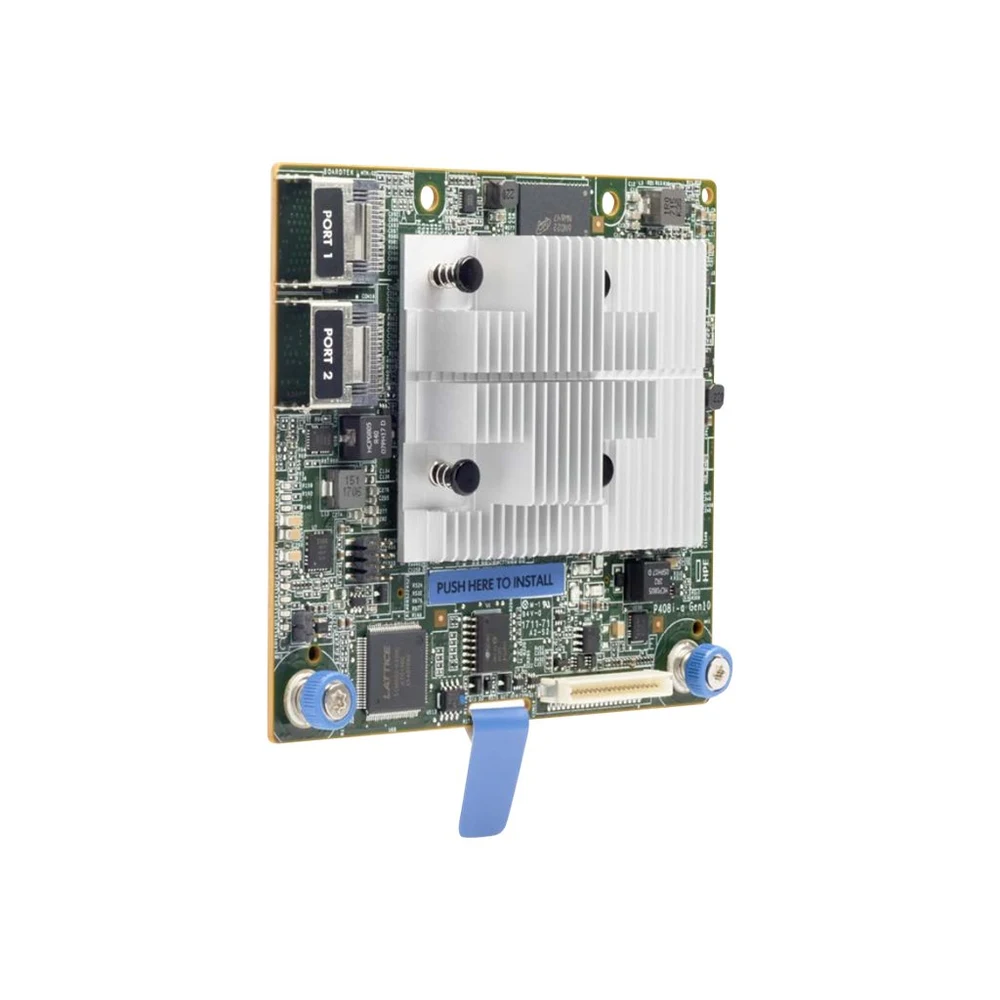

HPE Smart Array P408i-a SR G10 LH Ctrlr
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE Smart Array P408i-a SR G10 LH Ctrlr.
Device Type: Storage controller (RAID) - plug-in card. Host Bus: PCIe 3.0 x8. Features: Low profile heatsink. Interface: SATA 6Gb/s / SAS 12Gb/s. Data Transfer Rate: 12 Gbit/s. Buffer Size: 2 GB. Supported Devices: Hard drive, disk array (RAID). Channel Qty: 8.
Specifications
- Buffer Size
- 2 GB
Highlights
- PCIe 3.0 x8 host bus interface
- 12Gb/s SAS and 6Gb/s SATA data transfer rates
- 2 GB onboard cache buffer
- Supports RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, and 10 ADM
- 8 storage channels across 2 internal interfaces
- Low-profile heatsink modular form factor
General
- Device Type
- Storage controller (RAID) - plug-in card
- Host Bus
- PCIe 3.0 x8
- Features
- Low profile heatsink
Compatibility Information
- Designed For
- HPE Apollo 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4200 Gen10 for HPE Ezmeral Container Platform, 4200 Gen10 for HPE Ezmeral Tracking
- Designed For
- HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10
- Designed For
- HPE ProLiant DL160 Gen10, DL160 Gen10 Base, DL160 Gen10 Entry, DL160 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL325 Gen10 Base, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 Performance, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL3
Expansion / Connectivity
- Interfaces
- 2 x SATA 6Gb/s / SAS 12Gb/s (internal)
Miscellaneous
- Compliant Standards
- FIPS 140-2 Level 1
Software / System Requirements
- OS Required
- Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
Storage Controller
- Interface
- SATA 6Gb/s / SAS 12Gb/s
- Data Transfer Rate
- 12 Gbit/s
- Buffer Size
- 2 GB
- Supported Devices
- Hard drive, disk array (RAID)
- Channel Qty
- 8
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
- Maximum LUNs
- 64
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE Smart Array P408i-a SR G10 LH is an enterprise-class 12Gb/s SAS and 6Gb/s SATA RAID controller plug-in card designed for HPE ProLiant and Apollo Gen10 servers. Featuring a 2 GB cache, a low-profile heatsink, and PCIe 3.0 x8 connectivity, it provides hardware RAID protection and storage management for business-critical server workloads.
Frequently asked questions
What is the HPE Smart Array P408i-a SR G10 LH used for?
- This controller is a dedicated enterprise storage controller used to manage internal hard drives and disk arrays in compatible HPE Gen10 servers. It provides hardware RAID capabilities up to RAID 60 to ensure data redundancy, performance scaling, and storage reliability.
Which RAID levels are supported by this controller?
- The controller supports standard RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, and RAID 60 modes. It also supports advanced RAID 1 ADM and RAID 10 ADM mirroring configurations across up to 64 logical unit numbers (LUNs).
Does this controller come with a warranty in South Africa?
- Yes, purchases made through Server Hub include a local South African warranty. This provides local support and coverage for your enterprise server hardware.
