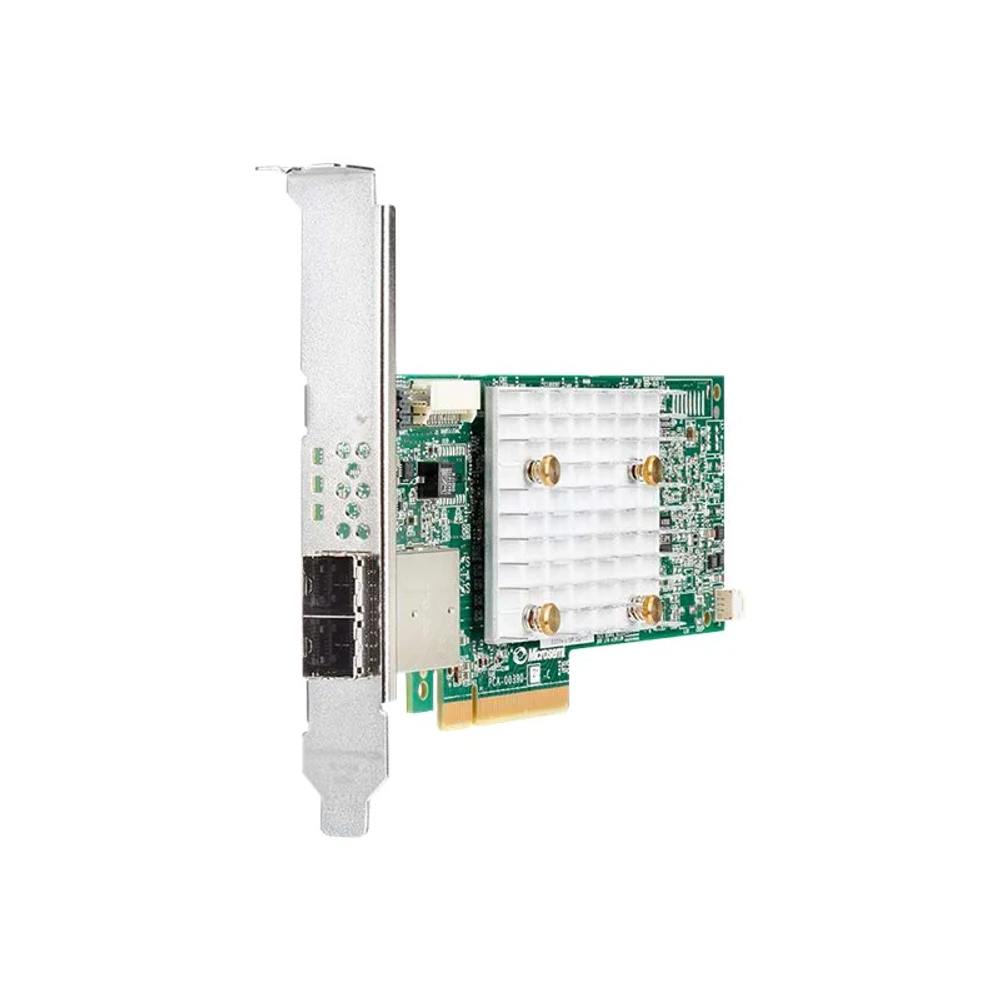

HPE Smart Array P408e-p SR Gen10 Ctrlr
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE Smart Array P408e-p SR Gen10 Ctrlr.
Device Type: Storage controller (RAID) - plug-in card. Host Bus: PCIe 3.0 x8. Interface: SATA 6Gb/s / SAS 12Gb/s. Data Transfer Rate: 12 Gbit/s. Buffer Size: 4 GB. Supported Devices: Hard drive, disk array (RAID). Channel Qty: 8. RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM.
Specifications
- Buffer Size
- 4 GB
Highlights
- PCIe 3.0 x8 plug-in RAID controller card
- Supports 12Gb/s SAS and 6Gb/s SATA interfaces across 8 channels
- 4 GB Flash-Backed Write-back Cache (FBWC)
- Comprehensive RAID support including RAID 0, 1, 5, 6, 10, 50, 60, and ADM levels
- Supports up to 64 logical drives (LUNs)
- FIPS 140-2 Level 1 compliance for data security
General
- Device Type
- Storage controller (RAID) - plug-in card
- Host Bus
- PCIe 3.0 x8
Compatibility Information
- Designed For
- HPE Apollo 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform
- Designed For
- HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10
- Designed For
- HPE ProLiant DL180 Gen10 Entry, DL20 Gen10 Performance, DL325 Gen10 Base, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 Performance, DL325 Gen10 Solution, DL345 Gen10 Plus Base, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Cho
- Designed For
- HPE StoreEasy 1660 Expanded Storage
Expansion / Connectivity
- Interfaces
- 2 x SATA 6Gb/s / SAS 12Gb/s
Miscellaneous
- Features
- Flash Backed Write-back Cache (FBWC)
- Compliant Standards
- FIPS 140-2 Level 1
Software / System Requirements
- OS Required
- Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
Storage Controller
- Interface
- SATA 6Gb/s / SAS 12Gb/s
- Data Transfer Rate
- 12 Gbit/s
- Buffer Size
- 4 GB
- Supported Devices
- Hard drive, disk array (RAID)
- Channel Qty
- 8
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
- Maximum LUNs
- 64
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE Smart Array P408e-p SR Gen10 is an enterprise-class PCIe 3.0 x8 plug-in storage controller card. Designed for HPE ProLiant Gen10 servers and storage platforms, it provides external connectivity for SAS 12Gb/s and SATA 6Gb/s drives, featuring 4 GB Flash-Backed Write Cache for robust data protection and performance in demanding enterprise environments.
Frequently asked questions
What is the HPE Smart Array P408e-p SR Gen10 controller used for?
- This controller provides enterprise-grade storage management and RAID capabilities for external drive enclosures and disk arrays. It connects via a PCIe 3.0 x8 slot to deliver up to 12Gb/s SAS and 6Gb/s SATA data transfer rates on compatible HPE ProLiant and Apollo servers.
Which operating systems are supported by this controller?
- The controller supports a broad range of enterprise operating systems including Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, VMware vSphere (ESXi), Oracle Linux, Oracle Solaris, Citrix XenServer, and ClearOS.
Does this HPE storage controller come with a warranty?
- Yes, orders fulfilled through Server Hub include a local South African warranty. This ensures dependable local technical support and efficient assistance for your enterprise hardware.
