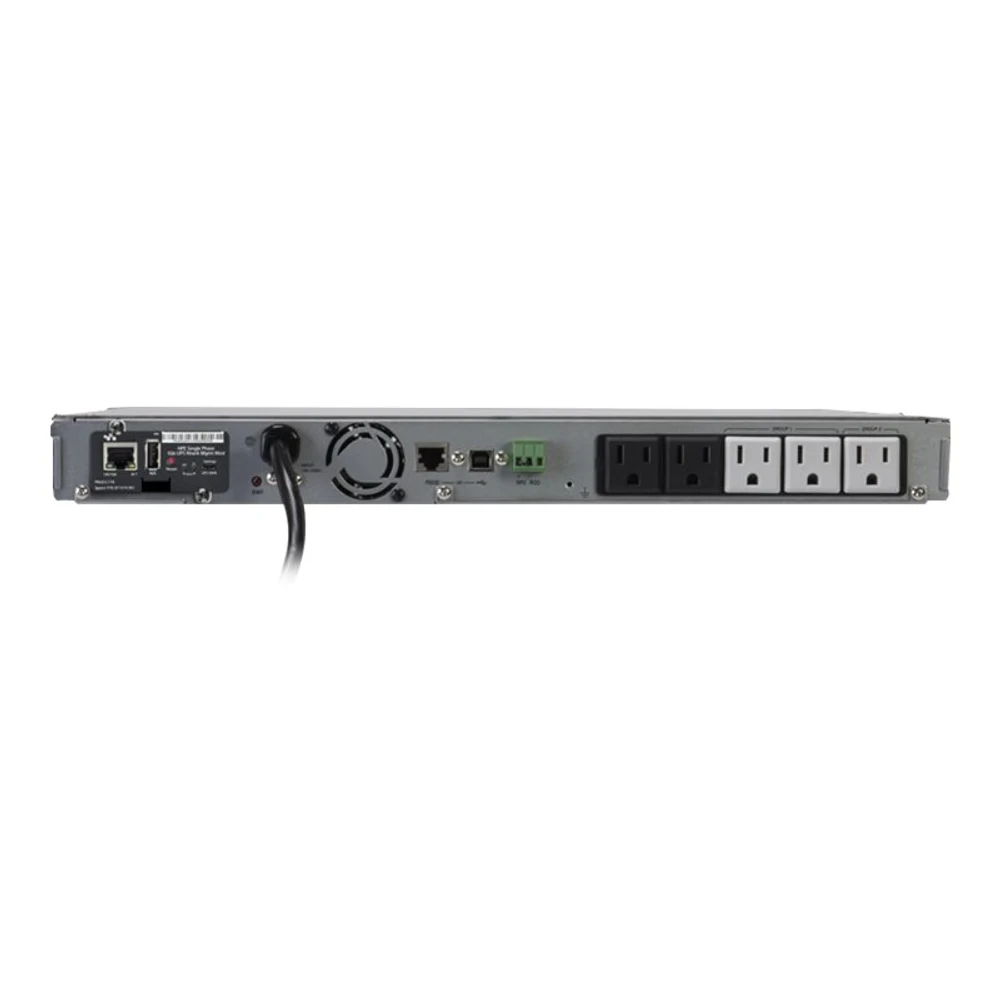

HPE R1500 G5 JP/TW UPS
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE R1500 G5 JP/TW UPS.
Device Type: UPS - rack-mountable. Height (Rack Units): 1U. Localisation: Japan, Taiwan. UPS Technology: Line interactive. Input Voltage: AC 100/120-125 V. Input Wiring: 1-phase. Frequency Required: 50/60 Hz. Input Connectors: 1 x power NEMA 5-15P.
Specifications
Highlights
- 1100 Watt / 1440 VA power capacity with pure sinewave output
- Compact 1U rack-mountable form factor with included rail kit
- Line-interactive topology operating at up to 92% efficiency
- Five NEMA 5-15R output power connectors with NEMA 5-15P input
- Integrated front LCD status display with USB and RS-232 serial management
Networking
- Remote Management Interface
- RS-232, USB
General
- Device Type
- UPS - rack-mountable
- Height (Rack Units)
- 1U
- Localisation
- Japan, Taiwan
Battery
- Technology
- Lead Acid
- Voltage Provided
- 36 V
- Run Time (Up To)
- 39 min at 20% load
- Run Time (Up To)
- 12 min at half load
- Run Time (Up To)
- 7 min at 80% load
- Run Time (Up To)
- 5 min at full load
- Recharge Time
- 24 hours
- Features
- Maintenance free, sealed
Dimensions & Weight
- Width
- 43.8 cm
- Depth
- 55.4 cm
- Height
- 4.3 cm
- Weight
- 19.72 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 58 cm
- Shipping Depth
- 78 cm
- Shipping Height
- 15.5 cm
- Shipping Weight
- 24.7 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 90% (non-condensing)
- Sound Emission
- 45 dBA
Expansion / Connectivity
- Interfaces
- 1 x USB
- Interfaces
- 1 x RS-232 - 9 pin D-Sub (DB-9)
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 1 year
- Service & Support
- Limited warranty - 3 years
Miscellaneous
- Included Accessories
- Rack mounting rails
- Cables Included
- USB cable
- Cables Included
- Serial cable
- Cables Included
- Power cable - integrated
- Rack Mounting Kit
- Included
- Equipment Protection Value
- 250000 US Dollars
- Features
- LCD display, VRLA battery support
- Compliant Standards
- UL, TUV, C-Tick, BSMI, ANSI C62.41, cUL, EN 61000-3-2, GS, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-6, UL 1778, EN 61000-3-3, EN55024, UL 60950, CISPR 22, CB, EN 50091-2, EK, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, CSA 22.2, KC, VCCI Class B, EAC, IEC 62040-1, EN 62040-1, BIS
Power Device
- UPS Technology
- Line interactive
- Input Voltage
- AC 100/120-125 V
- Input Wiring
- 1-phase
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power NEMA 5-15P
- Power Output Connectors Details
- 5 x power NEMA 5-15R
- Power Capacity
- 1100 Watt / 1440 VA
- Output Waveform
- Sinewave
- Efficiency
- 92%
Software / System Requirements
- Software Included
- HP Power Protector (free download)
Related Products
Ecoflow Delta Pro 3 Portable Power Station - 4000W Output
Ubiquiti UniFi SmartPower Cable
Ecoflow River 2 Portable Power Station - 256Wh Battery, 300W Output
Victron VE.Direct Bluetooth Smart Dongle
The HPE R1500 G5 JP/TW is a 1U rack-mountable line-interactive uninterruptible power supply (UPS) delivering 1100W (1440VA) of pure sinewave power. Designed for servers, storage, and network gear requiring 100 to 125V input, it protects critical IT infrastructure against outages, surges, and brownouts using maintenance-free sealed lead-acid batteries and intelligent power management.
Frequently asked questions
What is the HPE R1500 G5 UPS used for?
- The HPE R1500 G5 is used to supply battery backup power and surge protection for rack-mounted equipment such as servers, networking switches, and storage systems. Its slim 1U profile allows IT administrators to maximise vertical rack density while safeguarding critical loads.
What input voltage does this HPE R1500 G5 model support?
- This specific JP/TW edition is built for AC 100/120-125 V single-phase input at 50/60 Hz and connects via a NEMA 5-15P input plug. It provides protected power through five NEMA 5-15R output receptacles.
Does the HPE R1500 G5 come with a warranty?
- Yes, purchases made through Server Hub include local South African warranty support, ensuring you receive direct assistance and peace of mind for your IT power infrastructure.
