SPT-C229139ED381C7
HPE NW 6200F 48G C4 4SFP+740W T Sw
R 238 490
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1

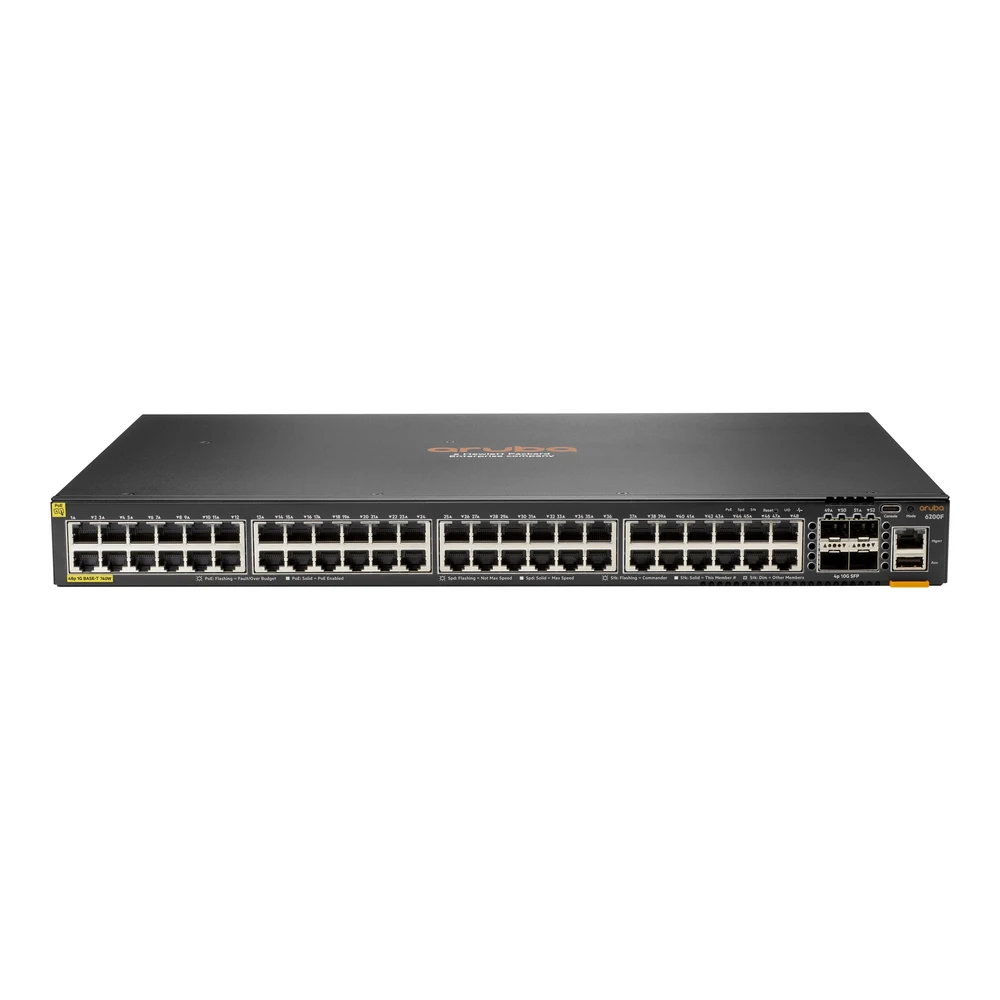

HPE NW 6200F 48G C4 4SFP+740W T Sw.
Device Type: Switch - 48 ports - L3 - Managed - stackable. Enclosure Type: Front and side to back rack-mountable 1U. Subtype: Gigabit Ethernet. Ports: 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink). Power Over Ethernet (PoE): PoE+. PoE Budget: 740 W. Performance: Latency (1 Gbps): 2.28 µs; Latency (10 Gbps): 1.46 µs. Capacity: Packet buffer size: 8 MB.
Specifications
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- RAM
- 8 GB DDR4 SDRAM
- Capacity
- Packet buffer size: 8 MB
Highlights
- 48 Gigabit Ethernet RJ-45 ports with PoE+ support
- 4 dedicated 1G/10G SFP+ optical uplink ports
- 740W total PoE power budget for connected endpoints
- Stackable Layer 3 managed architecture supporting up to 8 units
- 1U rack-mountable chassis with 2-post rack kit included
- 8 GB DDR4 SDRAM and 1.8 GHz ARM Cortex-A72 processor
Power
- Power Device
- Internal power supply
General
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Front and side to back rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 740 W
- Performance
- Latency (1 Gbps): 2.28 µs
- Performance
- Latency (10 Gbps): 1.46 µs
- Capacity
- Packet buffer size: 8 MB
- MAC Address Table Size
- 32768 entries
- Jumbo Frame Support
- 9220 bytes
- Max Units In A Stack
- 8
- Routing Protocol
- RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD
- Remote Management Protocol
- RMON, CLI, MIB
- Encryption Algorithm
- SSL, FIPS 140-2
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Virtual Route Redundancy Protocol (VRRP) support, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), PoE Class 4, Rapid PVST+ (RPVST+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (UTM), Egress Queue Shaping (EQS), Address Resolution Protocol
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- RAM
- 8 GB DDR4 SDRAM
- Flash Memory
- 16 GB
Dimensions & Weight
- Width
- 44.2 cm
- Depth
- 32.7 cm
- Height
- 4.39 cm
- Weight
- 5.1 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 15 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 48 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
- Interfaces
- 4 x 100/1000/10G SFP+ uplink
- Interfaces
- 1 x USB-C console
- Interfaces
- 1 x console RJ-45
- Interfaces
- 1 x management
- Interfaces
- 1 x USB Type A host
Miscellaneous
- Included Accessories
- 2-Post Rack Kit
- Compliant Standards
- EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, EN 63000:2018, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CNS 15936: 2
- TAA Compliant
- Yes
Software / System Requirements
- OS Required
- AOS-CX
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE NW 6200F 48G 4SFP+ 740W is a 1U rack-mountable, stackable Layer 3 managed Gigabit Ethernet switch designed for enterprise access networks and campus deployments. Featuring 48 PoE+ Gigabit ports with a 740W power budget and four 10G SFP+ uplinks, it provides scalable power and high-speed connectivity for IP phones, access points, and surveillance systems.
Frequently asked questions
What is the HPE NW 6200F switch used for?
- This managed Layer 3 switch is designed for enterprise and campus access layers requiring high-density Gigabit connectivity and PoE+ power. It connects and powers networked devices like wireless access points, VoIP phones, and IP cameras while delivering 10GbE uplink aggregation.
How many units can be stacked together?
- The HPE 6200F platform supports stacking of up to 8 units in a single stack. This enables simplified network management, unified configuration, and scalable port density across your deployment.
Does the HPE NW 6200F switch come with a warranty?
- Yes, this switch comes with a local South African warranty via Server Hub. Local support ensures prompt assistance and hardware coverage for business-critical networking environments.
