SPT-438B4AA8CC1FA1

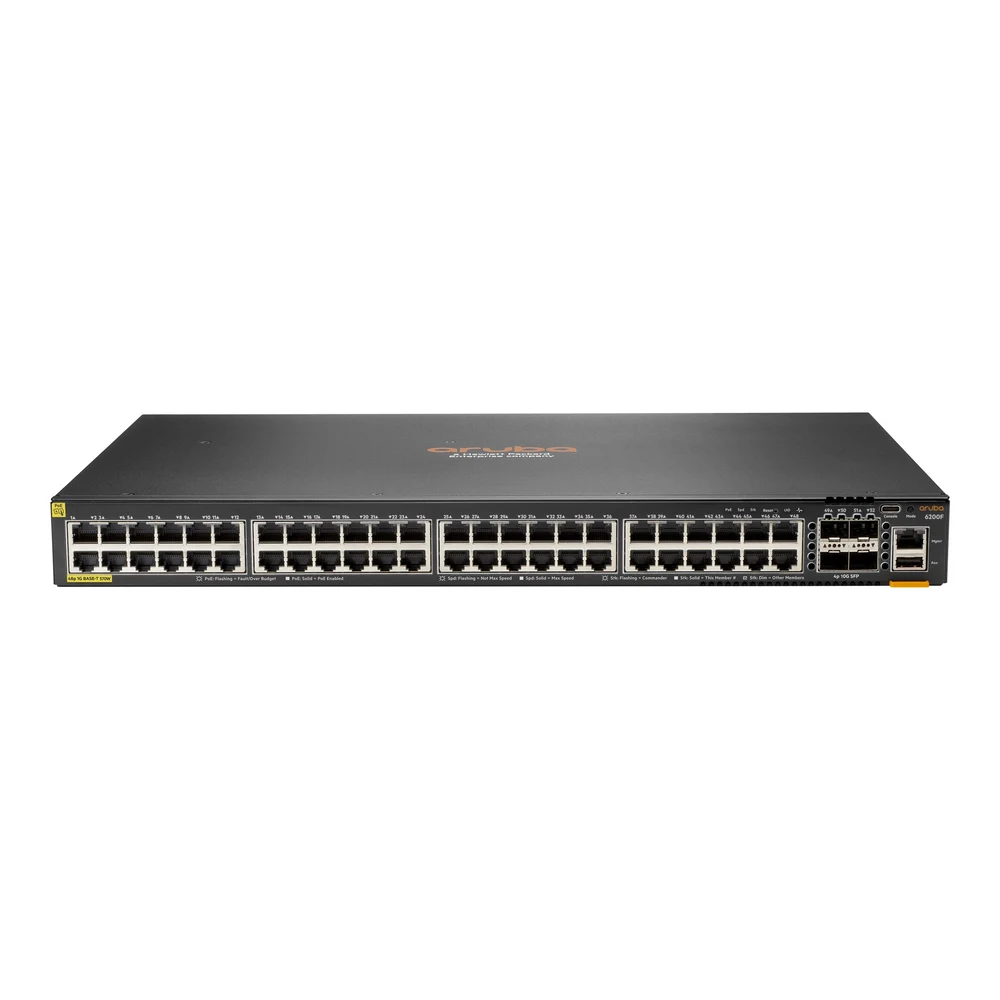

HPE NW 6200F 48G C4 4SFP+370W T Sw
R 193 570
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1
HPE NW 6200F 48G C4 4SFP+370W T Sw.
Device Type: Switch - 48 ports - L3 - Managed - stackable. Enclosure Type: Front and side to back rack-mountable 1U. Subtype: Gigabit Ethernet. Ports: 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink). Power Over Ethernet (PoE): PoE+. PoE Budget: 370 W. Performance: Latency (1 Gbps): 2.28 µs; Latency (10 Gbps): 1.46 µs. Capacity: Packet buffer size: 8 MB.
Specifications
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- RAM
- 8 GB DDR4 SDRAM
- Capacity
- Packet buffer size: 8 MB
Highlights
- 48 x Gigabit RJ-45 PoE+ ports with a 370 W total power budget
- 4 x 1G/10G SFP+ uplink interfaces for high-speed connectivity
- Layer 3 managed routing capabilities including OSPF and RIP
- Stackable architecture supporting up to 8 units in a single stack
- Compact 1U rack-mountable chassis with included 2-post rack kit
Power
- Power Device
- Internal power supply
General
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Front and side to back rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 370 W
- Performance
- Latency (1 Gbps): 2.28 µs
- Performance
- Latency (10 Gbps): 1.46 µs
- Capacity
- Packet buffer size: 8 MB
- MAC Address Table Size
- 32768 entries
- Jumbo Frame Support
- 9220 bytes
- Max Units In A Stack
- 8
- Routing Protocol
- RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD
- Remote Management Protocol
- RMON, CLI, MIB
- Encryption Algorithm
- SSL, FIPS 140-2
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Virtual Route Redundancy Protocol (VRRP) support, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), PoE Class 4, Rapid PVST+ (RPVST+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (UTM), Egress Queue Shaping (EQS), Address Resolution Protocol
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- RAM
- 8 GB DDR4 SDRAM
- Flash Memory
- 16 GB
Dimensions & Weight
- Width
- 44.2 cm
- Depth
- 32.7 cm
- Height
- 4.39 cm
- Weight
- 5.1 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 15 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 48 x 10/100/1000 Base-T RJ-45 PoE Class 4 - 30 W
- Interfaces
- 4 x 100/1000/10G SFP+ uplink
- Interfaces
- 1 x USB-C console
- Interfaces
- 1 x console RJ-45
- Interfaces
- 1 x management
- Interfaces
- 1 x USB Type A host
Miscellaneous
- Included Accessories
- 2-Post Rack Kit
- Compliant Standards
- EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, EN 63000:2018, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CNS 15936: 2
- TAA Compliant
- Yes
Software / System Requirements
- OS Required
- AOS-CX
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE 6200F 48G Class 4 PoE 4SFP+ 370W Switch is a 1U managed Layer 3 stackable Gigabit Ethernet switch built for enterprise campus and branch deployments. Featuring 48 PoE+ ports with a 370W power budget and four 10G SFP+ uplink ports, it delivers scalable connectivity, advanced routing, and robust security for modern corporate networks.
Frequently asked questions
What is the HPE 6200F 48G 370W switch used for?
- It is designed for enterprise access layers, campus networks, and branch offices requiring high-density Gigabit connectivity and device power. The switch delivers reliable Layer 3 routing, high-bandwidth 10G uplinks, and Class 4 PoE to power endpoints like IP phones, wireless access points, and surveillance cameras.
Can the HPE 6200F switch be stacked with other units?
- Yes, the switch supports stacking for up to 8 units, allowing administrators to manage multiple physical switches as a single logical entity. This simplifies network management, enhances scalability, and increases port density across your deployment.
Does this HPE switch come with a warranty in South Africa?
- Yes, purchasing through Server Hub ensures you receive genuine HPE networking hardware covered by a local South African warranty. Orders are priced in Rand (ZAR) and supported locally for reliable business deployment.
