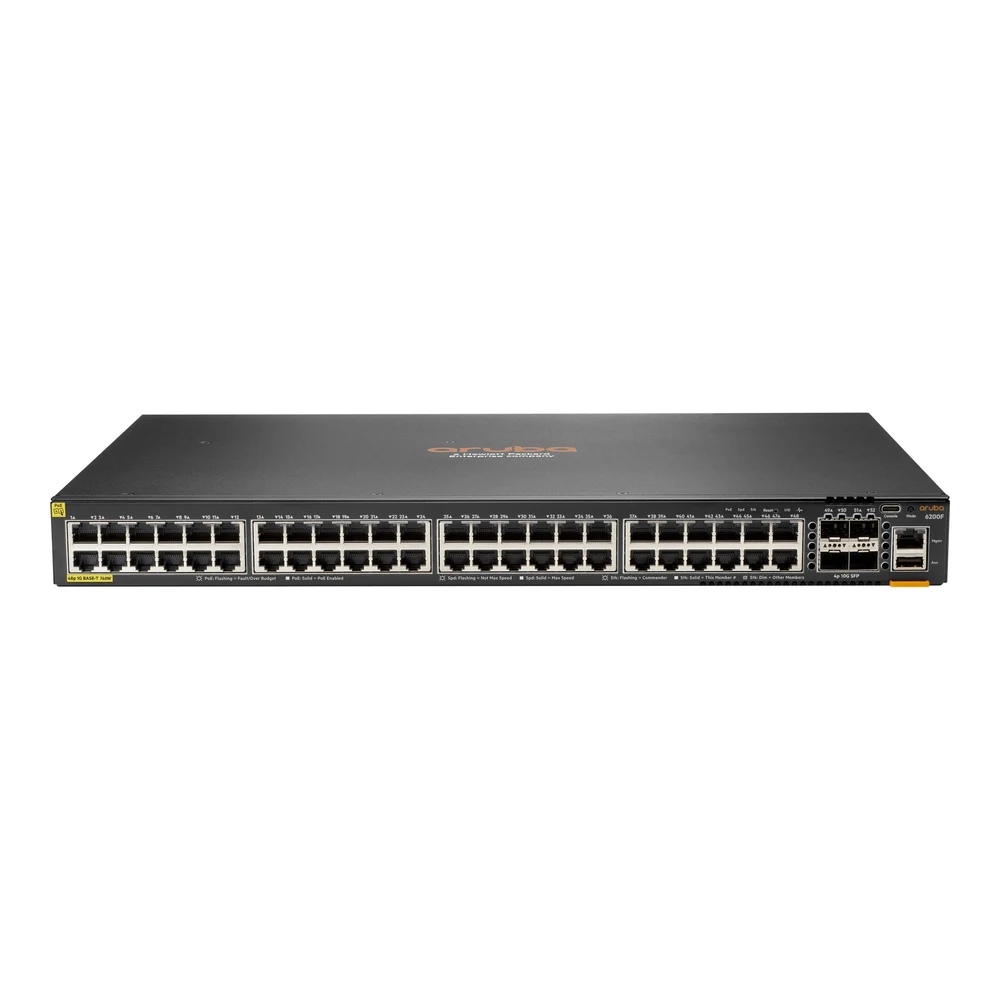

HPE NW 6200F 48G C4 4SFP 740W T Sw
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE NW 6200F 48G C4 4SFP 740W T Sw.
Device Type: Switch - 48 ports - L3 - Managed - stackable. Enclosure Type: Front and side to back rack-mountable 1U. Subtype: Gigabit Ethernet. Ports: 48 x 10/100/1000 (PoE+) + 4 x 100/1000 SFP. Power Over Ethernet (PoE): PoE+. PoE Budget: 740 W. Performance: Switching capacity: 176 Gbps; Throughput: 130.9 Mpps; Latency (1 Gbps): 2.28 µs; Latency (10 Gbps): 1.46 µs; Stacking bandwidth: 40 Gbps. Capacity: Packet buffer size: 8 MB; IPv4 ACL entries (ingress): 5120; IPv6 ACL entries (ingress): 1280; MAC ACL entries (ingress): 5120; IPv4 ACL entries (egress): 2048; IPv6 ACL entries (egress): 512; MAC ACL entries (egress): 2048; IPv4 host table capacity: 8192; IPv6 host table capacity: 8192; IPv4 routes (Unicast): 2048; IPv6 routes (Unicast): 1024; IGMP groups: 1024; MLD groups: 1024.
Specifications
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- RAM
- 8 GB DDR4 SDRAM
- Capacity
- Packet buffer size: 8 MB
Highlights
- 48 Gigabit RJ-45 ports with 740W PoE+ Class 4 power delivery
- 4 dedicated 100/1000 SFP uplink interfaces
- 176 Gbps switching capacity with 130.9 Mpps forwarding throughput
- Layer 3 routing support including OSPFv2, OSPFv3, and RIP-2
- Stacking capabilities supporting up to 8 units with 40 Gbps bandwidth
- Powered by a 1.8 GHz ARM Cortex-A72 processor and 8 GB DDR4 RAM
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 100-120/200-240 V (50/60 Hz)
- 80 PLUS Certification
- 80 PLUS Gold
General
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Front and side to back rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x 100/1000 SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 740 W
- Performance
- Switching capacity: 176 Gbps
- Performance
- Throughput: 130.9 Mpps
- Performance
- Latency (1 Gbps): 2.28 µs
- Performance
- Latency (10 Gbps): 1.46 µs
- Performance
- Stacking bandwidth: 40 Gbps
- Capacity
- Packet buffer size: 8 MB
- Capacity
- IPv4 ACL entries (ingress): 5120
- Capacity
- IPv6 ACL entries (ingress): 1280
- Capacity
- MAC ACL entries (ingress): 5120
- Capacity
- IPv4 ACL entries (egress): 2048
- Capacity
- IPv6 ACL entries (egress): 512
- Capacity
- MAC ACL entries (egress): 2048
- Capacity
- IPv4 host table capacity: 8192
- Capacity
- IPv6 host table capacity: 8192
- Capacity
- IPv4 routes (Unicast): 2048
- Capacity
- IPv6 routes (Unicast): 1024
- Capacity
- IGMP groups: 1024
- Capacity
- MLD groups: 1024
- MAC Address Table Size
- 32768 entries
- Jumbo Frame Support
- 9220 bytes
- Max Units In A Stack
- 8
- Routing Protocol
- RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD
- Remote Management Protocol
- RMON, CLI, MIB
- Encryption Algorithm
- SSL, FIPS 140-2
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Virtual Route Redundancy Protocol (VRRP) support, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), PoE Class 4, Rapid PVST+ (RPVST+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (UTM), Egress Queue Shaping (EQS), Address Resolution Protocol
- Compliant Standards
- IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- RAM
- 8 GB DDR4 SDRAM
- Flash Memory
- 16 GB
Dimensions & Weight
- Width
- 44.25 cm
- Depth
- 30.43 cm
- Height
- 4.37 cm
- Weight
- 5.13 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 48 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 - 30 W
- Interfaces
- 4 x 100/1000 SFP uplink
- Interfaces
- 1 x USB-C console
- Interfaces
- 1 x console RJ-45
- Interfaces
- 1 x management
- Interfaces
- 1 x USB Type A host
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Included Accessories
- 2-Post Rack Kit
- Compliant Standards
- EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, EN 63000:2018, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CNS 15936: 2
- TAA Compliant
- Yes
Software / System Requirements
- OS Required
- AOS-CX
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE NW 6200F 48G C4 4SFP 740W is an enterprise-class, 1U rack-mountable Layer 3 managed stackable switch designed for campus networks and branch offices. Equipped with 48 Gigabit PoE+ ports, four dedicated SFP uplinks, and a 740W power budget, it delivers high-performance access layer connectivity for IP phones, wireless access points, and IoT devices running on AOS-CX.
Frequently asked questions
What is the primary use case for the HPE NW 6200F switch?
- This switch is designed for enterprise access layers, campus networks, and branch deployments needing high-density Gigabit connectivity. Its 740W PoE+ capacity makes it ideal for powering networked surveillance cameras, VoIP systems, and Wi-Fi access points directly through Ethernet cabling.
Can the HPE 6200F switch be stacked?
- Yes, this model supports stacking for up to 8 units with a 40 Gbps stacking bandwidth. This allows network administrators to manage multiple physical switches as a single logical entity, simplifying network scalability and management.
Does this switch come with a warranty in South Africa?
- Yes, purchases made through Server Hub include local South African warranty coverage alongside the HPE limited lifetime hardware support. All orders are invoiced in South African Rand (ZAR) for straightforward local procurement.
