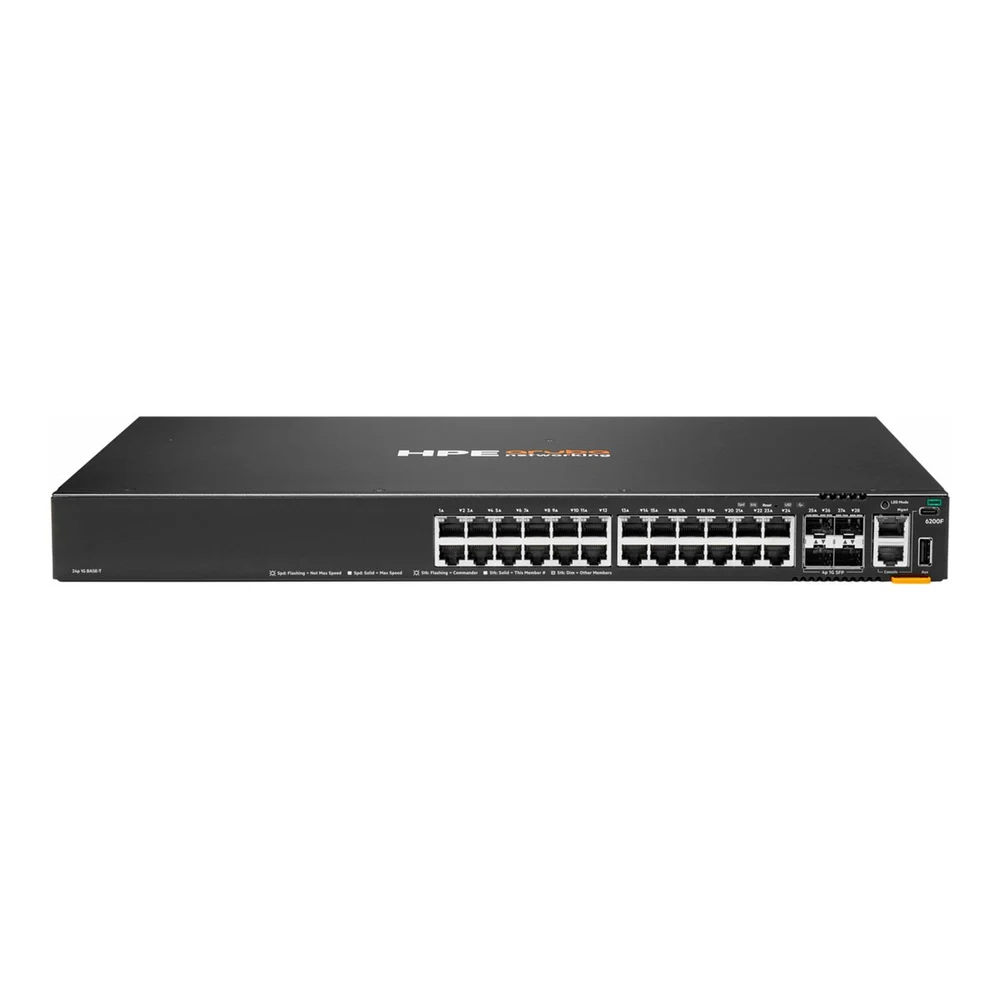

HPE NW 6200F 24G 4SFP T Sw
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE NW 6200F 24G 4SFP T Sw.
Device Type: Switch - 24 ports - L3 - Managed - stackable. Enclosure Type: Front and side to back rack-mountable 1U. Subtype: Gigabit Ethernet. Ports: 24 x 10/100/1000 + 4 x 100/1000 SFP. Performance: Switching capacity: 128 Gbps; Throughput: 95.2 Mpps; Latency (1 Gbps): 2.28 µs; Latency (10 Gbps): 1.46 µs; Stacking bandwidth: 40 Gbps. Capacity: Packet buffer size: 8 MB; IPv4 ACL entries (ingress): 5120; IPv6 ACL entries (ingress): 1280; MAC ACL entries (ingress): 5120; IPv4 ACL entries (egress): 2048; IPv6 ACL entries (egress): 512; MAC ACL entries (egress): 2048; IPv4 host table capacity: 8192; IPv6 host table capacity: 8192; IPv4 routes (Unicast): 2048; IPv6 routes (Unicast): 1024; IGMP groups: 1024; MLD groups: 1024. MAC Address Table Size: 32768 entries. Jumbo Frame Support: 9220 bytes.
Specifications
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- RAM
- 8 GB DDR4 SDRAM
- Capacity
- Packet buffer size: 8 MB
Highlights
- 24 Gigabit Ethernet RJ-45 ports and 4 dedicated 100/1000 SFP uplink ports
- 128 Gbps switching capacity with 95.2 Mpps forwarding throughput
- Stackable architecture supporting up to 8 units with 40 Gbps stacking bandwidth
- Layer 3 routing support including OSPFv2, OSPFv3, RIP-2, and VRRP
- Powered by a 1.8 GHz ARM Cortex-A72 processor, 8 GB DDR4 RAM, and 16 GB flash
- Compact 1U rack-mountable chassis with included 2-post rack kit
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 100-120/200-240 V (50/60 Hz)
- 80 PLUS Certification
- 80 PLUS Silver
General
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Front and side to back rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 4 x 100/1000 SFP
- Performance
- Switching capacity: 128 Gbps
- Performance
- Throughput: 95.2 Mpps
- Performance
- Latency (1 Gbps): 2.28 µs
- Performance
- Latency (10 Gbps): 1.46 µs
- Performance
- Stacking bandwidth: 40 Gbps
- Capacity
- Packet buffer size: 8 MB
- Capacity
- IPv4 ACL entries (ingress): 5120
- Capacity
- IPv6 ACL entries (ingress): 1280
- Capacity
- MAC ACL entries (ingress): 5120
- Capacity
- IPv4 ACL entries (egress): 2048
- Capacity
- IPv6 ACL entries (egress): 512
- Capacity
- MAC ACL entries (egress): 2048
- Capacity
- IPv4 host table capacity: 8192
- Capacity
- IPv6 host table capacity: 8192
- Capacity
- IPv4 routes (Unicast): 2048
- Capacity
- IPv6 routes (Unicast): 1024
- Capacity
- IGMP groups: 1024
- Capacity
- MLD groups: 1024
- MAC Address Table Size
- 32768 entries
- Jumbo Frame Support
- 9220 bytes
- Max Units In A Stack
- 8
- Routing Protocol
- RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD
- Remote Management Protocol
- RMON, CLI, MIB
- Encryption Algorithm
- SSL, FIPS 140-2
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Virtual Route Redundancy Protocol (VRRP) support, Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), Rapid PVST+ (RPVST+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (UTM), Egress Queue Shaping (EQS), Address Resolution Protocol
- Compliant Standards
- IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- RAM
- 8 GB DDR4 SDRAM
- Flash Memory
- 16 GB
Dimensions & Weight
- Width
- 44.25 cm
- Depth
- 28.45 cm
- Height
- 4.37 cm
- Weight
- 3.77 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 24 x 10/100/1000 Base-T RJ-45
- Interfaces
- 4 x 100/1000 SFP uplink
- Interfaces
- 1 x USB-C console
- Interfaces
- 1 x console RJ-45
- Interfaces
- 1 x management
- Interfaces
- 1 x USB Type A host
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Included Accessories
- 2-Post Rack Kit
- Compliant Standards
- EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CAN/CSA C22.2 No. 62368-1:1
- TAA Compliant
- Yes
Software / System Requirements
- OS Required
- AOS-CX
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE NW 6200F 24G 4SFP T is a stackable 1U rack-mountable Layer 3 managed Gigabit Ethernet switch designed for enterprise campus and branch deployments. Featuring 24 Gigabit RJ-45 ports, 4 SFP uplinks, and a 128 Gbps switching capacity, it provides scalable, high-performance networking powered by the AOS-CX operating system.
Frequently asked questions
What is the HPE NW 6200F 24G 4SFP switch used for?
- The HPE NW 6200F switch is built for enterprise access and branch network deployments requiring robust Layer 3 routing and Gigabit connectivity. It allows organisations to connect end-user devices across 24 Gigabit Ethernet ports while utilizing 4 SFP transceiver slots for high-speed uplinks.
Can the HPE NW 6200F switch be stacked?
- Yes, this switch supports stacking of up to 8 units in a single stack. It delivers a stacking bandwidth of 40 Gbps to simplify management and scale network port density.
Does the switch come with a warranty in South Africa?
- Yes, purchases made through Server Hub include local South African warranty support. This ensures direct local assistance should you require hardware maintenance or service.
