HPE MSR954-W 1GbE SFP (WW) Router
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

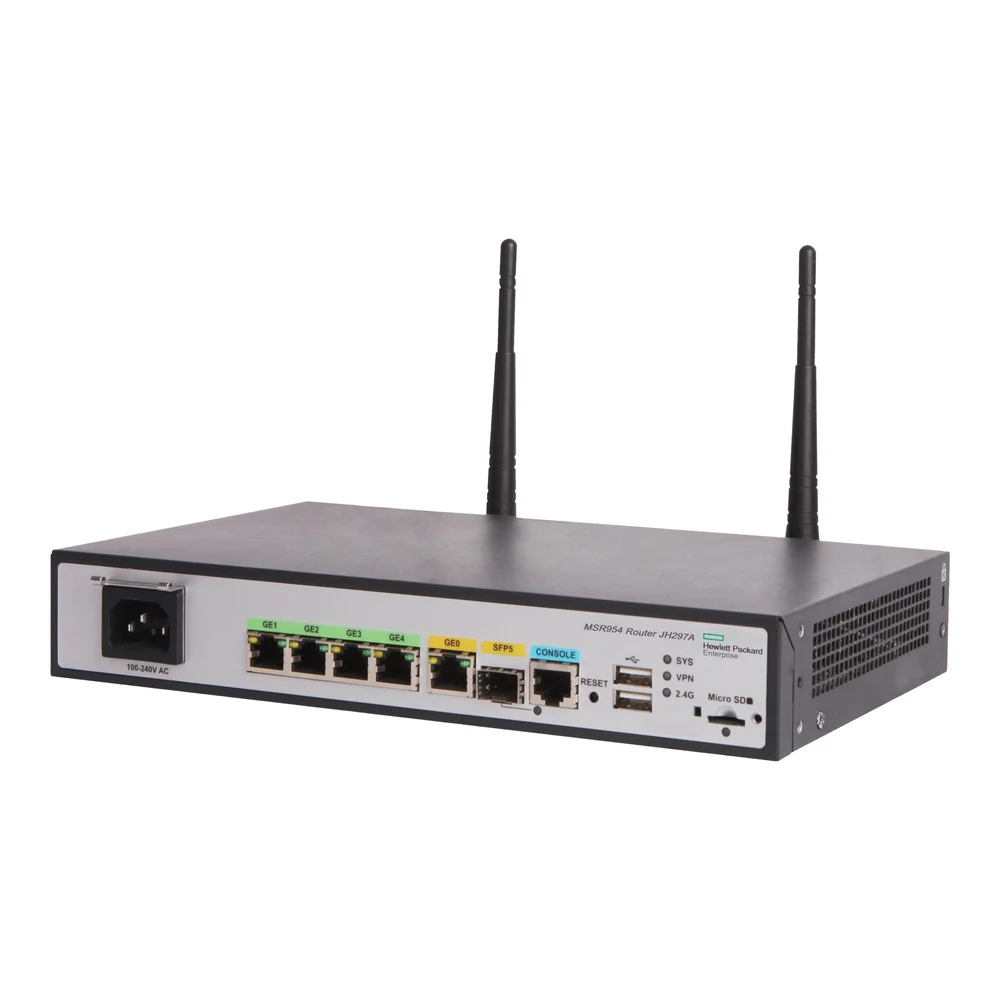

HPE MSR954-W 1GbE SFP (WW) Router.
Device Type: Wireless router - 4-port switch (integrated). Enclosure Type: Rack-mountable - 1U. Connectivity Technology: Wireless, wired. Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Frequency Band: 2.4 GHz. Performance: Forwarding performance: up to 300 Kpps; Encryption throughput: up to 160 Mbps; Throughput (64-byte packet size): up to 300 Kpps. Capacity: VPN tunnels: 100; IPv4 routing table entries: 10000; IPv6 routing table entries: 5000; IPv4 forwarding table entries: 10000; IPv6 forwarding table entries: 5000. Network / Transport Protocol: TCP/IP, UDP/IP, NTP, IPSec, ARP.
Specifications
- Processor
- 1 x Marvell A370 800 MHz
- RAM
- 1 GB DDR3 SDRAM
Highlights
- Integrated 4-port Gigabit Ethernet switch plus 1GbE WAN and 1GbE SFP uplink
- Built-in 2.4 GHz 802.11b/g/n wireless connectivity
- Routing and forwarding performance up to 300 Kpps with 160 Mbps encryption throughput
- Supports up to 100 concurrent IPSec VPN tunnels
- Powered by an 800 MHz processor with 1 GB DDR3 RAM and Comware v7 OS
- Compact 1U rack-mountable form factor
Power
- Voltage Required
- AC 120/230 V
General
- Device Type
- Wireless router - 4-port switch (integrated)
- Enclosure Type
- Rack-mountable - 1U
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Frequency Band
- 2.4 GHz
- Performance
- Forwarding performance: up to 300 Kpps
- Performance
- Encryption throughput: up to 160 Mbps
- Performance
- Throughput (64-byte packet size): up to 300 Kpps
- Capacity
- VPN tunnels: 100
- Capacity
- IPv4 routing table entries: 10000
- Capacity
- IPv6 routing table entries: 5000
- Capacity
- IPv4 forwarding table entries: 10000
- Capacity
- IPv6 forwarding table entries: 5000
- Network / Transport Protocol
- TCP/IP, UDP/IP, NTP, IPSec, ARP
- Routing Protocol
- OSPF, EGP, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, OSPFv3, Bidirectional PIM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, BGP-4+, BGP+
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, TFTP, CLI
- Encryption Algorithm
- DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- NAT support, VLAN support, port mirroring, Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), Unicast Reverse Path Forwarding (URPF), DHCP relay, Management Information Base (MIB), port isolation, packet storm protection, Class of Service (CoS), Loopback, Dynamic Virtual
- Compliant Standards
- IEEE 802.2, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, ETSI, EN55022, ICES-003 Class B, FCC Part 68 / CS03 Issue 8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FDA, FCC CFR47 Part 15 B, EN 60825-1, AS/NZS 60950, ANSI C63.4, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 61000-4-11:2004, EMC
- Processor
- 1 x Marvell A370 800 MHz
- RAM
- 1 GB DDR3 SDRAM
- Flash Memory
- 256 MB
Dimensions & Weight
- Width
- 26.6 cm
- Depth
- 16.1 cm
- Height
- 4.36 cm
- Weight
- 1 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 92% (non-condensing)
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 1000 - SFP (mini-GBIC)
- Interfaces
- WAN: 1 x Ethernet 1000 - RJ-45
- Interfaces
- LAN: 4 x Ethernet 1000 - RJ-45
- Interfaces
- 2 x USB 2.0
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Software / System Requirements
- OS Provided
- Comware v7
Related Products
Mellanox ConnectX-3 CX353A-FCBT Single-Port 40GB QSFP+ PCIe 3.0 x8 NIC Half Hght
Teltonika TRB145 LTE Cat1 RS485 Gateway
Teltonika TRB142 LTE Cat 1, 1 x LAN (1 Gbps), RS232 Gateway
Teltonika RUTX12 Cat 6 x 2 Industrial Router,Dual-SIM, Wi-FI 5, 1 x WAN(1 Gbps), 4 x LAN(1 Gbps), MQTT, MODBUS
The HPE MSR954-W 1GbE SFP Router is a compact 1U rack-mountable branch router designed for small to medium businesses requiring integrated routing, switching, and wireless connectivity. It features a Gigabit SFP uplink, a Gigabit WAN port, an integrated 4-port Gigabit switch, and 2.4 GHz 802.11n Wi-Fi powered by HPE Comware v7 software.
Frequently asked questions
What is the HPE MSR954-W router used for?
- The HPE MSR954-W is designed to deliver converged routing, wired switching, wireless access, and security for branch offices and small enterprise networks. It handles WAN connectivity via copper Gigabit or fibre SFP while providing local wired and wireless network distribution.
Does the HPE MSR954-W support VPN connections?
- Yes, this router supports advanced security features including IPSec tunnelling with capacity for up to 100 VPN tunnels. It delivers up to 160 Mbps of hardware encryption throughput supporting AES, DES, and 3DES algorithms.
Does the HPE MSR954-W come with a warranty in South Africa?
- Yes, this unit comes with a standard 1-year limited warranty supported locally in South Africa through Server Hub. Orders are dispatched locally with pricing shown in South African Rand.
