HPE MSR3024 AC Router
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

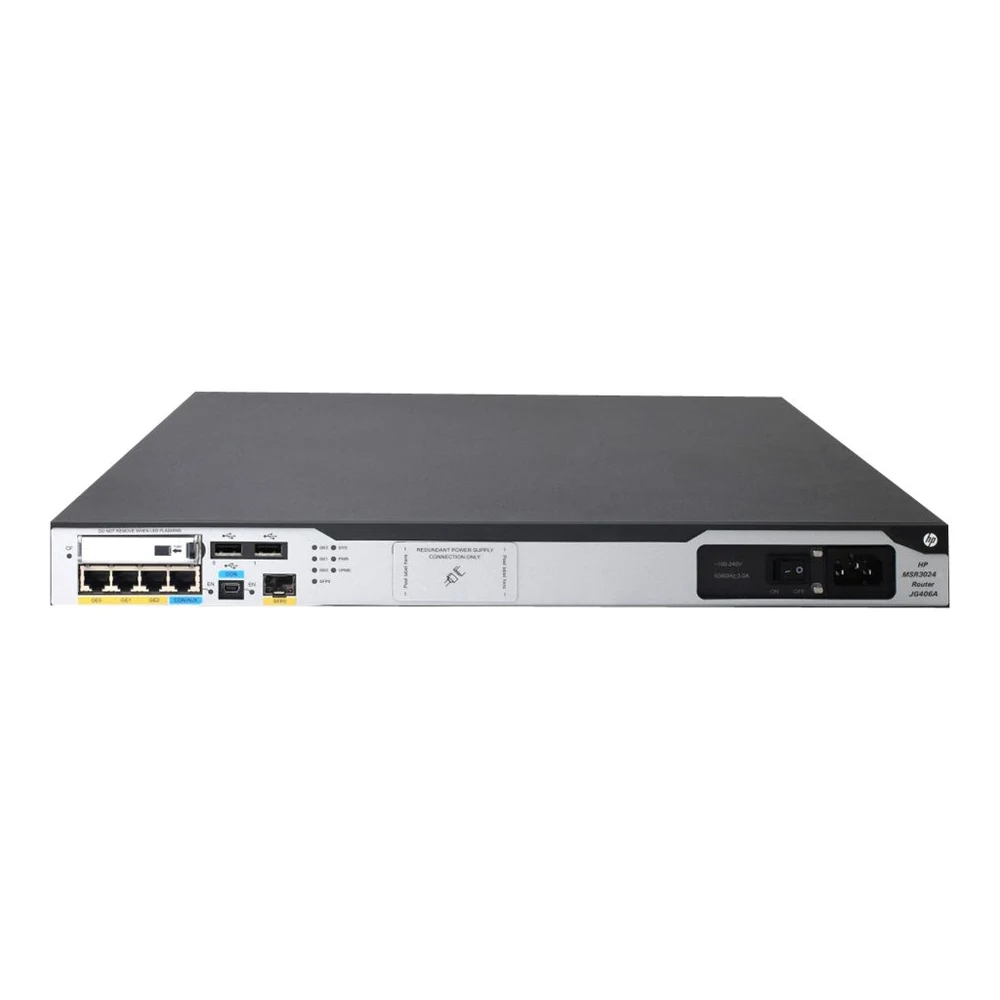

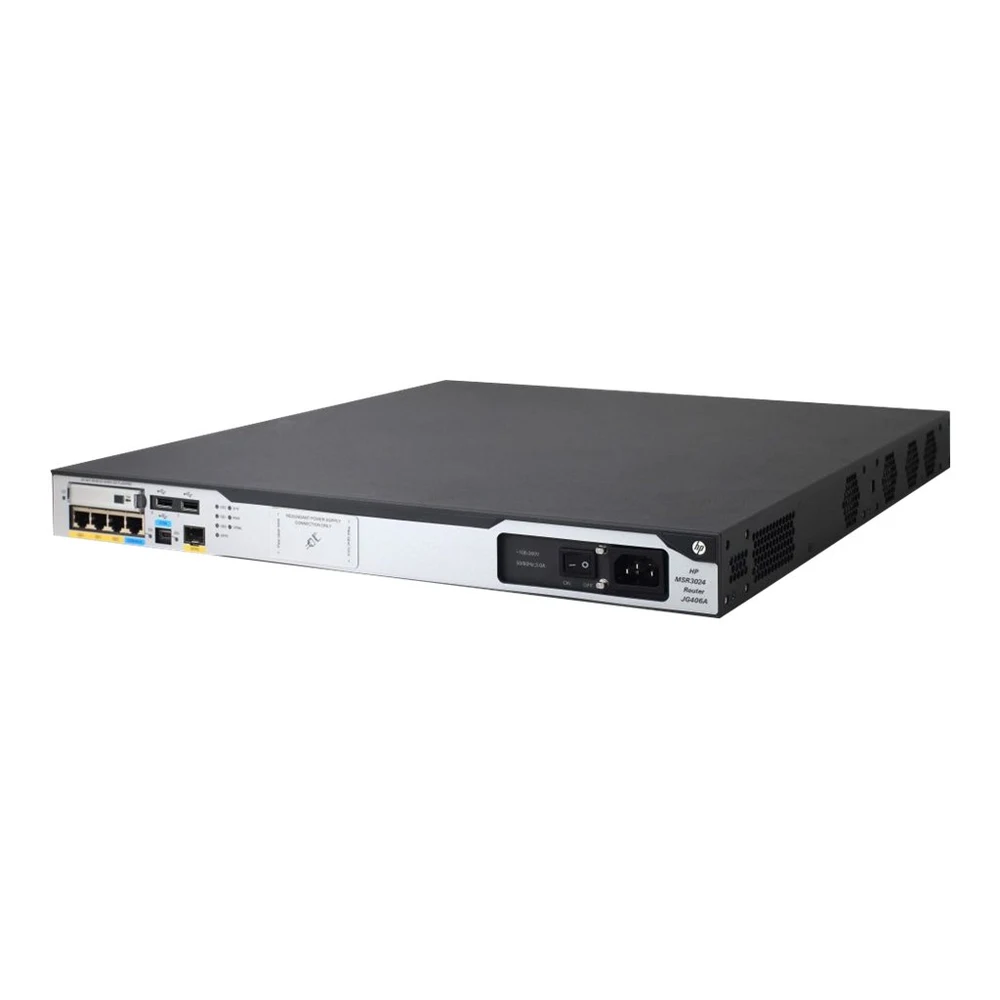

HPE MSR3024 AC Router.
Device Type: Router. Enclosure Type: Desktop, rack-mountable - modular - 1U. Connectivity Technology: Wired. Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet. Performance: Throughput: up to 2.6 Mpps. Capacity: Routing table entries: 500000; Forwarding table entries: 500000. Network / Transport Protocol: TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP. Routing Protocol: OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD).
Specifications
- Processor
- 1 x 1 GHz
- RAM
- 2 GB (installed) / 4 GB (max) - DDR3 SDRAM
Highlights
- Throughput performance of up to 2.6 Mpps
- Modular 1U chassis with 2 HMIM and 4 SIC expansion slots
- 3 Gigabit Ethernet RJ-45 ports and 1 Gigabit SFP port
- 500,000 routing and forwarding table entries
- Comprehensive routing support including BGP, OSPF, and MPLS
- 2 GB DDR3 SDRAM installed, expandable up to 4 GB
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
General
- Device Type
- Router
- Enclosure Type
- Desktop, rack-mountable - modular - 1U
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- Throughput: up to 2.6 Mpps
- Capacity
- Routing table entries: 500000
- Capacity
- Forwarding table entries: 500000
- Network / Transport Protocol
- TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP
- Routing Protocol
- OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD)
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
- Encryption Algorithm
- MD5, TLS
- Authentication Method
- RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
- Features
- Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Bidirectional Forwarding Det
- Compliant Standards
- IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 68, EMC, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, EN 60825-1, AS/NZS 60950, ANSI C63.4-2003, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 300 386
- Processor
- 1 x 1 GHz
- RAM
- 2 GB (installed) / 4 GB (max) - DDR3 SDRAM
- Flash Memory
- 256 MB
Dimensions & Weight
- Width
- 44 cm
- Depth
- 48 cm
- Height
- 4.42 cm
- Weight
- 7.9 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 90% (non-condensing)
Expansion / Connectivity
- Interfaces
- 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45
- Interfaces
- 1 x Ethernet 1000 - SFP (mini-GBIC)
- Interfaces
- USB 2.0: 2 x 4 pin USB Type A
- Interfaces
- Management: 1 x auxiliary
- Interfaces
- Management: 1 x USB
- Expansion Slots
- 1 (total) / 1 (free) x expansion slot
- Expansion Slots
- 2 (total) / 2 (free) x High-performance Multifunction Interface Module (HMIM)
- Expansion Slots
- 4 (total) / 4 (free) x Smart Interface Card (SIC)
- Expansion Slots
- 1 (total) / 1 (free) x CompactFlash
- Installed Modules Qty (Max)
- 0 (installed) / 7 (max)
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 49.61 years
Related Products
Mellanox ConnectX-3 CX353A-FCBT Single-Port 40GB QSFP+ PCIe 3.0 x8 NIC Half Hght
Teltonika TRB145 LTE Cat1 RS485 Gateway
Teltonika TRB142 LTE Cat 1, 1 x LAN (1 Gbps), RS232 Gateway
Teltonika RUTX12 Cat 6 x 2 Industrial Router,Dual-SIM, Wi-FI 5, 1 x WAN(1 Gbps), 4 x LAN(1 Gbps), MQTT, MODBUS
The HPE MSR3024 AC Router is a 1U rack-mountable, modular enterprise router designed for medium-to-large branch offices and campus networks. Delivering routing throughput of up to 2.6 Mpps with advanced MPLS, IPv6, and dynamic routing support, it provides flexible enterprise connectivity through integrated Gigabit Ethernet ports and modular HMIM and SIC expansion slots.
Frequently asked questions
What is the HPE MSR3024 AC Router used for?
- The HPE MSR3024 AC Router is used to manage enterprise branch routing, campus networking, and secure WAN connectivity. It offers advanced dynamic routing protocols such as BGP and OSPF alongside MPLS and VPN capabilities for reliable traffic management.
What expansion options are available on the HPE MSR3024?
- The router features a modular 1U design equipped with two High-performance Multifunction Interface Module slots and four Smart Interface Card slots. It also includes a CompactFlash slot and an additional expansion slot to adapt to changing network requirements.
Does the HPE MSR3024 AC Router come with a warranty?
- Yes, this router includes a 1-year limited warranty supported locally in South Africa through Server Hub. Local support ensures prompt assistance for your networking hardware.
