HPE MSR3016 AC Router
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

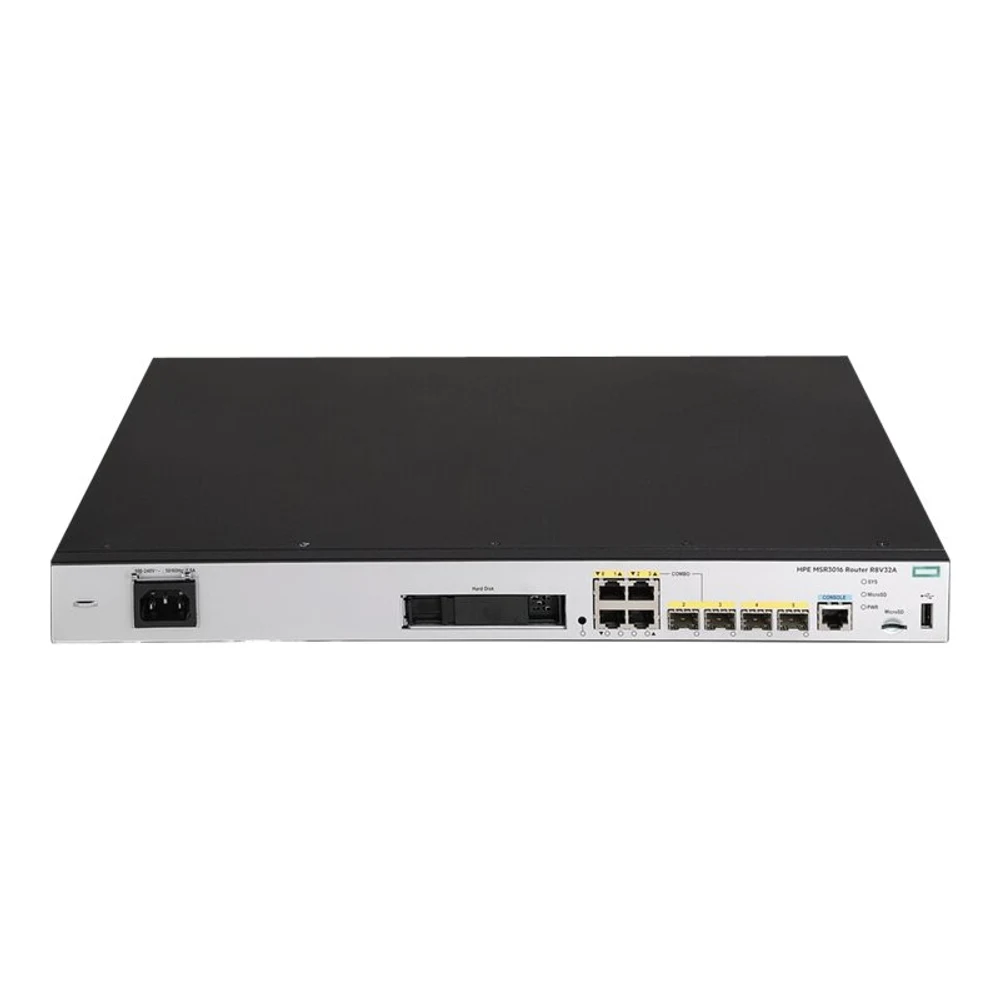

HPE MSR3016 AC Router.
Device Type: Router. Enclosure Type: Rack-mountable - 1U. Connectivity Technology: Wired. Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet. Performance: Throughput (64-byte packet size): 2.2 Mbps. Capacity: IPv4 routing entries: 500000; IPv6 routing entries: 500000; IPv4 forwarding table entries: 500000; IPv6 forwarding table entries: 500000. Network / Transport Protocol: TCP/IP, UDP/IP, L2TP, RSVP, NTP, ICMP/IP, IPSec, ARP, FTP, DHCP, DNS, SFTP. Routing Protocol: EGP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, IGMPv3, OSPF for IPv6, GRE, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLDv2, MLD, BGP-4+, MPLS, VRRPv3, CIDR, BGP+, URPF.
Specifications
- Processor
- 1 x 1.2 GHz
- RAM
- 2 GB DDR3 SDRAM
Highlights
- 1U rack-mountable chassis with internal AC power supply
- Supports 500,000 IPv4 and 500,000 IPv6 routing table entries
- Four Gigabit RJ-45 WAN ports and four Gigabit SFP+ interfaces
- Four Smart Interface Card (SIC) expansion slots for modular connectivity
- Comprehensive routing support including BGP-4, OSPFv3, IS-IS, and MPLS
- Robust security featuring IPSec, 256-bit AES encryption, and IPS support
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Voltage Required
- AC 100-120/200-240 V
- Power Consumption Operational
- 100 Watt
General
- Device Type
- Router
- Enclosure Type
- Rack-mountable - 1U
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- Throughput (64-byte packet size): 2.2 Mbps
- Capacity
- IPv4 routing entries: 500000
- Capacity
- IPv6 routing entries: 500000
- Capacity
- IPv4 forwarding table entries: 500000
- Capacity
- IPv6 forwarding table entries: 500000
- Network / Transport Protocol
- TCP/IP, UDP/IP, L2TP, RSVP, NTP, ICMP/IP, IPSec, ARP, FTP, DHCP, DNS, SFTP
- Routing Protocol
- EGP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, IGMPv3, OSPF for IPv6, GRE, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLDv2, MLD, BGP-4+, MPLS, VRRPv3, CIDR, BGP+, URPF
- Remote Management Protocol
- SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Encryption Algorithm
- DES, Triple DES, MD5, IKE, TLS, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, ISAKMP, CRL
- Authentication Method
- Secure Shell (SSH), RADIUS, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2)
- Features
- NAT support, BOOTP support, MPLS support, VLAN support, traffic shaping, DiffServ support, IPv6 support, Intrusion Prevention System (IPS), Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), L
- Compliant Standards
- IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, CISPR 22 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 68, ICES-003 Class A, CS-03, EN 61000-4-5, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60825-1, AS/NZS 60950, ANSI C63.4-2003, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 61000-4-11:2004, EMC 2004/108/EC, EN 55022 Class A, EN 60950-1/A11, FDA 21 CFR, EN 61000-4-8:2001,
- Processor
- 1 x 1.2 GHz
- RAM
- 2 GB DDR3 SDRAM
- Flash Memory
- 512 MB
Dimensions & Weight
- Width
- 44 cm
- Depth
- 36 cm
- Height
- 4.36 cm
- Weight
- 4.7 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- LAN: 4 x 10Base-T/100Base-TX/1000Base-T - SFP+
- Interfaces
- WAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
- Interfaces
- USB: 1 x 4 pin USB Type A
- Interfaces
- Console: 1 x RJ-45
- Expansion Slots
- 4 (total) / 4 (free) x Smart Interface Card (SIC)
- Installed Modules Qty (Max)
- 0 (installed) / 4 (max)
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 75.17 years
Related Products
Mellanox ConnectX-3 CX353A-FCBT Single-Port 40GB QSFP+ PCIe 3.0 x8 NIC Half Hght
Teltonika TRB145 LTE Cat1 RS485 Gateway
Teltonika TRB142 LTE Cat 1, 1 x LAN (1 Gbps), RS232 Gateway
Teltonika RUTX12 Cat 6 x 2 Industrial Router,Dual-SIM, Wi-FI 5, 1 x WAN(1 Gbps), 4 x LAN(1 Gbps), MQTT, MODBUS
The HPE MSR3016 AC Router is a 1U rack-mountable wired networking router designed for enterprise branch offices and campus networks. Powered by a 1.2 GHz processor and 2 GB DDR3 RAM, it handles up to 500,000 IPv4 and IPv6 routing entries, delivering flexible routing protocols, hardware-based encryption, and expandable connectivity via four Smart Interface Card slots.
Frequently asked questions
What is the HPE MSR3016 AC Router used for?
- The HPE MSR3016 AC Router is designed for enterprise routing, branch office interconnectivity, and secure WAN edge deployment. It manages complex network traffic using dynamic routing protocols such as BGP, OSPF, and MPLS while offering hardware encryption for secure data transfer.
How many expansion slots are available on the HPE MSR3016?
- This router includes four available Smart Interface Card (SIC) expansion slots. These allow network administrators to add optional interface modules to adapt the device to changing network infrastructure requirements.
Does the HPE MSR3016 AC Router include a warranty?
- Yes, this unit comes supported by a 1-year limited warranty backed locally in South Africa through Server Hub.
