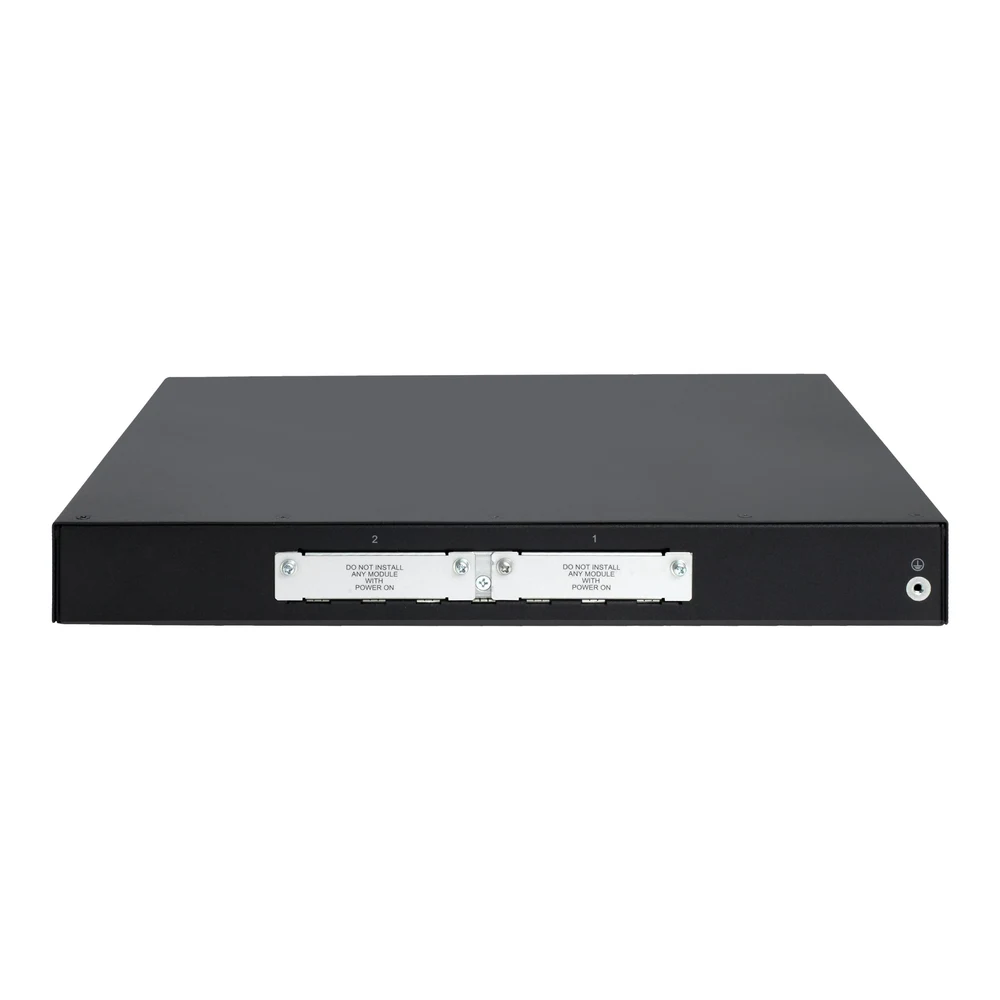

HPE MSR1002X 4 AC Router
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE MSR1002X 4 AC Router.
Device Type: Router - 4-port switch (integrated). Enclosure Type: Desktop, rack-mountable - 1U. Connectivity Technology: Wired. Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet. Performance: Throughput: 500 Kpps. Capacity: IPv4 routing table entries: 90000; IPv4 forwarding table entries: 90000; IPv6 routing table entries: 90000; IPv6 forwarding table entries: 90000. Network / Transport Protocol: TCP/IP, L2TP, RSVP, NTP, PPPoE. Routing Protocol: OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng.
Specifications
- Processor
- 1 x 1.6 GHz
- RAM
- 1 GB DDR3 SDRAM
Highlights
- 500 Kpps throughput with 1.6 GHz processor and 1 GB DDR3 RAM
- Integrated 4-port Gigabit Ethernet switch with dedicated Gigabit WAN and SFP interfaces
- Support for comprehensive routing protocols including BGP-4, OSPFv3, IS-IS, and RIPng
- Two open Smart Interface Card (SIC) expansion slots for modular connectivity
- Compact 1U rack-mountable and desktop form factor with included rack kit
- Internal AC power supply with low 30W operational power consumption
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 100/240 V (50/60 Hz)
- Power Consumption Operational
- 30 Watt
General
- Device Type
- Router - 4-port switch (integrated)
- Enclosure Type
- Desktop, rack-mountable - 1U
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- Throughput: 500 Kpps
- Capacity
- IPv4 routing table entries: 90000
- Capacity
- IPv4 forwarding table entries: 90000
- Capacity
- IPv6 routing table entries: 90000
- Capacity
- IPv6 forwarding table entries: 90000
- Network / Transport Protocol
- TCP/IP, L2TP, RSVP, NTP, PPPoE
- Routing Protocol
- OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, Telnet, SNMP 3, HTTP, SSH, CLI
- Encryption Algorithm
- MD5, TLS
- Authentication Method
- RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
- Features
- Weighted Fair Queuing (WFQ), Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping
- Compliant Standards
- IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, FCC Part 68, ICES-003 Class A, CS-03, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, FDA, VCCI Class A, AS/NZS CISPR 22, GB 4943.1, CAN/CSA-C22.2 No. 60950-1
- Processor
- 1 x 1.6 GHz
- RAM
- 1 GB DDR3 SDRAM
- Flash Memory
- 256 MB
Dimensions & Weight
- Width
- 30 cm
- Depth
- 4.42 cm
- Height
- 36 cm
- Weight
- 4.85 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
- Interfaces
- WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
- Interfaces
- Management: 1 x RJ-45
- Interfaces
- USB 2.0: 1 x
- Interfaces
- LAN: 1 x Ethernet 1000 - SFP (mini-GBIC)
- Interfaces
- Serial: 1 x
- Expansion Slots
- 2 (total) / 2 (free) x Smart Interface Card (SIC)
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Miscellaneous
- Rack Mounting Kit
- Included
Related Products
Mellanox ConnectX-3 CX353A-FCBT Single-Port 40GB QSFP+ PCIe 3.0 x8 NIC Half Hght
Teltonika TRB145 LTE Cat1 RS485 Gateway
Teltonika TRB142 LTE Cat 1, 1 x LAN (1 Gbps), RS232 Gateway
Teltonika RUTX12 Cat 6 x 2 Industrial Router,Dual-SIM, Wi-FI 5, 1 x WAN(1 Gbps), 4 x LAN(1 Gbps), MQTT, MODBUS
The HPE MSR1002X 4 AC Router is a 1U rack-mountable and desktop wired router featuring an integrated 4-port Gigabit switch and 500 Kpps throughput. Built for enterprise branch and edge networking, it provides robust IPv4 and IPv6 dynamic routing, modular SIC expansion slots, and enterprise-grade network security management.
Frequently asked questions
What is the HPE MSR1002X 4 AC Router used for?
- The HPE MSR1002X is designed for enterprise branch offices and small-to-medium business networks requiring reliable, high-performance routing. It delivers up to 500 Kpps throughput, handles complex IPv4 and IPv6 routing tables, and integrates switching and WAN routing into a single device.
What network interfaces and expansion slots are available on this router?
- The router features four Gigabit Ethernet LAN ports, one Gigabit RJ-45 WAN port, one Gigabit SFP port, a serial port, and a USB 2.0 port. It also includes two free Smart Interface Card (SIC) expansion slots for additional interface customisation.
Does this HPE router include a local warranty?
- Yes, the HPE MSR1002X 4 AC Router comes backed by a local South African warranty when purchased through Server Hub, ensuring reliable support for your enterprise networking infrastructure.
