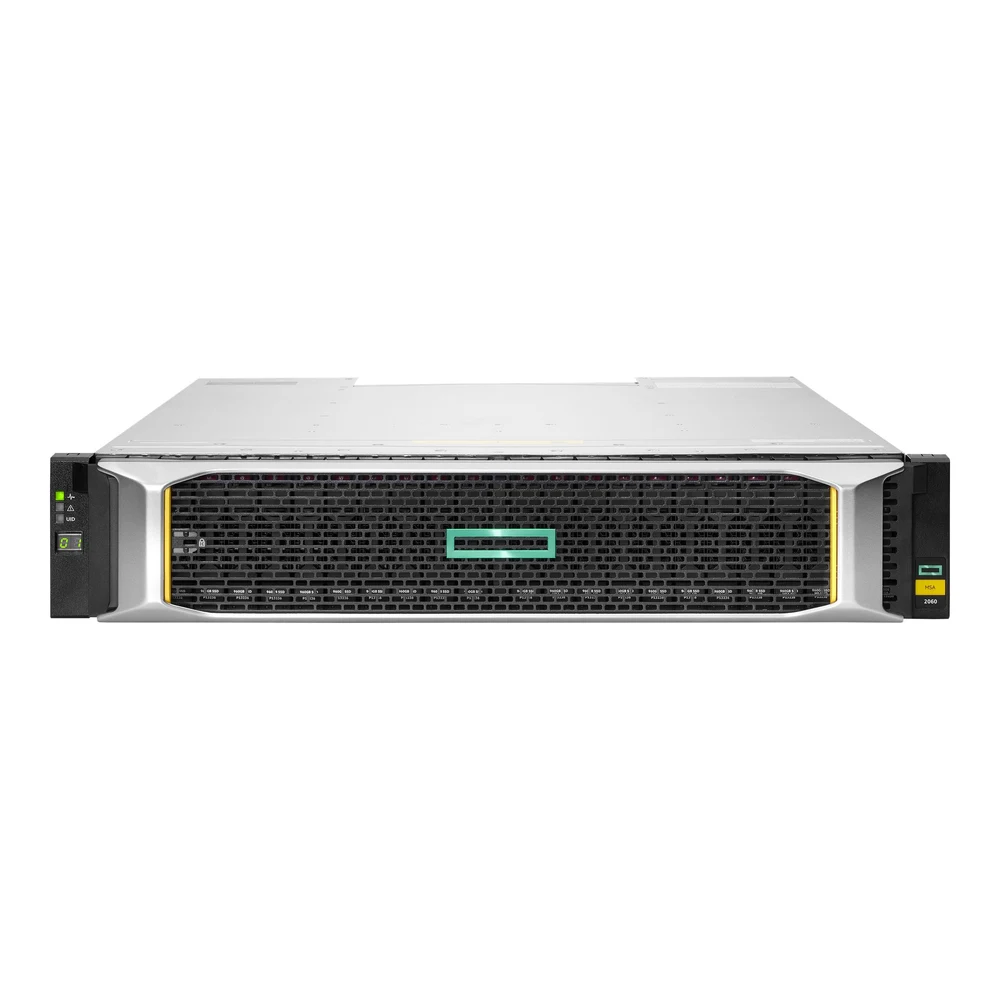

HPE MSA 2060 12Gb SAS SFF TAA Strg
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE MSA 2060 12Gb SAS SFF TAA Strg.
Device Type: Hard drive array. Enclosure Type: Rack-mountable - 2U. Installed Devices / Modules Qty: 6. Supported Devices / Modules Qty: 24. Supported Drives: SAS-3. Total Array Capacity: 86.4 TB. Max Supported Capacity: 921.6 TB. HDD Array External Interface: SAS 12Gb/s.
Specifications
- CPU
- No CPU
- Capacity
- 6 x 14.4 TB
Highlights
- 2U rack-mountable SAS 12Gb/s storage array with 24 SFF drive bays
- 86.4 TB total installed capacity with 6 x 10000 rpm SAS-3 hard drives
- Dual RAID controllers supporting RAID 0, 1, 3, 5, 6, 10, and 50
- Scalable architecture supporting up to 921.6 TB maximum capacity
- Dual hot-plug 764W redundant power supplies in a 1+1 scheme
- TAA compliant with integrated FIPS encryption support
Processor
- CPU
- No CPU
Storage
- Total Array Capacity
- 86.4 TB
- Max Supported Capacity
- 921.6 TB
- HDD Array External Interface
- SAS 12Gb/s
- Maximum LUNs
- 512
Power
- Power Device
- 2 x internal power supply - hot-plug
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Power Provided
- 764 Watt
Chassis
- Installed Devices / Modules Qty
- 6
- Supported Devices / Modules Qty
- 24
- Supported Drives
- SAS-3
General
- Device Type
- Hard drive array
- Enclosure Type
- Rack-mountable - 2U
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 50.8 cm
- Height
- 8.9 cm
- Weight
- 5 kg
Environmental Parameters
- Sound Emission
- 74 dBA
Environmental Standards
- ENERGY STAR Certified
- Yes
Expansion / Connectivity
- Expansion Bays
- 24 (total) / 18 (free) - 2.5" SFF
- Interfaces
- 8 x SAS 12Gb/s
- Interfaces
- 2 x mini-USB 2.0 (management)
- Interfaces
- 2 x Ethernet 1000Base-T (management) - RJ-45
Hard Drive
- Type
- HDD
- Capacity
- 6 x 14.4 TB
- Spindle Speed
- 10000 rpm
- Features
- FIPS Encryption
Manufacturer Warranty
- Service & Support
- Limited warranty - parts - 3 years
Miscellaneous
- Features
- SNMP support, SMTP support
- TAA Compliant
- Yes
- Included Accessories
- Rack mounting kit
Storage Controller
- Type
- RAID
- Installed Qty
- 2
- Interface Type
- SAS 12Gb/s
- Data Transfer Rate
- 1.2 GBps
- Cache / Buffer Size (Max)
- 24 GB
- Max Storage Devices Qty
- 240
- RAID Level
- RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50
Storage Controller (2nd)
- Installed Qty
- 2
System Requirements
- OS Required
- HP-UX, SuSe Linux, Apple MacOS X, Microsoft Windows, Red Hat Enterprise Linux, HP OpenVMS, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 with Hyper-V, VMware ESXi 6.x
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE MSA 2060 12Gb SAS SFF TAA Storage Array is a high-performance 2U rack-mountable hard drive array designed for enterprise virtualisation and data-heavy business workloads. Featuring 86.4 TB of installed SAS-3 storage across six 10,000 rpm drives, dual RAID controllers with 24 GB cache, and redundant power supplies, it delivers resilient, scalable storage for modern IT environments.
Frequently asked questions
What is the HPE MSA 2060 12Gb SAS storage array used for?
- The HPE MSA 2060 is designed for businesses requiring high-speed, direct-attached or SAN storage for virtualised environments, databases, and heavy file-sharing workloads. It connects via 12Gb/s SAS interfaces to deliver fast throughput and reliable shared storage across servers.
Can the storage capacity of the HPE MSA 2060 be expanded?
- Yes, the array includes 18 free 2.5-inch SFF bays out of the 24 internal slots, allowing you to add more SAS-3 hard drives. The system can scale up to a maximum supported capacity of 921.6 TB with compatible expansion enclosures.
Does this HPE MSA 2060 come with a warranty in South Africa?
- Yes, it includes a 3-year limited parts warranty backed locally in South Africa through Server Hub. Support and replacement parts are handled directly to ensure minimal downtime for your business infrastructure.
