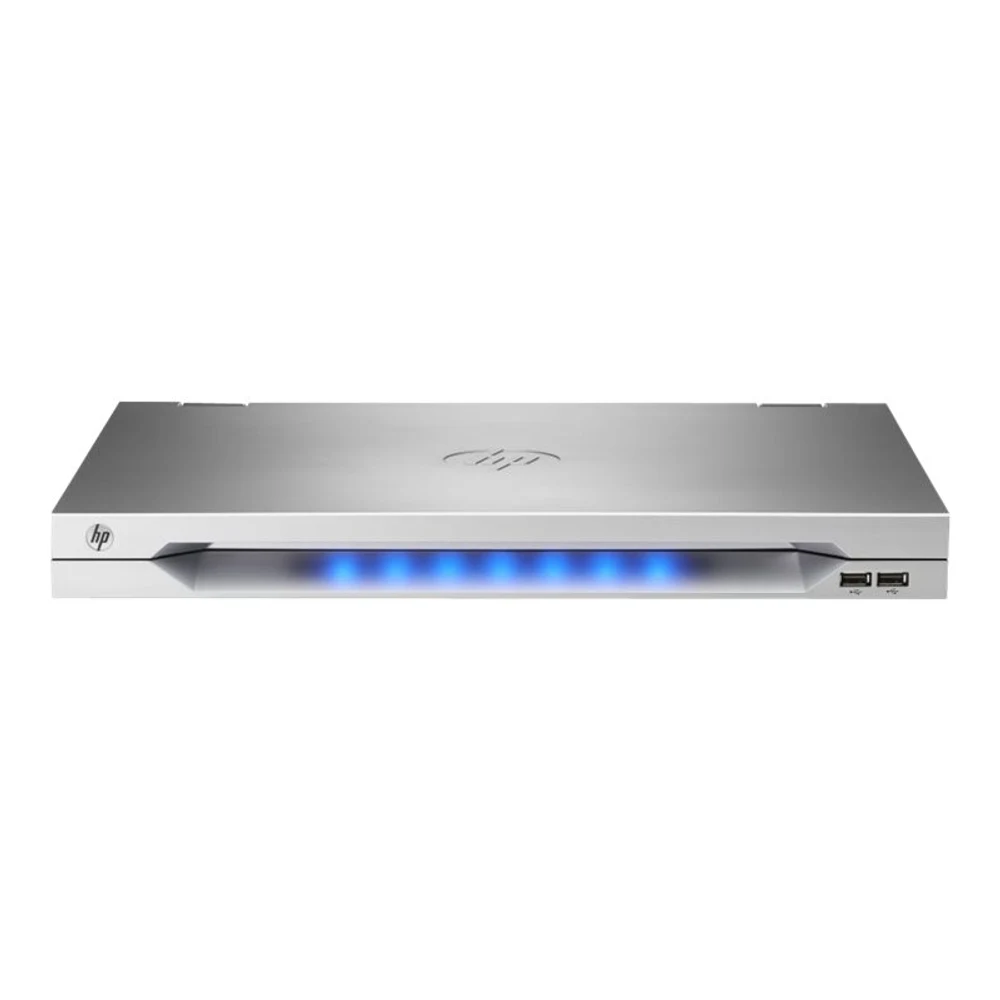

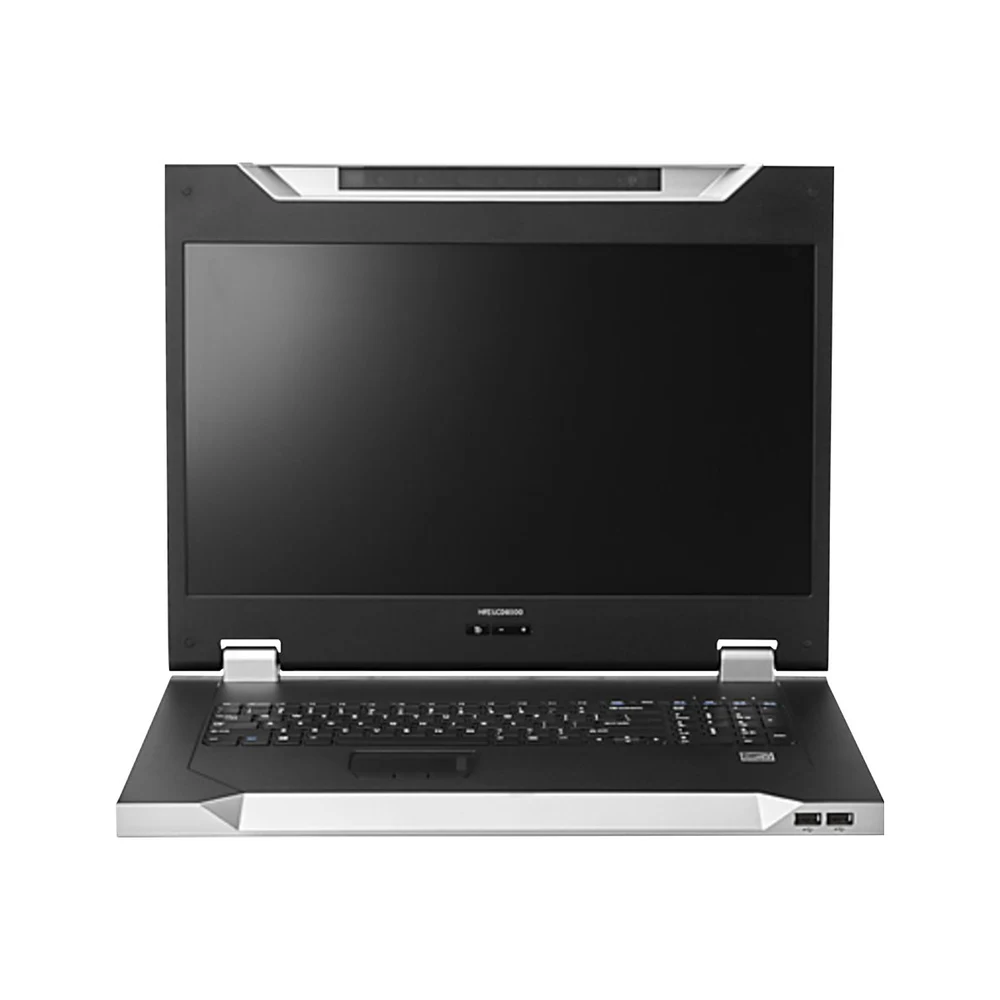

HPE LCD 8500 1U Console DE Kit
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE LCD 8500 1U Console DE Kit.
Display Type: KVM console / TFT active matrix. Diagonal Size: 18.51". Native Resolution: 1600 x 1200 at 60 Hz. Brightness: 187 cd/m². Contrast Ratio: 700:1. Response Time: 16 ms. Controls & Adjustments: Brightness, contrast. OSD Languages: Chinese (simplified), English, German, French, Italian, Spanish, Japanese.
Specifications
Highlights
- 18.51-inch TFT active matrix display with 1600 x 1200 native resolution at 60 Hz
- Compact 1U rack-mount form factor in silver finish
- Integrated USB keyboard with German layout and built-in touchpad
- Dual USB interface connectivity
- Energy-efficient typical power consumption of 36 Watts
- Includes manufacturer 3-year limited parts warranty
Connectivity
- Interfaces
- 2 x USB
Power
- Input Voltage
- AC 120/230 V (50/60 Hz)
- Power Consumption (Typical)
- 36 Watt
General
- Display Type
- KVM console / TFT active matrix
- Diagonal Size
- 18.51"
- Native Resolution
- 1600 x 1200 at 60 Hz
- Brightness
- 187 cd/m²
- Contrast Ratio
- 700:1
- Response Time
- 16 ms
- Controls & Adjustments
- Brightness, contrast
- OSD Languages
- Chinese (simplified), English, German, French, Italian, Spanish, Japanese
- Colour
- Silver
- Dimensions (WxDxH)
- 43.61 cm x 43.3 cm x 4.23 cm
- Height (Rack Units)
- 1U
- Weight
- 5.2 kg
Compatibility Information
- Designed For
- HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9 Entry, DL20 Gen9 Performance, DL320e Gen8 v2 Base, DL320e Gen8 v2 Entry, DL320e Gen8 v2 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL3
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
Input
- Type
- Keyboard, touchpad
KVM
- Keyboard / Mouse Interface
- USB
- Features
- German keyboard layout
Manufacturer Warranty
- Service & Support
- Limited warranty - parts - 3 years
Miscellaneous
- Compliant Standards
- WEEE
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE LCD 8500 1U Console DE Kit is a rack-mountable 1U KVM console designed for IT administrators managing HPE ProLiant rack servers. It combines an 18.51-inch active matrix display supporting up to 1600 x 1200 resolution with an integrated German layout keyboard and touchpad, delivering direct hardware-level server management in a compact form factor.
Frequently asked questions
What is the HPE LCD 8500 1U Console DE Kit used for?
- It provides a direct physical user interface for managing rack servers without taking up excess rack space. It mounts in a 1U slot and integrates a fold-out 18.51-inch monitor, German keyboard, and touchpad.
Which servers are compatible with this HPE console kit?
- This console kit is designed for a wide range of HPE ProLiant Gen8 and Gen9 rack servers, including models across the DL20, DL120, DL160, DL180, DL320e, and DL360 series.
Does this product come with a warranty?
- Yes, it includes a 3-year limited parts warranty backed with local South African support via Server Hub.
