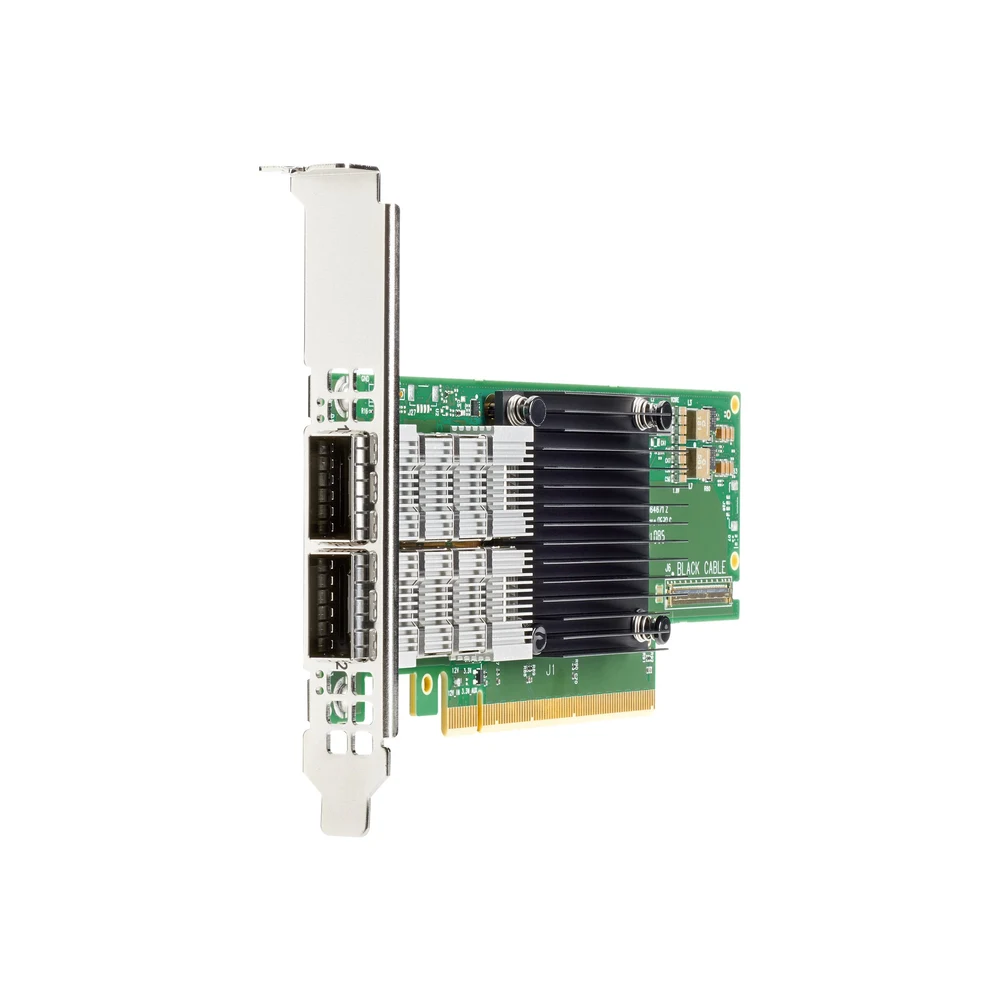

HPE IB HDR/EN 200Gb 2p QSFP56 Adptr
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE IB HDR/EN 200Gb 2p QSFP56 Adptr.
Device Type: Network adapter. Form Factor: Plug-in card - low profile. Interface (Bus) Type: PCI Express 4.0 x16. PCI Specification Revision: PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0. Ports: 200Gb Ethernet / 200Gb Infiniband QSFP56 x 2. Connectivity Technology: Wired. Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand, 200 Gigabit Ethernet, 200 Gigabit InfiniBand. Data Transfer Rate: 200 Gbps.
Specifications
Highlights
- Dual-port QSFP56 interface supporting up to 200 Gbps transfer rates
- High-speed PCI Express 4.0 x16 host bus interface
- Dual-protocol support for both 200Gb Ethernet and InfiniBand HDR
- Low-profile plug-in card form factor
- Engineered for HPE ProLiant DL325, DL345, DL365, and DL380 Gen10 Plus servers
- Broad OS support including Microsoft Windows, Red Hat Enterprise Linux, CentOS, and FreeBSD
Networking
- Ports
- 200Gb Ethernet / 200Gb Infiniband QSFP56 x 2
- Connectivity Technology
- Wired
- Data Link Protocol
- Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand, 200 Gigabit Ethernet, 200 Gigabit InfiniBand
- Data Transfer Rate
- 200 Gbps
- Features
- Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), InfiniBand DDR Link support, Jumbo Frames support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, InfiniBand FDR Link support, congestion control, Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 4.0 x16
- PCI Specification Revision
- PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0
Compatibility Information
- Designed For
- HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus
- Designed For
- HPE ProLiant DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus Base, DL365 Gen10 Plus, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL385 Gen10 Plus, DL385 Gen10 Plus Entry
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 2 x 200Gb Ethernet / 200Gb Infiniband - QSFP56
Manufacturer Warranty
- Service & Support
- Limited warranty - parts - 3 years
Miscellaneous
- Compliant Standards
- CISPR 22 Class A, EN55024, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, VCCI Class A, AS/NZS CISPR 22, EN 55022 Class A, FCC CFR47 Part 15 A, RCM Class A, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
- OS Required
- FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE IB HDR/EN 200Gb 2p QSFP56 Adapter is a dual-port PCIe 4.0 x16 low-profile network interface card. Designed for high-performance enterprise workloads, it delivers high-throughput connectivity supporting both 200Gb InfiniBand and 200Gb Ethernet. It is engineered specifically for select HPE ProLiant Gen10 Plus rack servers requiring high data rates.
Frequently asked questions
What is the HPE IB HDR/EN 200Gb 2p QSFP56 Adapter used for?
- This adapter provides high-speed, dual-port 200 Gbps networking for enterprise data centres and high-performance computing clusters. It allows compatible HPE ProLiant Gen10 Plus servers to interface seamlessly with high-bandwidth InfiniBand or ultra-fast Ethernet networks.
Which server models are compatible with this adapter?
- It is designed for HPE ProLiant Gen10 Plus servers, including the DL325 Gen10 Plus (and V2), DL345 Gen10 Plus, DL365 Gen10 Plus, DL380 Gen10 Plus, and DL385 Gen10 Plus models, as well as select HPE Nimble Storage dHCI solutions.
Does this network adapter come with a warranty in South Africa?
- Yes, this adapter includes a 3-year parts limited warranty. When purchased through Server Hub, you receive full local South African warranty support and customer assistance.
