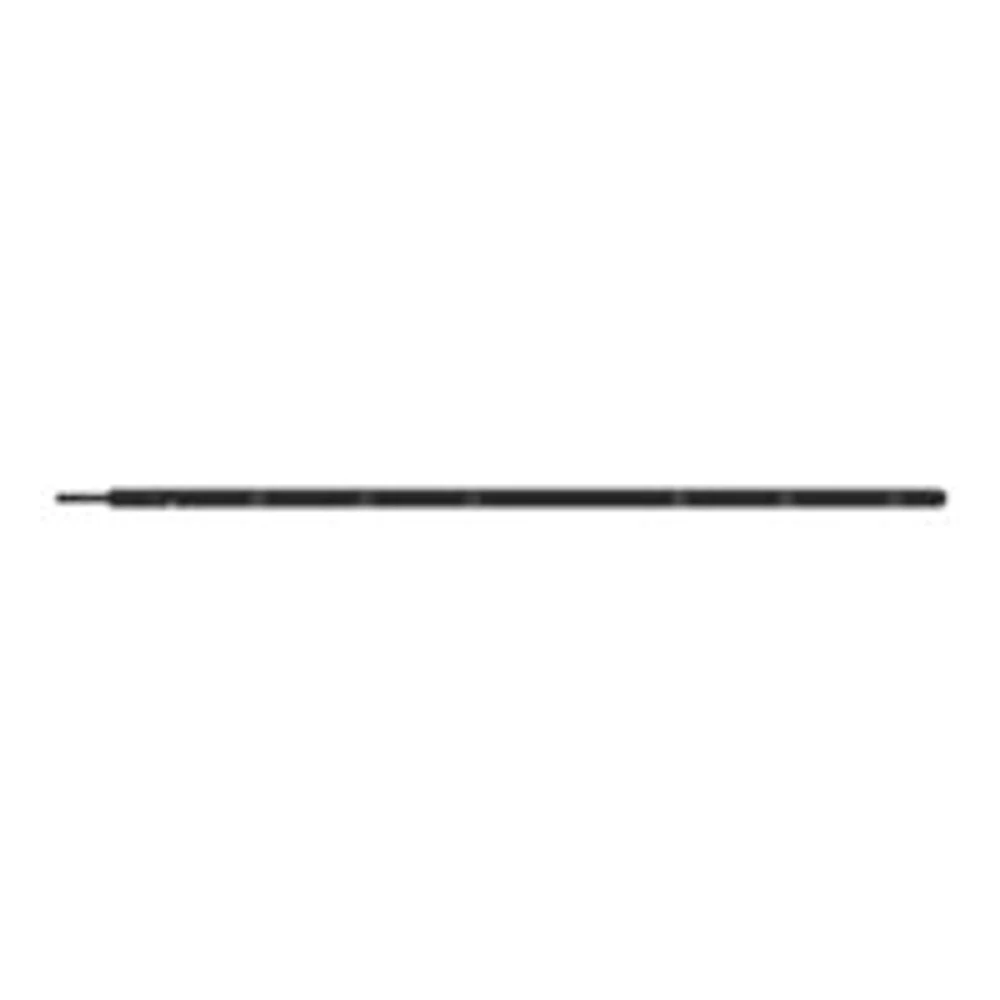

HPE G2 Mtrd/Swtd 3P 22kVA/C13 INTL PDU
Pay by EFT or bank deposit — we confirm stock and the final price before you pay.
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE G2 Mtrd/Swtd 3P 22kVA/C13 INTL PDU.
Device Type: Power distribution unit - rack-mountable. Cord Length: 25.4 cm. Localisation: Worldwide. Input Voltage: AC 230 V. Input Voltage Range: AC 220 - 240 V. Input Wiring: 3-phase 5 Wire. Input Connectors: 1 x power IEC 60309 32A. Power Output Connectors Details: 36 x power IEC 60320 C13; 12 x power IEC 60320 C19.
Specifications
Highlights
- 22000VA power capacity
- 32A maximum electric current
- 3-phase 5-wire input
- 36 C13 and 12 C19 outputs
- Rack mounting kit included
General
- Device Type
- Power distribution unit - rack-mountable
- Cord Length
- 25.4 cm
- Localisation
- Worldwide
Compatibility Information
- Designed For
- HPE Synergy 12000 Frame
Dimensions & Weight
- Width
- 26.19 cm
- Depth
- 197.99 cm
- Height
- 13.21 cm
- Weight
- 13.15 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years
Miscellaneous
- Cables Included
- Power cable 25.4 cm
- Rack Mounting Kit
- Included
Power Device
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 220 - 240 V
- Input Wiring
- 3-phase 5 Wire
- Input Connectors
- 1 x power IEC 60309 32A
- Power Output Connectors Details
- 36 x power IEC 60320 C13
- Power Output Connectors Details
- 12 x power IEC 60320 C19
- Output Voltage
- AC 200-240/346-415 V
- Max Electric Current
- 32 A
- Power Capacity
- 22000 VA
- Circuit Protection
- Circuit breaker
Related Products
Dell PowerEdge R640 NVMe Server 2.50Ghz 40-Core 512GB RAM + 4x Caddies + Rails
HP ProLiant DL380 G9 Server 8-Bay SFF 2.40Ghz 16-Core 32GB RAM + 3.0TB SATA HDDs
Dell PowerEdge R440 Server 8-Bay SFF 2.70Ghz 24-Core 128GB RAM + 2.4TB SATA SSDs
Dell PowerEdge R740xd NVMe Server 24-Bay 2.60Ghz 36-Core 128GB RAM + 24x Caddies
The HPE G2 metered/switched PDU is a rack-mountable power distribution unit specified at 22000VA and 32A. Its three-phase input serves a mixed set of C13 and C19 outputs. The listed electrical ratings, input connector and included mounting kit provide the key details for planning a compatible rack power installation.
Frequently asked questions
Which output connectors are listed?
- The specifications list 36 IEC C13 outputs and 12 IEC C19 outputs. The connector mix supports planning for equipment with those power lead formats.
What input connection is specified?
- The unit lists an IEC 60309 32A input connector. Its input wiring is specified as 3-phase 5-wire.
What power capacity is stated?
- The stated capacity is 22000VA. The maximum electric current is listed separately as 32A.
