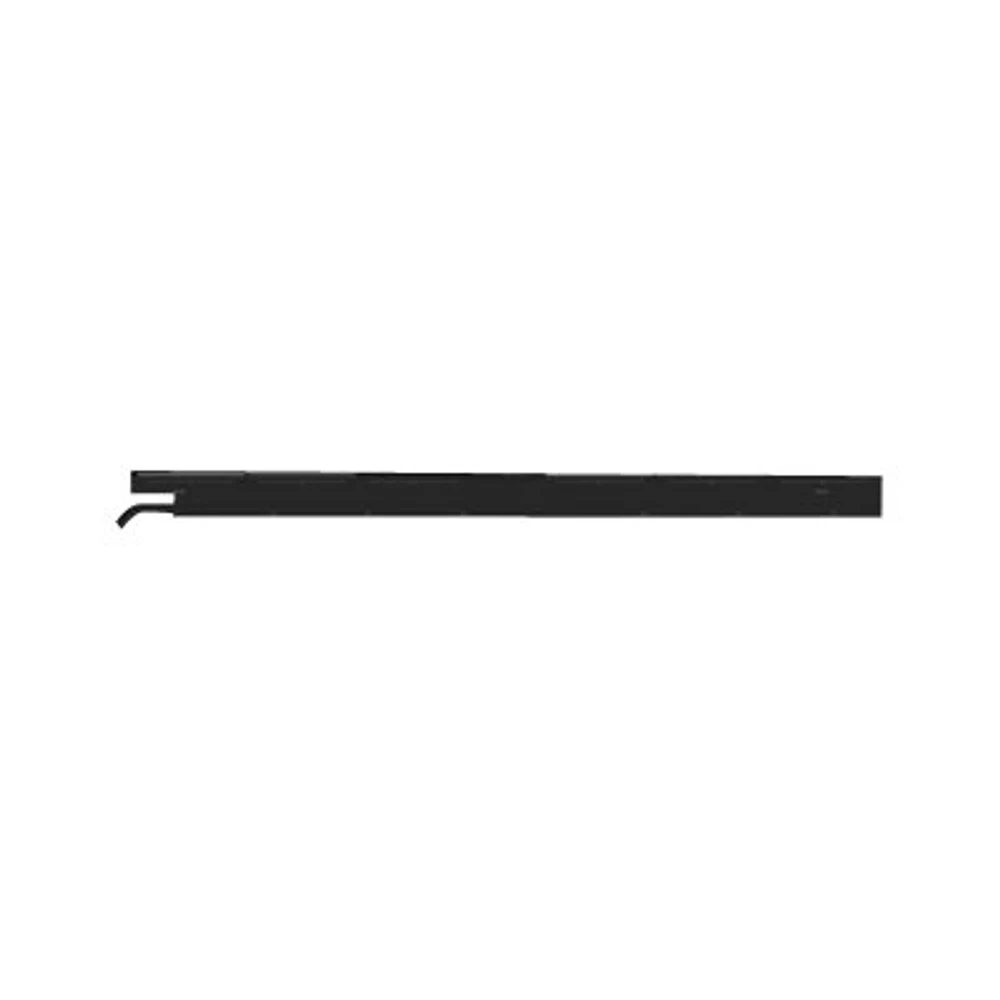

HPE G2 Mtrd/Swtd 3P 17.3kVA/C13 NA/J PDU
Pay by EFT or bank deposit — we confirm stock and the final price before you pay.
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE G2 Mtrd/Swtd 3P 17.3kVA/C13 NA/J PDU.
Device Type: Power distribution unit - rack-mountable. Cord Length: 24.5 cm. Localisation: Japan, North America. Input Voltage: AC 208 V. Input Voltage Range: AC 200 - 208 V. Frequency Provided: 50/60 Hz. Input Wiring: 3-phase 4 Wire delta. Frequency Required: 50/60 Hz.
Specifications
Highlights
- 17.3kVA (17293 VA) 3-phase power capacity with 48 A maximum current
- 36 x IEC 60320 C13 and 12 x IEC 60320 C19 output receptacles
- Designed for HPE Synergy 12000 Frame infrastructure
- Single IEC 60309 input connector with 3-phase 4-wire delta wiring
- Integrated circuit breaker protection and rack mounting kit included
General
- Device Type
- Power distribution unit - rack-mountable
- Cord Length
- 24.5 cm
- Localisation
- Japan, North America
Compatibility Information
- Designed For
- HPE Synergy 12000 Frame
Dimensions & Weight
- Width
- 5.2 cm
- Depth
- 11.2 cm
- Height
- 182 cm
- Weight
- 14.5 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 60 °C
- Humidity Range Operating
- 10 - 90%
Miscellaneous
- Included Accessories
- Tie wraps
- Cables Included
- Power cable 24.5 cm
- Rack Mounting Kit
- Included
- Compliant Standards
- CSA, UL, VCCI, CB, FCC, WEEE, ICES
Power Device
- Input Voltage
- AC 208 V
- Input Voltage Range
- AC 200 - 208 V
- Frequency Provided
- 50/60 Hz
- Input Wiring
- 3-phase 4 Wire delta
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60309
- Power Output Connectors Details
- 36 x power IEC 60320 C13
- Power Output Connectors Details
- 12 x power IEC 60320 C19
- Output Voltage
- AC 200-208 V 50/60 Hz
- Max Electric Current
- 48 A
- Power Capacity
- 17293 VA
- Circuit Protection
- Circuit breaker
Related Products
Dell PowerEdge R640 NVMe Server 2.50Ghz 40-Core 512GB RAM + 4x Caddies + Rails
HP ProLiant DL380 G9 Server 8-Bay SFF 2.40Ghz 16-Core 32GB RAM + 3.0TB SATA HDDs
Dell PowerEdge R440 Server 8-Bay SFF 2.70Ghz 24-Core 128GB RAM + 2.4TB SATA SSDs
Dell PowerEdge R740xd NVMe Server 24-Bay 2.60Ghz 36-Core 128GB RAM + 24x Caddies
The HPE G2 17.3kVA Metered and Switched 3-Phase PDU is a rack-mountable power distribution unit engineered for enterprise data centre environments and HPE Synergy 12000 Frames. Delivering 17293 VA across 36 C13 and 12 C19 power outlets, it provides high-density power delivery, 3-phase 4-wire delta input, and built-in circuit breaker protection.
Frequently asked questions
What is the HPE G2 17.3kVA PDU used for?
- This rack-mountable power distribution unit supplies high-capacity power distribution to enterprise IT hardware, specifically designed for HPE Synergy 12000 Frames. It features 36 C13 and 12 C19 outlets to power dense rack environments requiring up to 17293 VA.
What input power connection does this PDU require?
- It utilises a single IEC 60309 input connector configured for 3-phase 4-wire delta wiring. It operates within an input voltage range of AC 200 to 208 V at 50/60 Hz with a maximum current of 48 A.
Does this HPE rack PDU come with a warranty in South Africa?
- Yes, this unit is backed by a local South African warranty via Server Hub. Your order is priced in rand and supported locally for enterprise deployments.
