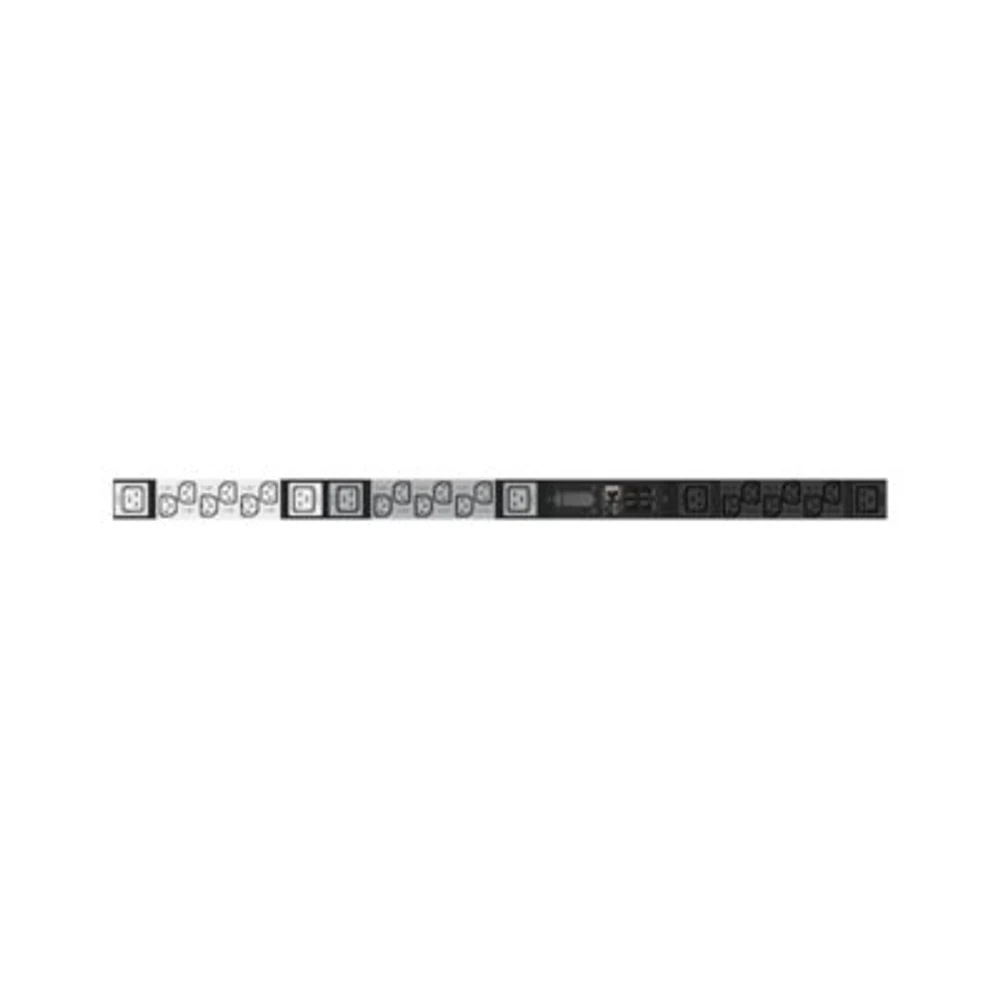

HPE G2 Mtrd 3P 17.3kVA/18 C13 N/J PDU
Pay by EFT or bank deposit — we confirm stock and the final price before you pay.
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE G2 Mtrd 3P 17.3kVA/18 C13 N/J PDU.
Device Type: Power distribution unit - rack-mountable. Cord Length: 25.4 cm. Localisation: Japan, North America. Input Voltage: AC 208 V. Input Voltage Range: AC 200 - 208 V. Input Wiring: 3-phase 4 Wire delta. Input Connectors: 1 x power IEC 60309. Power Output Connectors Details: 18 x power IEC 60320 C13; 6 x power IEC 60320 C19.
Specifications
Highlights
- High 17.3kVA (17,300 VA) power capacity with 48A maximum electric current
- 3-phase 4-wire delta input with IEC 60309 connector
- Equipped with 18 x IEC 60320 C13 and 6 x IEC 60320 C19 output receptacles
- Integrated circuit breaker for reliable electrical protection
- Specifically designed to fit the HPE Synergy 12000 Frame
- Rack-mountable form factor including mounting kit and tie wraps
General
- Device Type
- Power distribution unit - rack-mountable
- Cord Length
- 25.4 cm
- Localisation
- Japan, North America
Compatibility Information
- Designed For
- HPE Synergy 12000 Frame
Dimensions & Weight
- Width
- 5.2 cm
- Depth
- 11.2 cm
- Height
- 91.5 cm
- Weight
- 10.8 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 60 °C
- Humidity Range Operating
- 10 - 90%
Miscellaneous
- Included Accessories
- Tie wraps
- Cables Included
- Power cable 25.4 cm
- Rack Mounting Kit
- Included
- Compliant Standards
- CSA, UL, VCCI, CB, FCC, WEEE, ICES
Power Device
- Input Voltage
- AC 208 V
- Input Voltage Range
- AC 200 - 208 V
- Input Wiring
- 3-phase 4 Wire delta
- Input Connectors
- 1 x power IEC 60309
- Power Output Connectors Details
- 18 x power IEC 60320 C13
- Power Output Connectors Details
- 6 x power IEC 60320 C19
- Output Voltage
- AC 200-240 V
- Max Electric Current
- 48 A
- Power Capacity
- 17300 VA
- Circuit Protection
- Circuit breaker
Related Products
Dell PowerEdge R640 NVMe Server 2.50Ghz 40-Core 512GB RAM + 4x Caddies + Rails
HP ProLiant DL380 G9 Server 8-Bay SFF 2.40Ghz 16-Core 32GB RAM + 3.0TB SATA HDDs
Dell PowerEdge R440 Server 8-Bay SFF 2.70Ghz 24-Core 128GB RAM + 2.4TB SATA SSDs
Dell PowerEdge R740xd NVMe Server 24-Bay 2.60Ghz 36-Core 128GB RAM + 24x Caddies
The HPE G2 Metered 3-Phase 17.3kVA PDU is a high-density, rack-mountable power distribution unit engineered for enterprise datacentres and specifically designed for the HPE Synergy 12000 Frame. Delivering 17,300 VA of power capacity across 18 C13 and 6 C19 outlets, it provides precise power distribution and circuit breaker protection for mission-critical infrastructure.
Frequently asked questions
What is the HPE G2 17.3kVA PDU used for?
- This power distribution unit is designed to manage and supply high-capacity 3-phase power to dense datacentre equipment. It is engineered specifically for use with the HPE Synergy 12000 Frame to distribute AC power reliably across multiple server and compute modules.
How many devices can this HPE PDU connect?
- The PDU features a total of 24 power output connectors, consisting of 18 IEC C13 and 6 high-draw IEC C19 outlets. This configuration allows you to connect a mixture of standard server components and high-capacity infrastructure devices.
Does the HPE G2 Metered PDU come with a warranty in South Africa?
- Yes, this unit is supplied with a local South African warranty through Server Hub. Support and warranty fulfilment are handled locally to ensure minimal downtime for your datacentre operations.
