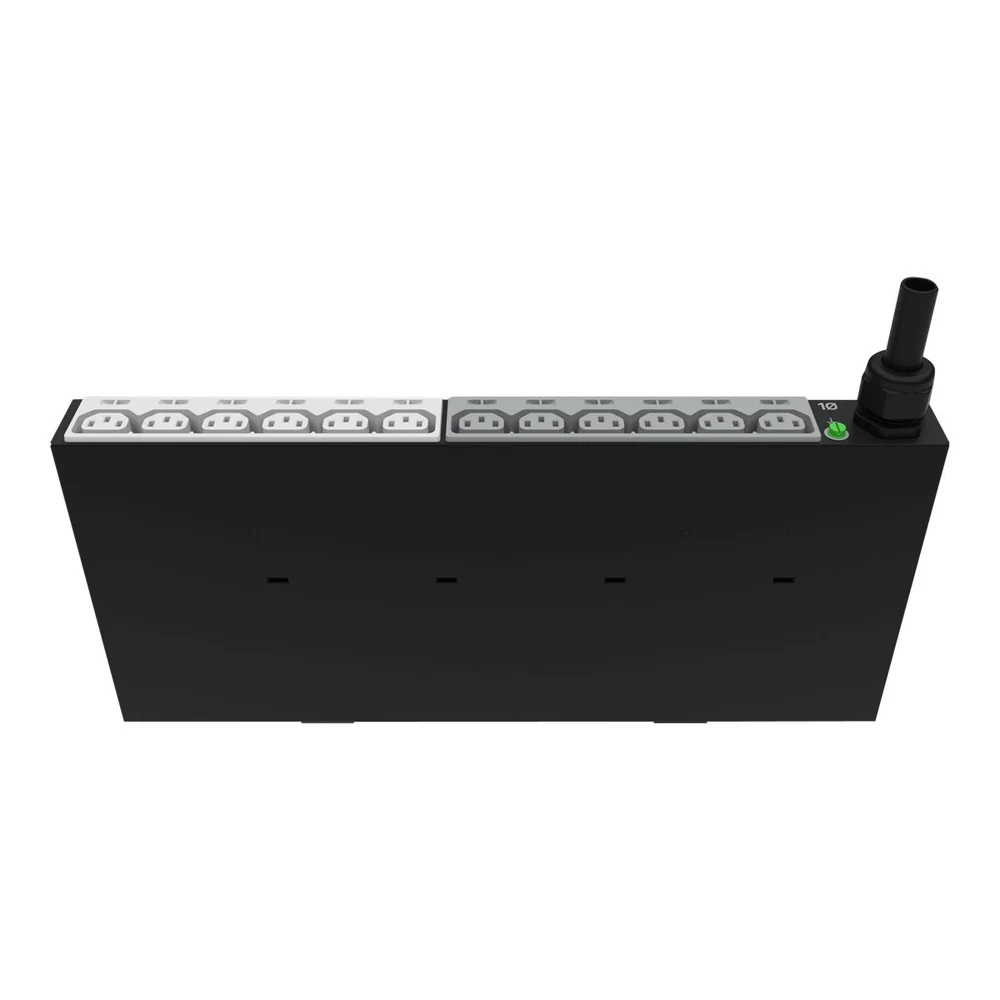

HPE G2 Basic Mdlr 3Ph 22kVA/C19 INTL PDU.
Device Type: Power distribution unit - rack-mountable. Height (Rack Units): 1U. Cord Length: 30.5 cm. Localisation: Worldwide. Input Voltage: AC 200-240/346-415 V. Input Wiring: 3-phase WYE (star). Input Connectors: 1 x power IEC 60309 32A. Power Output Connectors Details: 6 x power IEC 60320 C19.
Specifications
Highlights
- High-capacity 22kVA (22000 VA) 32A 3-phase power distribution
- Compact 1U rack-mountable modular form factor
- Six IEC 60320 C19 power output connectors
- Single IEC 60309 32A 3-phase WYE input connector
- Integrated circuit breaker protection for attached hardware
- Includes rack mounting kit and cable tie wraps
General
- Device Type
- Power distribution unit - rack-mountable
- Height (Rack Units)
- 1U
- Cord Length
- 30.5 cm
- Localisation
- Worldwide
Compatibility Information
- Designed For
- HPE ProLiant for Microsoft Azure Stack
- Designed For
- HPE Synergy 12000 Frame
Dimensions & Weight
- Width
- 44.35 cm
- Depth
- 19.74 cm
- Height
- 4.35 cm
- Weight
- 4.81 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 60 °C
- Humidity Range Operating
- 10 - 90%
Miscellaneous
- Included Accessories
- Tie wraps
- Cables Included
- Power cable 30.5 cm
- Rack Mounting Kit
- Included
- Compliant Standards
- DEMKO, WEEE, KC, EAC
Power Device
- Input Voltage
- AC 200-240/346-415 V
- Input Wiring
- 3-phase WYE (star)
- Input Connectors
- 1 x power IEC 60309 32A
- Power Output Connectors Details
- 6 x power IEC 60320 C19
- Max Electric Current
- 32 A
- Power Capacity
- 22000 VA
- Circuit Protection
- Circuit breaker
Related Products
Dell PowerEdge R640 NVMe Server 2.50Ghz 40-Core 512GB RAM + 4x Caddies + Rails
HP ProLiant DL380 G9 Server 8-Bay SFF 2.40Ghz 16-Core 32GB RAM + 3.0TB SATA HDDs
Dell PowerEdge R440 Server 8-Bay SFF 2.70Ghz 24-Core 128GB RAM + 2.4TB SATA SSDs
Dell PowerEdge R740xd NVMe Server 24-Bay 2.60Ghz 36-Core 128GB RAM + 24x Caddies
The HPE G2 Basic Modular 3-Phase 22kVA INTL PDU is a 1U rack-mountable power distribution unit engineered for enterprise datacenter environments. Delivering 22000 VA across six IEC 60320 C19 outlets with a 32A IEC 60309 3-phase input, it supplies reliable high-density power distribution designed for HPE Synergy 12000 frames and HPE ProLiant Azure Stack deployments.
Frequently asked questions
What hardware is the HPE G2 Basic 3-Phase 22kVA PDU designed for?
- This PDU is specifically designed for high-density enterprise infrastructure, including HPE Synergy 12000 Frames and HPE ProLiant for Microsoft Azure Stack. It supplies robust 3-phase power across six standard C19 outlets to support demanding rack-level loads.
What input power connection does this rack PDU require?
- It requires a 3-phase WYE (star) AC 200-240/346-415 V supply connected via a standard IEC 60309 32A plug. An integrated 30.5 cm power cable is included for direct connection within your server rack.
Does this HPE PDU come with a warranty in South Africa?
- Yes, this unit comes supported by a local South African warranty through Server Hub. It includes standard rack mounting hardware and tie wraps for straightforward installation into your cabinet.
