SPT-127C5404FB2039
HPE DL380 Gen10 8SFF NC CTO Svr
R 56 960
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1

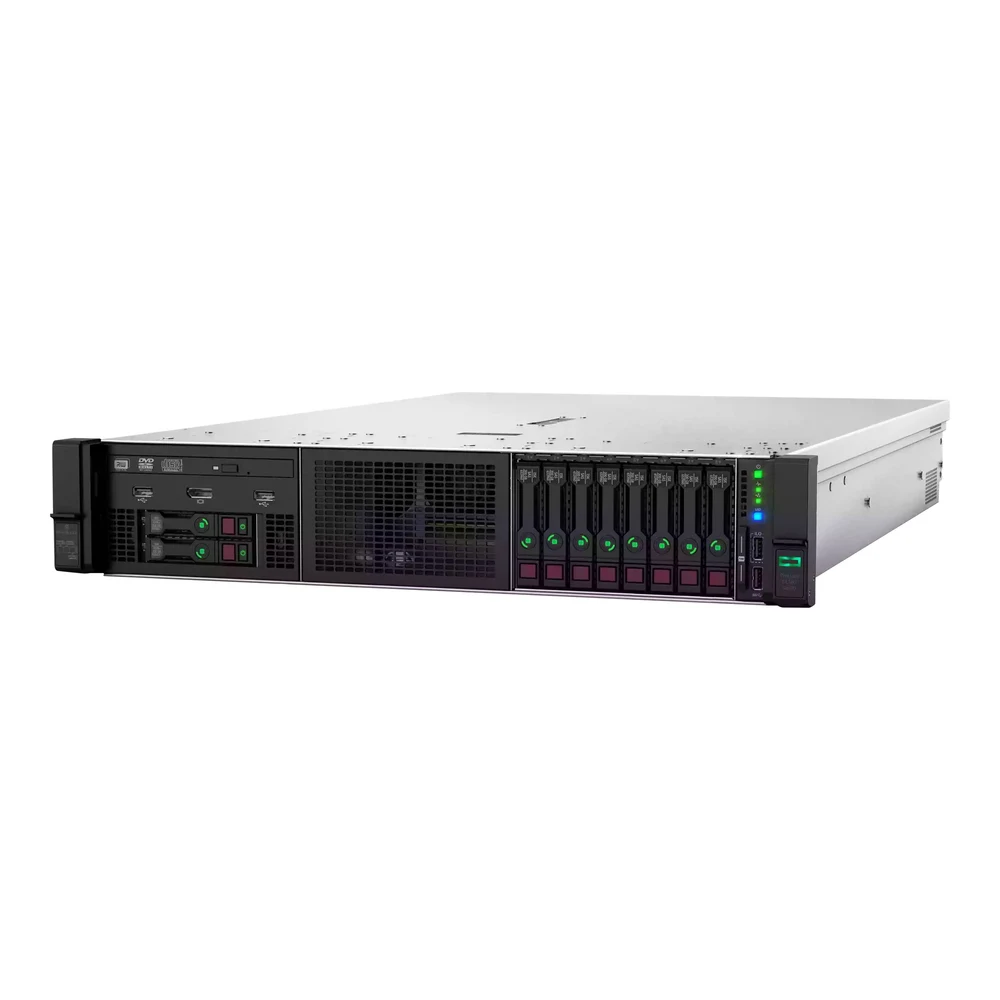

HPE DL380 Gen10 8SFF NC CTO Svr.
General — Type: Server. Product Form Factor: Rack-mountable - 2U. Built-in Devices: Led panel. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. CPU: No CPU. Max CPU Qty: 2. CPU Upgradability: Upgradable.
Specifications
- CPU
- No CPU
Highlights
- 2U rack-mountable chassis with 8 hot-swap drive bays
- Dual-socket FCLGA3647 support for up to two processors
- 24 DDR4 DIMM slots supporting up to 3 TB RAM
- HPE Integrated Lights-Out 5 remote management controller
- Four integrated Gigabit Ethernet ports and FlexibleLOM slot
- HPE Smart Array S100i SR Software SATA storage controller
Networking
- Ethernet Ports
- 4 x Gigabit Ethernet
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol
- SNMP 3, IPMI 2.0, SMASH CLP
- Remote Management Controller
- Integrated Lights-Out 5
- Features
- Wake on LAN (WoL), PXE support
Power
- Device Type
- Power supply - hot-plug
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Installed Qty
- 0
- Max Supported Qty
- 2
- Voltage Required
- AC 120/230 V (50/60 Hz)
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 2U
- Built-in Devices
- Led panel
- Server Scalability
- 2-way
- Hot-Swap Bays Qty
- 8
Card Reader
- Type
- Card reader
- Supported Flash Memory Cards
- microSD
Dimensions & Weight
- Width
- 44.55 cm
- Depth
- 67.94 cm
- Height
- 8.73 cm
- Weight
- 14.9 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
- Sound Emission
- 34 dBA
Expansion / Connectivity
- Bays
- 1 (total) / 1 (free) x external Universal Media Bay
- Bays
- 8 (total) / 8 (free) x hot-swap 3.5" LFF
- Slots
- 1 (total) / 1 (free) x FlexibleLOM
- Slots
- 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height
- Slots
- 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height
- Slots
- 1 (total) / 1 (free) x microSD Card (internal)
- Interfaces
- 1 x HPE iLO - Type A (1 in front)
- Interfaces
- 5 x USB 3.0 (1 front, 2 rear, 2 internal)
- Interfaces
- 1 x HPE iLO - RJ-45 (1 rear)
- Interfaces
- 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear)
- Interfaces
- 1 x VGA (1 rear)
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA
Hard Drive
- Type
- No HDD
Miscellaneous
- Included Accessories
- 6 x standard fans
- Compliant Standards
- AES, FIPS 140-2, IPv6 Ready, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
- Pricing Type
- CTO
Monitor
- Monitor Type
- None.
Operating System / Software
- OS Certified
- CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, ClearOS
- Software
- HPE Server UEFI
Optical Storage
- Type
- No optical drive
Processor / Chipset
- CPU
- No CPU
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- CPU Socket
- FCLGA3647 Socket
- Chipset Type
- Intel C621
RAM
- Installed Size
- 0 GB / 3 TB (max)
- Technology
- DDR4 SDRAM - Advanced ECC
- Form Factor
- DIMM 288-pin
- Slots
- 24 (Total) / 24 (empty)
- Features
- Registered, mixing of different types of memory modules is not supported, Load-Reduced DIMM (LRDIMM), slots 13 - 24 are available in two-processor configuration only
- RAM Supported
- 3 TB Load-Reduced - ECC
- RAM Supported
- 1.5 TB registered - ECC
- RAM Supported
- 192 GB Non-Volatile - ECC
Storage Controller
- Type
- 1 x SATA
- Controller Interface Type
- SATA 6Gb/s
- Storage Controller Name
- HPE Smart Array S100i SR Software
- Channel Qty
- 14
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE DL380 Gen10 8SFF NC CTO Server is a 2U rack-mountable, 2-way barebone chassis engineered for enterprise workloads and custom configurations. Designed for IT departments requiring tailored performance, it supports up to two Intel processors across 24 DDR4 DIMM slots, eight hot-swap drive bays, and Integrated Lights-Out 5 remote management.
Frequently asked questions
What is the HPE DL380 Gen10 CTO Server used for?
- It is a customisable 2U rack server base used for enterprise compute, database management, and virtualised environments. Because it ships as a Configure-To-Order chassis without pre-installed CPUs, RAM, or storage drives, it allows administrators to tailor exact specifications for their operational requirements.
What expansion and scalability options does this server support?
- The server features a dual FCLGA3647 processor socket design and 24 DDR4 memory slots supporting up to 3 TB of RAM. It also includes multiple PCIe 3.0 expansion slots, eight hot-swap drive bays, and a FlexibleLOM slot for network expansion.
Does the HPE DL380 Gen10 server come with a warranty?
- Yes, this server is covered by a local South African warranty through Server Hub. Local warranty support ensures responsive assistance and peace of mind for your business infrastructure.
