HPE DL380 Gen10 5218 1P 32G NC 8SFF Svr

Name: HPE DL380 Gen10 5218 1P 32G NC 8SFF Svr
Brand: HPE
SKU: SPT-BACA59593D0924
Price: 227580 ZAR
Availability: BackOrder

R 227 580

Available to order

3–7 day delivery

New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).

30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

Quantity

HPE DL380 Gen10 5218 1P 32G NC 8SFF Svr.

General — Type: Server. Product Form Factor: Rack-mountable - 2U. Built-in Devices: Led panel. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. CPU: Intel Xeon Gold 5218. Clock Speed: 2.3 GHz. Max Turbo Speed: 3.9 GHz.

Specifications

CPU: Intel Xeon Gold 5218
Buffer Size: 2 GB

Highlights

Intel Xeon Gold 5218 16-core processor with 2.3 GHz base and 3.9 GHz Turbo
32 GB DDR4 ECC registered memory across 24 DIMM slots
8 hot-swap 2.5-inch SFF drive bays with HPE Smart Array P408i-a RAID controller
4 x Gigabit Ethernet ports via HPE 366FLR controller
HPE Integrated Lights-Out 5 (iLO 5) remote management
800W hot-plug power supply with optional 1+1 redundancy

Networking

Ethernet Ports: 4 x Gigabit Ethernet
Ethernet Controller: HPE 366FLR
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 5
Features: Wake on LAN (WoL), PXE support

Power

Device Type: Power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)
Power Provided: 800 Watt

General

Type: Server
Product Form Factor: Rack-mountable - 2U
Built-in Devices: Led panel
Server Scalability: 2-way
Hot-Swap Bays Qty: 8

Cache Memory

Installed Size: L3 Cache - 22 MB
Cache Per Processor: 22 MB

Card Reader

Type: Card reader
Supported Flash Memory Cards: microSD

Dimensions & Weight

Width: 44.55 cm
Depth: 67.94 cm
Height: 8.73 cm
Weight: 14.9 kg

Environmental Parameters

Min Operating Temperature: 10 °C
Max Operating Temperature: 35 °C
Humidity Range Operating: 8 - 90% (non-condensing)

Environmental Standards

ENERGY STAR Certified: Yes
ENERGY STAR Version: 2.1

Expansion / Connectivity

Bays: 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots: 1 (total) / 1 (free) x FlexibleLOM
Slots: 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height
Slots: 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height
Slots: 1 (total) / 1 (free) x microSD Card (internal)
Interfaces: 1 x HPE iLO - Type A (1 in front)
Interfaces: 5 x USB 3.0 (1 front, 2 rear, 2 internal)
Interfaces: 1 x HPE iLO - RJ-45 (1 rear)
Interfaces: 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear)
Interfaces: 1 x VGA (1 rear)

Graphics Controller

Video Memory: 16 MB
Video Interfaces: VGA

Hard Drive

Type: No HDD

Manufacturer Warranty

Service & Support: Limited warranty - parts and labour - 3 years - on-site

Miscellaneous

Included Accessories: 4 standard fans
Compliant Standards: AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1

Monitor

Monitor Type: None.

Operating System / Software

OS Certified: CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS
Software: HPE Server UEFI

Optical Storage

Type: No optical drive

Processor / Chipset

CPU: Intel Xeon Gold 5218
Clock Speed: 2.3 GHz
Max Turbo Speed: 3.9 GHz
Number of Cores: 16-core
CPU Qty: 1
Max CPU Qty: 2
CPU Upgradability: Upgradable
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket: FCLGA3647 Socket
Chipset Type: Intel C621

RAM

Installed Size: 32 GB / 1.5 TB (max)
Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2666 MHz
Rated Memory Speed: 2933 MHz
Form Factor: DIMM 288-pin
Slots: 24 (Total) / 23 (empty)
Features: Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
Configuration Features: 1 x 32 GB
RAM Supported: 3 TB Load-Reduced - ECC
RAM Supported: 1.5 TB registered - ECC
RAM Supported: 192 GB Non-Volatile - ECC

Storage Controller

Type: 1 x RAID
Controller Interface Type: SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name: HPE Smart Array P408i-a
Channel Qty: 8
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size: 2 GB

Related Products

Apple

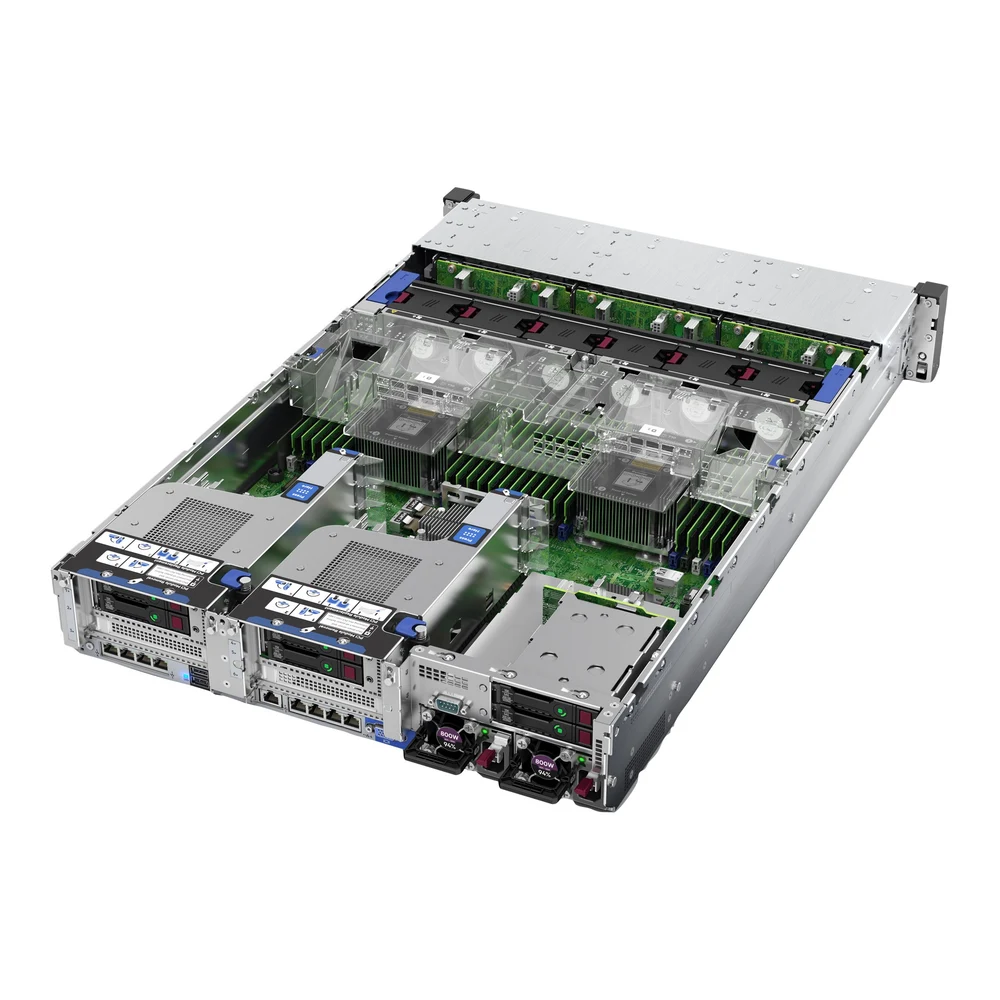

The HPE ProLiant DL380 Gen10 is a dual-socket 2U rack server powered by a 16-core Intel Xeon Gold 5218 processor and 32GB of DDR4 SmartMemory. Designed for enterprise workloads, virtualisation, and database management, it features eight 2.5-inch hot-swap drive bays, an HPE Smart Array P408i-a RAID controller, and integrated iLO 5 management.

Frequently asked questions

What workloads is the HPE DL380 Gen10 server built for?: The HPE DL380 Gen10 is engineered for enterprise environments, database processing, virtualisation, and high-demand compute tasks. With a 16-core Intel Xeon Gold 5218 processor, scalable memory up to 3 TB LRDIMM, and eight hot-swap drive bays, it adapts easily to growing data centre needs.
Can the memory and storage on this DL380 Gen10 server be upgraded?: Yes, this server supports scalability with 24 DIMM slots handling up to 1.5 TB of RDIMM or 3 TB of LRDIMM memory when dual processors are installed. It also features eight 2.5-inch small form factor hot-swap drive bays managed by an HPE Smart Array P408i-a controller.
Does this HPE server include a warranty in South Africa?: Yes, this server comes with warranty cover available locally in South Africa through Server Hub. It includes standard manufacturer limited parts and labour support to ensure reliable enterprise operation.
