SPT-2371C5BF465B82

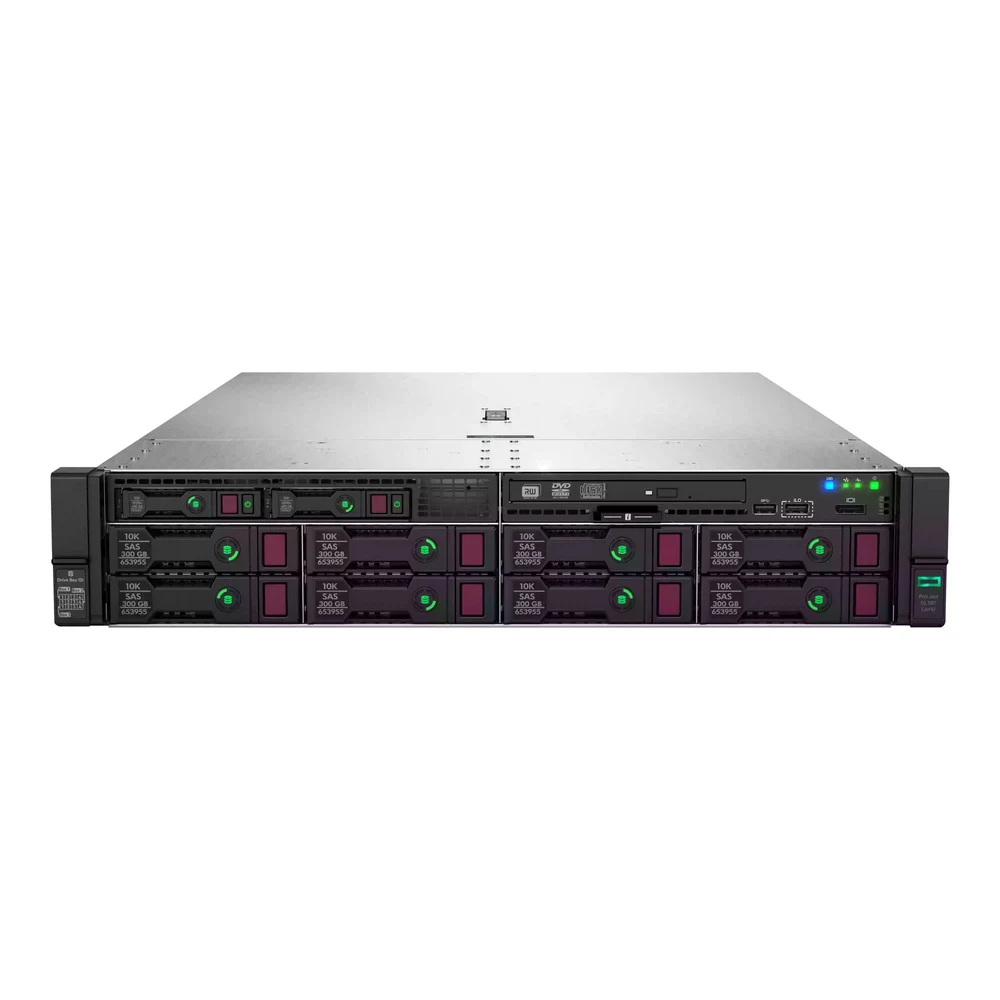

HPE DL380 Gen10 4214R 1P 32G NC 8SFF Svr
R 204 690
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1
HPE DL380 Gen10 4214R 1P 32G NC 8SFF Svr.
General — Type: Server. Product Form Factor: Rack-mountable - 2U. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: Worldwide (excluding China, Japan). CPU: Intel Xeon Silver 4214R. Clock Speed: 2.4 GHz. Max Turbo Speed: 3.5 GHz.
Specifications
- CPU
- Intel Xeon Silver 4214R
- Buffer Size
- 2 GB
Highlights
- Intel Xeon Silver 4214R 12-core processor with up to 3.5 GHz Turbo
- 32 GB DDR4 ECC SmartMemory expandable up to 24 DIMM slots
- 8 hot-swap 2.5-inch small form factor (SFF) drive bays
- HPE Smart Array P408i-a SR Gen10 12Gbps SAS RAID controller with 2 GB buffer
- Embedded quad-port Gigabit Ethernet and HPE iLO 5 management
- 800W 80 PLUS Platinum hot-plug power supply
Networking
- Ethernet Ports
- 4 x Gigabit Ethernet
- Ethernet Controller
- HPE 366FLR
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Controller
- Integrated Lights-Out 5
Power
- Device Type
- Power supply - hot-plug
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Installed Qty
- 1
- Max Supported Qty
- 2
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Provided
- 800 Watt
- 80 PLUS Certification
- 80 PLUS Platinum
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 2U
- Server Scalability
- 2-way
- Hot-Swap Bays Qty
- 8
- Localisation
- Region: Worldwide (excluding China, Japan)
Cache Memory
- Installed Size
- L3 Cache - 16.5 MB
- Cache Per Processor
- 16.5 MB
Dimensions & Weight
- Width
- 44.55 cm
- Depth
- 73.03 cm
- Height
- 8.74 cm
- Weight
- 14.76 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
Expansion / Connectivity
- Bays
- 8 (total) / 8 (free) x hot-swap 2.5" SFF
- Slots
- 1 (total) / 1 (free) x microSD Card (internal)
- Slots
- 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height
- Slots
- 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height
- Slots
- 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height
- Slots
- 1 (total) / 0 (free) x FlexibleLOM
- Interfaces
- 3 x USB 3.0 (1 front, 2 rear)
- Interfaces
- 1 x VGA
- Interfaces
- 4 x LAN (Gigabit Ethernet)
- Interfaces
- 1 x HPE iLO
- Interfaces
- 1 x HPE iLO (service port)
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA
Hard Drive
- Type
- No HDD
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site
Miscellaneous
- Included Accessories
- Cable management arm, 4 standard fans, SFF Easy install rails
- Compliant Standards
- WEEE, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Monitor
- Monitor Type
- None.
Optical Storage
- Type
- No optical drive
Processor / Chipset
- CPU
- Intel Xeon Silver 4214R
- Clock Speed
- 2.4 GHz
- Max Turbo Speed
- 3.5 GHz
- Number of Cores
- 12-core
- CPU Qty
- 1
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- Processor Main Features
- Hyper-Threading Technology, Intel Turbo Boost Technology 2
- CPU Socket
- FCLGA3647 Socket
- Chipset Type
- Intel C621
RAM
- Installed Size
- 32 GB / 1.5 TB (max)
- Technology
- DDR4 SDRAM - Advanced ECC
- Effective Memory Speed
- 2400 MHz
- Rated Memory Speed
- 2933 MHz
- Form Factor
- DIMM 288-pin
- Slots
- 24 (Total) / 23 (empty)
- Features
- Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
- Configuration Features
- 1 x 32 GB
- RAM Supported
- 3 TB Load-Reduced - ECC
- RAM Supported
- 1.5 TB registered - ECC
- RAM Supported
- 192 GB Non-Volatile - ECC
- RAM Supported
- 6 TB - HPE Persistent Memory - Optane DC Persistent
Storage Controller
- Type
- 1 x RAID - PCIe 3.0 x8
- Controller Interface Type
- SATA 6Gb/s / SAS 12Gb/s
- Storage Controller Name
- HPE Smart Array P408i-a SR Gen10
- Channel Qty
- 8
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
- Buffer Size
- 2 GB
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE DL380 Gen10 is a 2U dual-socket rackmount server engineered for enterprise virtualisation, database management, and compute workloads. Equipped with a 12-core Intel Xeon Silver 4214R processor, 32 GB DDR4 SmartMemory, and eight hot-swap 2.5-inch SFF drive bays, it provides expandable performance and reliable data protection for growing IT environments.
Frequently asked questions
What workloads is the HPE DL380 Gen10 server built for?
- The HPE ProLiant DL380 Gen10 is designed for diverse enterprise environments, including virtualisation, database hosting, and general business applications. Its 2U dual-socket chassis supports scalable compute, up to two processors, and flexible storage expansion.
Does this HPE DL380 Gen10 server include storage drives?
- No, this server comes with eight 2.5-inch SFF hot-swap bays but includes no pre-installed hard drives. Drives can be added and managed using the onboard HPE Smart Array P408i-a RAID controller.
Does the server come with a warranty in South Africa?
- Yes, this server comes with a 3-year parts, labour, and on-site warranty supported locally in South Africa. Server Hub provides reliable fulfilment and local customer support.
