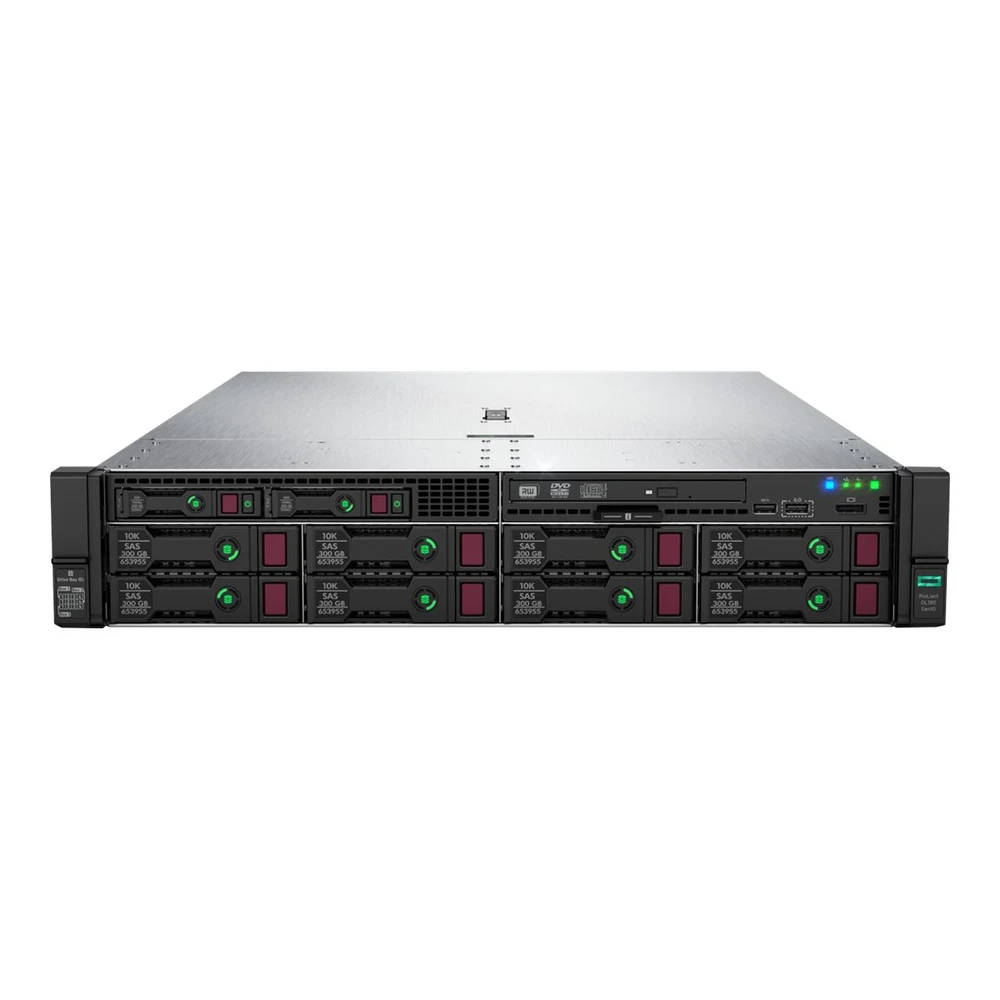

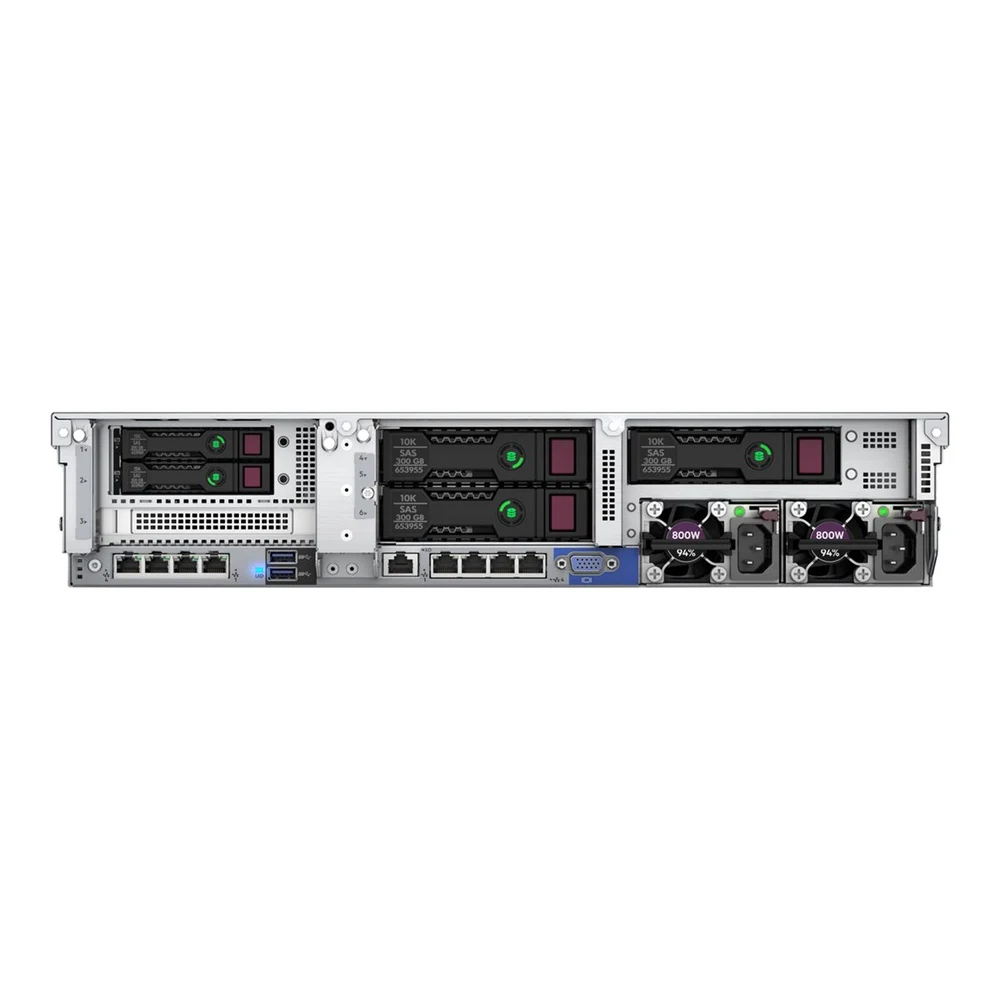

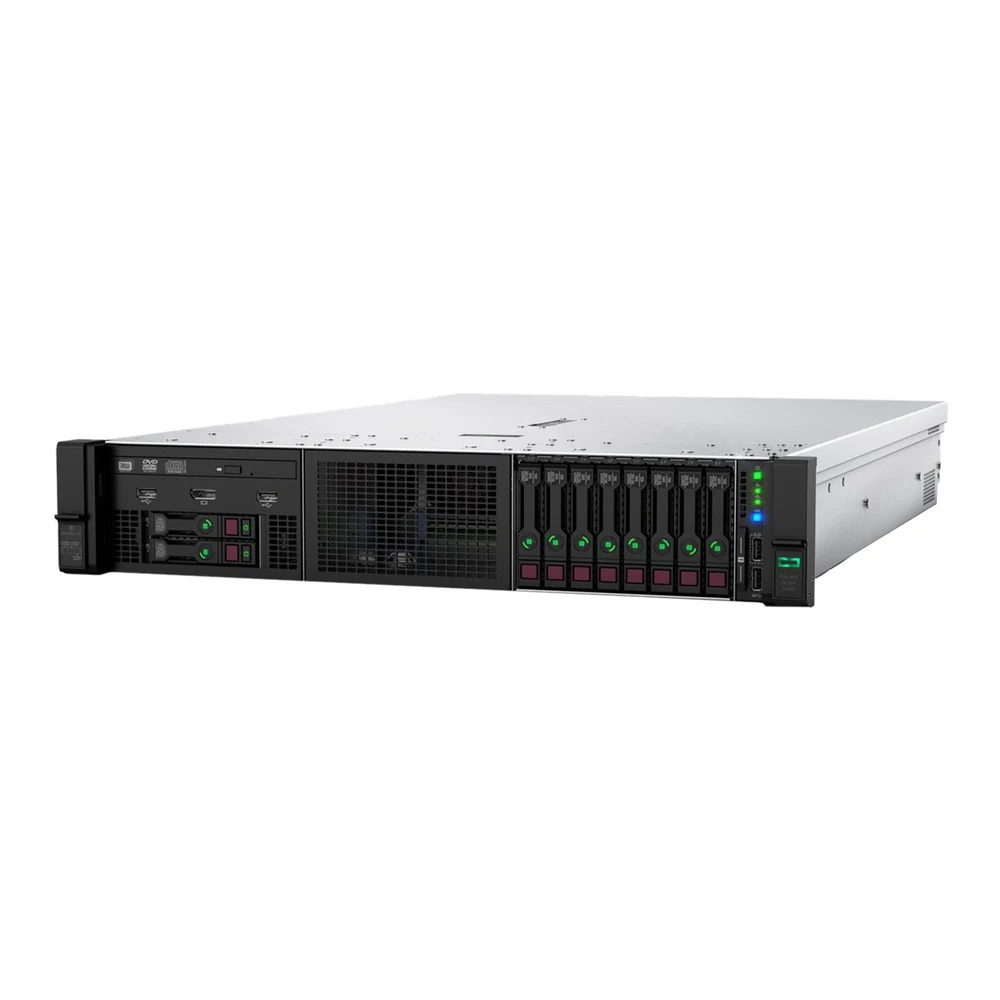

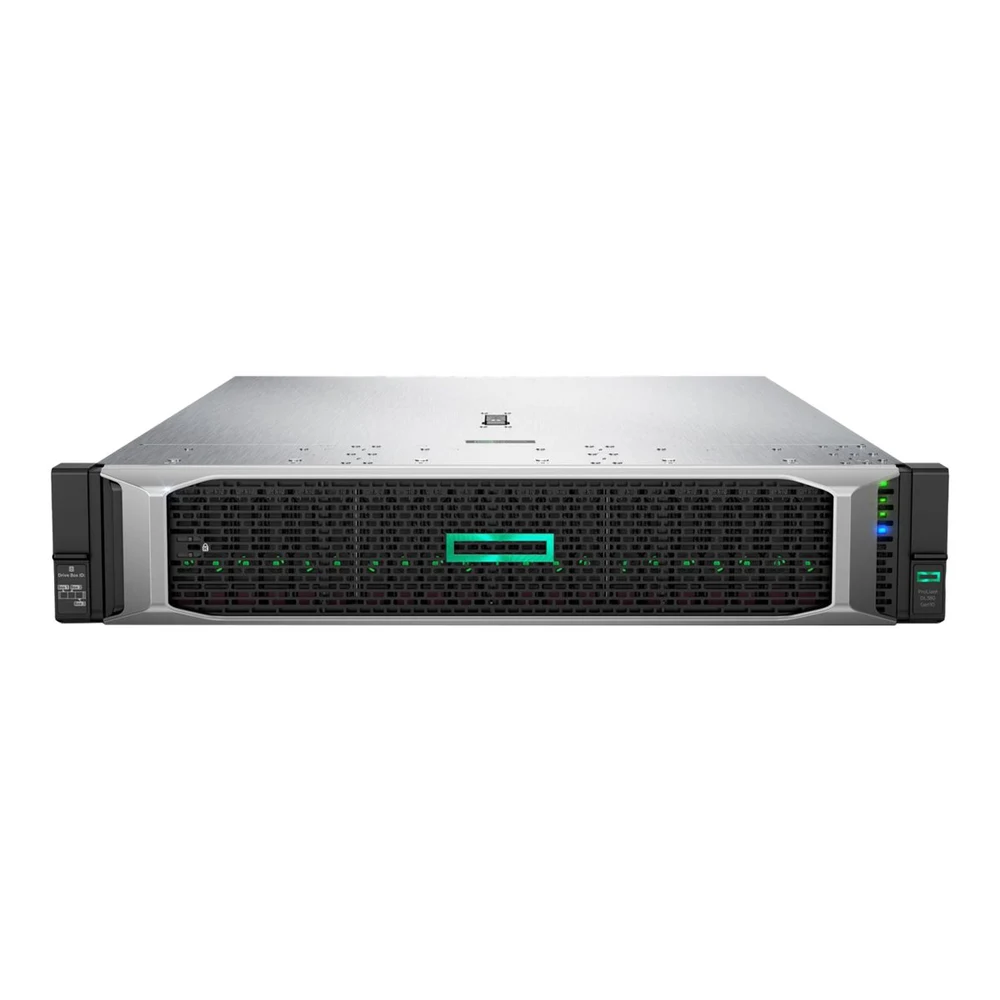

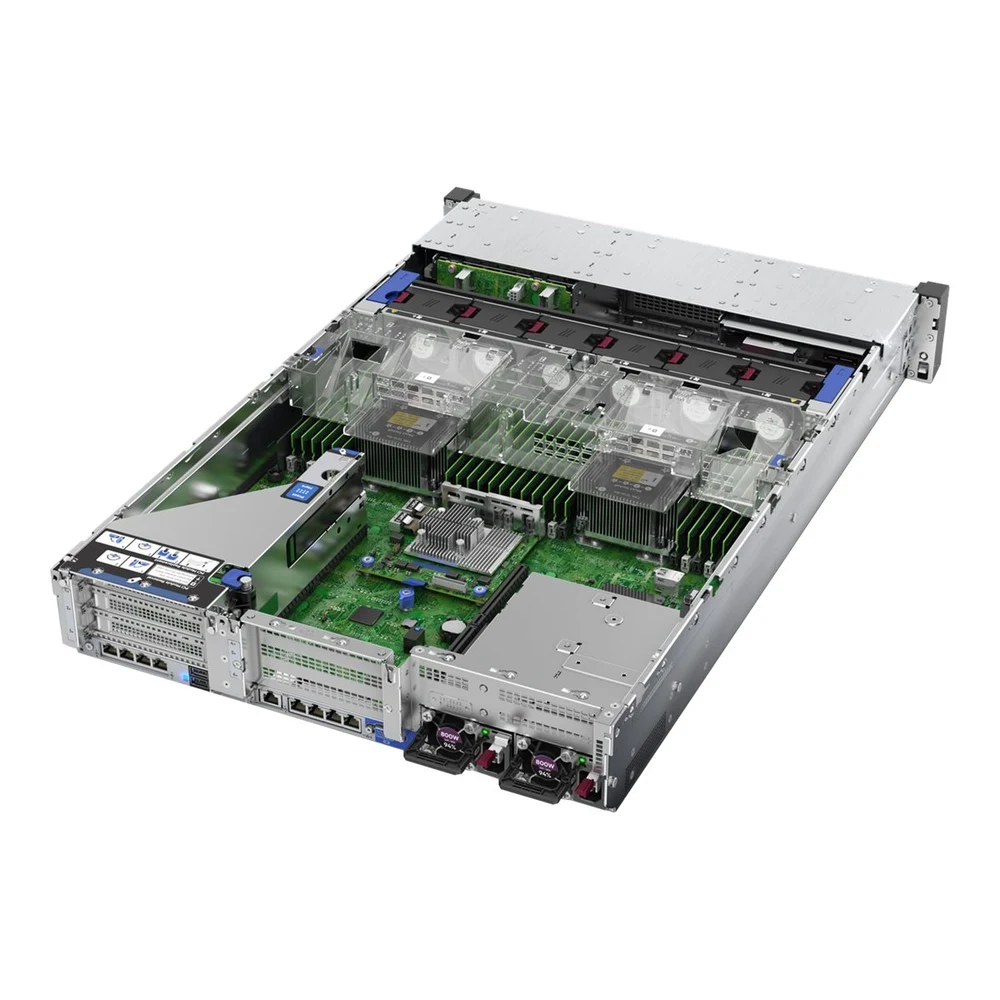

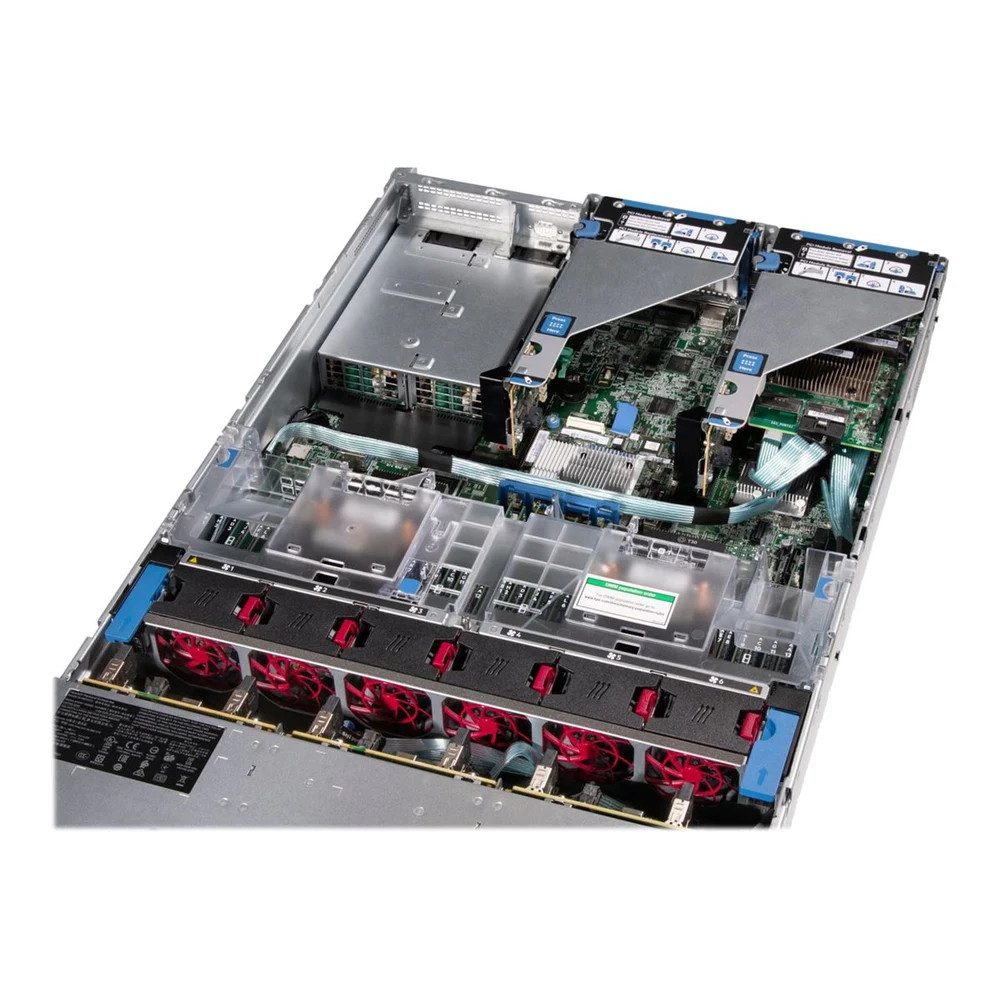

HPE DL380 Gen10 4210R 1P 32G NC 8SFF Svr

Name: HPE DL380 Gen10 4210R 1P 32G NC 8SFF Svr
Brand: HPE
SKU: SPT-C1F90D5F3DF9F3
Price: 196330 ZAR
Availability: BackOrder

R 196 330

Available to order

3–7 day delivery

New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).

30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

Quantity

HPE DL380 Gen10 4210R 1P 32G NC 8SFF Svr.

General — Type: Server. Product Form Factor: Rack-mountable - 2U. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: Worldwide (excluding China, Japan). CPU: Intel Xeon Silver 4210R. Clock Speed: 2.4 GHz. Max Turbo Speed: 3.2 GHz.

Specifications

CPU: Intel Xeon Silver 4210R
Buffer Size: 2 GB

Highlights

Intel Xeon Silver 4210R 10-core processor with 2.4 GHz base and 3.2 GHz turbo speed
32 GB DDR4 Advanced ECC registered SmartMemory with 24 total DIMM slots
8 hot-swap 2.5-inch SFF drive bays for SAS and SATA storage
HPE Smart Array P408i-a 12Gbps SAS RAID controller with 2 GB cache
Quad-port Gigabit Ethernet networking and dedicated HPE iLO 5 management port
800 Watt 80 PLUS Platinum hot-plug power supply

Networking

Ethernet Ports: 4 x Gigabit Ethernet
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 5
Features: Wake on LAN (WoL), ACPI support, PXE support

Power

Device Type: Power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)
Power Provided: 800 Watt
80 PLUS Certification: 80 PLUS Platinum

General

Type: Server
Product Form Factor: Rack-mountable - 2U
Server Scalability: 2-way
Hot-Swap Bays Qty: 8
Localisation: Region: Worldwide (excluding China, Japan)

Cache Memory

Installed Size: L3 Cache - 13.75 MB
Cache Per Processor: 13.75 MB

Card Reader

Type: Card reader
Supported Flash Memory Cards: microSD

Dimensions & Weight

Width: 44.55 cm
Depth: 73.03 cm
Height: 8.74 cm
Weight: 14.76 kg

Environmental Parameters

Min Operating Temperature: 10 °C
Max Operating Temperature: 35 °C
Humidity Range Operating: 8 - 90% (non-condensing)

Environmental Standards

ENERGY STAR Certified: Yes
ENERGY STAR Version: 3.0

Expansion / Connectivity

Bays: 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots: 1 (total) / 1 (free) x microSD Card (internal)
Slots: 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height
Slots: 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height
Slots: 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height
Slots: 1 (total) / 0 (free) x FlexibleLOM
Interfaces: 1 x HPE iLO - Type A (1 in front)
Interfaces: 5 x USB 3.0 (1 front, 2 rear, 2 internal)
Interfaces: 1 x HPE iLO - RJ-45
Interfaces: 4 x LAN (Gigabit Ethernet) - RJ-45
Interfaces: 1 x VGA

Graphics Controller

Video Memory: 16 MB
Video Interfaces: VGA

Hard Drive

Type: No HDD

Manufacturer Warranty

Service & Support: Limited warranty - parts and labour - 3 years - on-site

Miscellaneous

Included Accessories: Cable management arm, 4 standard fans, SFF Easy install rails
Compliant Standards: AES, TLS v1.2, low halogen, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1

Monitor

Monitor Type: None.

Operating System / Software

OS Certified: CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS

Optical Storage

Type: No optical drive

Processor / Chipset

CPU: Intel Xeon Silver 4210R
Clock Speed: 2.4 GHz
Max Turbo Speed: 3.2 GHz
Number of Cores: 10-core
CPU Qty: 1
Max CPU Qty: 2
CPU Upgradability: Upgradable
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket: FCLGA3647 Socket
Chipset Type: Intel C621

RAM

Installed Size: 32 GB / 1.5 TB (max)
Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2400 MHz
Rated Memory Speed: 2933 MHz
Form Factor: DIMM 288-pin
Slots: 24 (Total) / 23 (empty)
Features: Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
Configuration Features: 1 x 32 GB
RAM Supported: 3 TB Load-Reduced - ECC
RAM Supported: 1.5 TB registered - ECC
RAM Supported: 192 GB Non-Volatile - ECC
RAM Supported: 6 TB - HPE Persistent Memory - Optane DC Persistent

Storage Controller

Type: 1 x RAID - PCIe 3.0 x8
Controller Interface Type: SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name: HPE Smart Array P408i-a
Channel Qty: 8
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size: 2 GB

Related Products

Apple

The HPE DL380 Gen10 is a scalable 2U rack-mountable server engineered for business computing, virtualisation, and data storage. Configured with a 10-core Intel Xeon Silver 4210R processor, 32 GB of DDR4 SmartMemory, an HPE Smart Array P408i-a controller, and 8 hot-swap 2.5-inch SFF drive bays, it provides expandable dual-socket enterprise performance for corporate IT environments.

Frequently asked questions

What workloads is the HPE DL380 Gen10 server suited for?: The HPE DL380 Gen10 server is designed for demanding enterprise workloads including virtualisation, database management, and core business applications. Powered by a 10-core Intel Xeon Silver processor with dual-processor scalability, it delivers reliable compute power for growing IT infrastructures.
Can the memory and storage capacity be upgraded?: Yes, the system offers substantial expansion capabilities. It includes 24 DIMM slots supporting extensive RAM upgrades beyond the installed 32 GB module, along with 8 hot-swap 2.5-inch SFF bays managed by a hardware RAID controller.
Does this server come with a warranty in South Africa?: Yes, this product is backed by a 3-year limited parts and labour on-site warranty. Support and fulfilment are handled locally in South Africa through Server Hub.
