hpeSPT-C684E1FD4F9214

HPE DL380 Gen10 4208 1P 32G NC 8SFF Svr

Name: HPE DL380 Gen10 4208 1P 32G NC 8SFF Svr
Brand: HPE
SKU: SPT-C684E1FD4F9214
Price: 191580 ZAR
Availability: BackOrder

R 191 580

Available to order

3–7 day delivery

New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).

30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

Quantity

HPE DL380 Gen10 4208 1P 32G NC 8SFF Svr.

General — Type: Server. Product Form Factor: Rack-mountable - 2U. Built-in Devices: Battery. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: Worldwide (excluding China, Japan). CPU: Intel Xeon Silver 4208. Clock Speed: 2.1 GHz.

Specifications

CPU: Intel Xeon Silver 4208
Buffer Size: 2 GB

Highlights

Intel Xeon Silver 4208 8-core processor with 2.1 GHz clock speed
32 GB DDR4 ECC Registered memory expandable across 24 DIMM slots
8 hot-swap 2.5-inch SFF storage drive bays
HPE Smart Array P408i-a SAS/SATA RAID controller with 2 GB cache
Quad-port Gigabit Ethernet interface and HPE iLO 5 remote management
500W 80 PLUS Platinum certified hot-plug power supply

Networking

Ethernet Ports: 4 x Gigabit Ethernet
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 5
Features: Wake on LAN (WoL), ACPI support, PXE support

Power

Device Type: Power supply - hot-plug
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)
Power Provided: 500 Watt
80 PLUS Certification: 80 PLUS Platinum

General

Type: Server
Product Form Factor: Rack-mountable - 2U
Built-in Devices: Battery
Server Scalability: 2-way
Hot-Swap Bays Qty: 8
Localisation: Region: Worldwide (excluding China, Japan)

Cache Memory

Installed Size: L3 Cache - 11 MB
Cache Per Processor: 11 MB

Dimensions & Weight

Width: 44.55 cm
Depth: 73.03 cm
Height: 8.74 cm
Weight: 14.76 kg

Environmental Parameters

Min Operating Temperature: 10 °C
Max Operating Temperature: 35 °C
Humidity Range Operating: 8 - 90% (non-condensing)

Environmental Standards

ENERGY STAR Certified: Yes
ENERGY STAR Version: 3.0

Expansion / Connectivity

Bays: 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots: 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height
Slots: 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height
Slots: 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height
Interfaces: 1 x HPE iLO - Type A (1 in front)
Interfaces: 5 x USB 3.0 (1 front, 2 rear, 2 internal)
Interfaces: 1 x HPE iLO - RJ-45
Interfaces: 4 x LAN (Gigabit Ethernet) - RJ-45
Interfaces: 1 x VGA

Graphics Controller

Video Memory: 16 MB
Video Interfaces: VGA

Hard Drive

Type: No HDD

Manufacturer Warranty

Service & Support: Limited warranty - parts and labour - 3 years - on-site

Miscellaneous

Included Accessories: Cable management arm, 4 standard fans, SFF Easy install rails
Compliant Standards: AES, TLS v1.2, low halogen, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1

Monitor

Monitor Type: None.

Operating System / Software

OS Certified: CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS

Optical Storage

Type: No optical drive

Processor / Chipset

CPU: Intel Xeon Silver 4208
Clock Speed: 2.1 GHz
Max Turbo Speed: 3.2 GHz
Number of Cores: 8-core
CPU Qty: 1
Max CPU Qty: 2
CPU Upgradability: Upgradable
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket: FCLGA3647 Socket
Chipset Type: Intel C621

RAM

Installed Size: 32 GB / 1.5 TB (max)
Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2400 MHz
Rated Memory Speed: 2933 MHz
Form Factor: DIMM 288-pin
Slots: 24 (Total) / 23 (empty)
Features: Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
Configuration Features: 1 x 32 GB
RAM Supported: 3 TB Load-Reduced - ECC
RAM Supported: 1.5 TB registered - ECC
RAM Supported: 192 GB Non-Volatile - ECC
RAM Supported: 6 TB - HPE Persistent Memory - Optane DC Persistent

Storage Controller

Type: 1 x RAID - PCIe 3.0 x8
Controller Interface Type: SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name: HPE Smart Array P408i-a
Channel Qty: 8
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size: 2 GB

Related Products

Apple

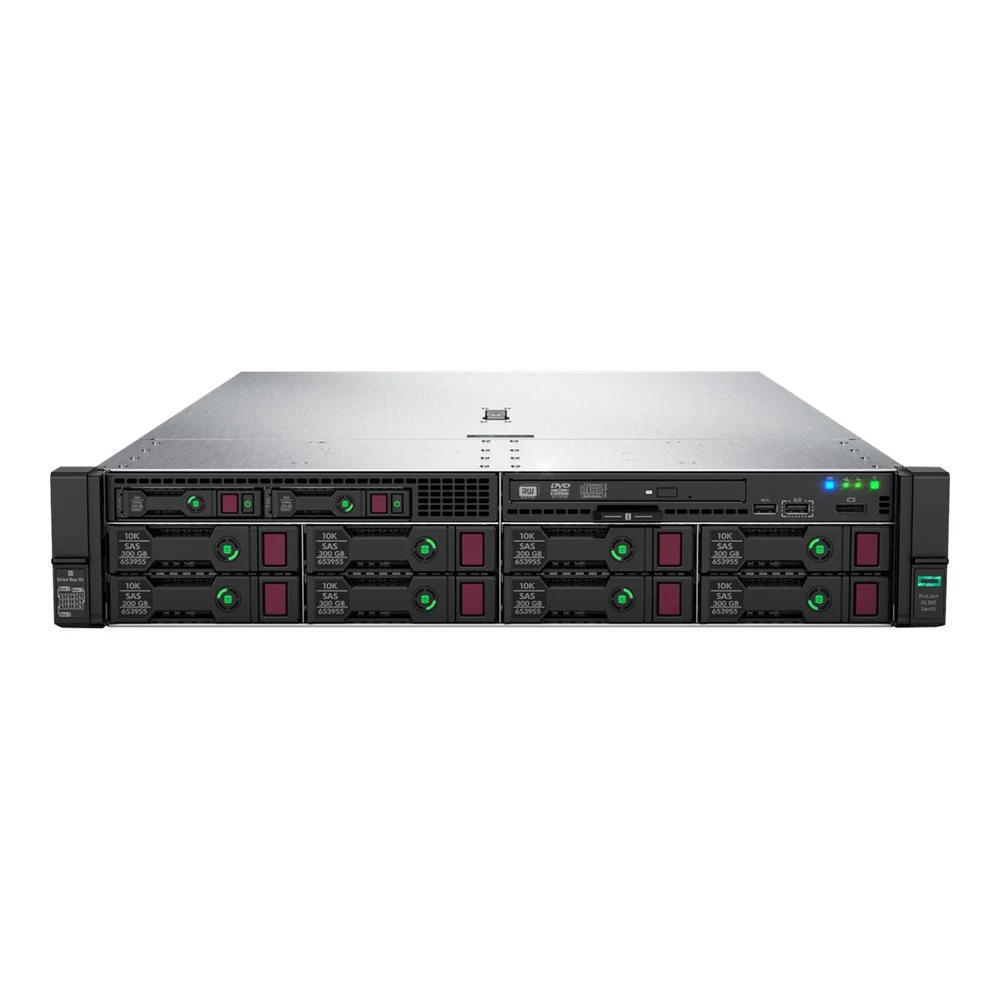

The HPE DL380 Gen10 4208 1P 32G NC 8SFF is a 2U rack-mountable enterprise server built for virtualisation, database management, and scalable business workloads. Powered by an 8-core Intel Xeon Silver 4208 processor, 32 GB of DDR4 memory, and 8 hot-swap SFF drive bays, it delivers reliable 2-way scalability and remote management via HPE iLO 5.

Frequently asked questions

What is the HPE DL380 Gen10 server used for?: This 2U rack server is designed for demanding business workloads, including virtualisation, database administration, and multi-user enterprise applications. Its 8-core Intel Xeon Silver processor and expandable memory architecture handle compute-heavy operations with ease.
Can the storage and memory capacity be upgraded on this model?: Yes, the server features 8 hot-swap 2.5-inch SFF bays ready for SATA or SAS drives, and supports a second processor to unlock all 24 DIMM slots for extensive memory expansion. The modular 2U chassis also accommodates additional PCIe expansion cards as requirements expand.
Does the HPE DL380 Gen10 come with a warranty?: Yes, it is covered by a local South African warranty via Server Hub. The server includes 3-year parts and labour on-site support to keep your critical business infrastructure running smoothly.
