SPT-E07708BE54B820
HPE DL380 G10+ 5315Y MR416i-p NC Svr
R 279 040
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1

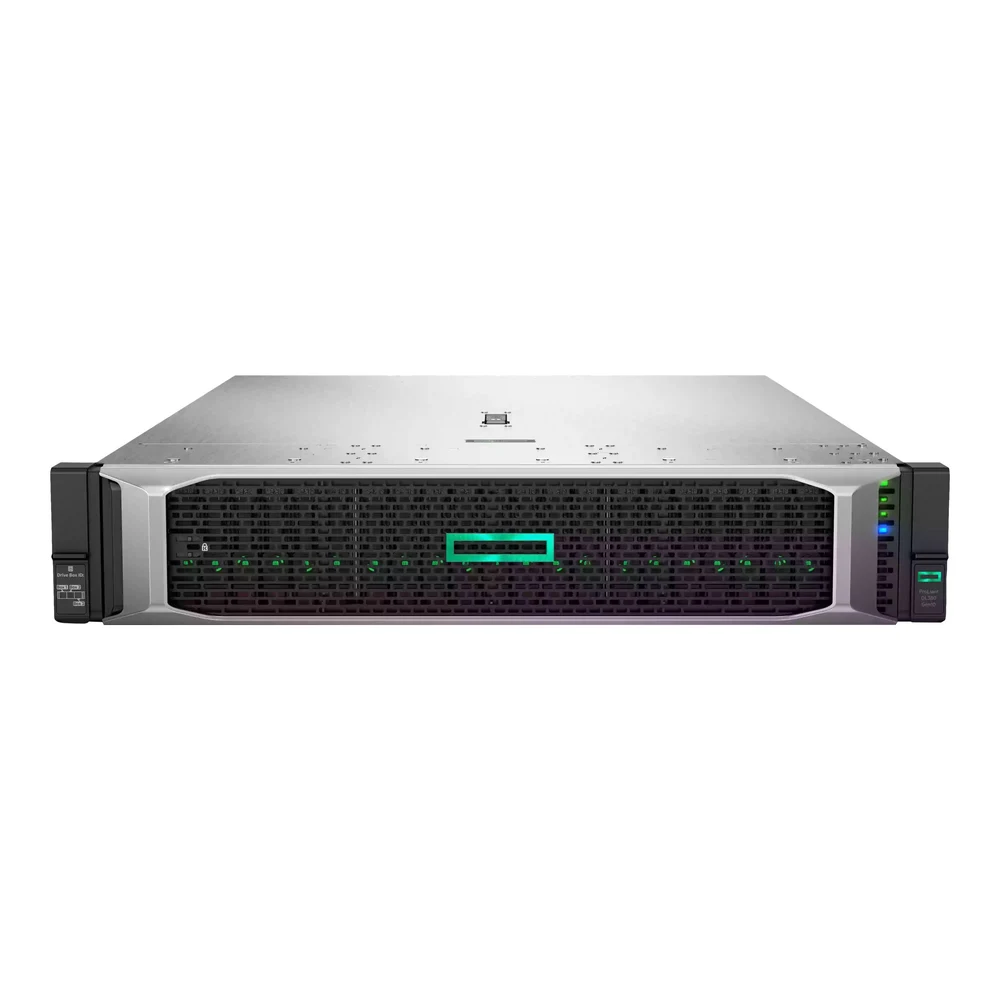

HPE DL380 G10+ 5315Y MR416i-p NC Svr.
General — Type: Server. Product Form Factor: Rack-mountable - 2U. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: Worldwide. CPU: Intel Xeon Gold 5315Y. Clock Speed: 3.2 GHz. Number of Cores: 8-core.
Specifications
- CPU
- Intel Xeon Gold 5315Y
- Buffer Size
- 4 GB
Highlights
- Intel Xeon Gold 5315Y 8-core processor clocked at 3.2 GHz
- 32 GB DDR4 ECC Registered RAM expandable up to 2 TB
- 8 hot-swap 2.5-inch SFF storage drive bays
- Dual-port 10GbE OCP 3.0 networking via Broadcom BCM57412
- 800W 80 PLUS Titanium hot-plug power supply
- Integrated Lights-Out 5 (iLO 5) remote management
Networking
- Interface (Bus) Type
- Open Compute Project mezzanine (OCP) 3.0
- Ethernet Ports
- 2 x 10 Gigabit Ethernet
- Ethernet Controller
- Broadcom BCM57412
- Data Link Protocol
- 10 Gigabit Ethernet
- Remote Management Controller
- Integrated Lights-Out 5
Power
- Device Type
- Power supply - hot-plug
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Installed Qty
- 1
- Max Supported Qty
- 2
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Provided
- 800 Watt
- 80 PLUS Certification
- 80 PLUS Titanium
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 2U
- Server Scalability
- 2-way
- Hot-Swap Bays Qty
- 8
- Localisation
- Region: Worldwide
Cache Memory
- Installed Size
- 12 MB
- Cache Per Processor
- 12 MB
Dimensions & Weight
- Width
- 44.54 cm
- Depth
- 71 cm
- Height
- 8.75 cm
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
Expansion / Connectivity
- Bays
- 8 (total) / 8 (free) x hot-swap 2.5" SFF
- Slots
- 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height
- Slots
- 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x8 mode)
- Slots
- 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height (x8 mode)
- Interfaces
- 1 x HPE iLO - RJ-45
- Interfaces
- 3 x USB 3.0 (1 front, 2 rear)
- Interfaces
- 1 x HPE iLO (service port)
- Interfaces
- 2 x LAN (10Gigabit Ethernet) - SFP+
- Interfaces
- 1 x VGA
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA
Hard Drive
- Type
- No HDD
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Miscellaneous
- Included Accessories
- CPU standard heatsink, HPE Easy Install Rails with CMA, 6 maximum performance fans
- Compliant Standards
- AES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2
Monitor
- Monitor Type
- None.
Operating System / Software
- OS Provided
- No operating system
Optical Storage
- Type
- No optical drive
Processor / Chipset
- CPU
- Intel Xeon Gold 5315Y
- Clock Speed
- 3.2 GHz
- Number of Cores
- 8-core
- CPU Qty
- 1
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- Chipset Type
- Intel C621A
RAM
- Installed Size
- 32 GB / 2 TB (max)
- Technology
- DDR4 SDRAM
- Effective Memory Speed
- 2933 MHz
- Rated Memory Speed
- 3200 MHz
- Form Factor
- DIMM 288-pin
- Slots
- 32 (Total) / 31 (empty)
- Features
- Registered, 8-channel memory architecture, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only
- Configuration Features
- 1 x 32 GB
- RAM Supported
- 8 TB Load-Reduced
- RAM Supported
- 2 TB registered
- RAM Supported
- 8 TB - HPE Persistent Memory - Optane DC Persistent
Storage Controller
- Type
- 1
- Buffer Size
- 4 GB
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE DL380 Gen10+ is a 2U dual-socket rack-mountable server powered by an 8-core Intel Xeon Gold 5315Y processor and 32 GB of DDR4 memory. Designed for enterprise workloads, virtualisation, and data-intensive business applications, it features 8 hot-swap 2.5-inch drive bays, integrated HPE iLO 5 management, and dual 10GbE networking for dependable datacentre performance.
Frequently asked questions
What workloads is the HPE DL380 Gen10+ server designed for?
- The HPE DL380 Gen10+ is engineered for diverse datacentre and enterprise workloads, including virtualisation, database management, and compute-heavy business applications. With its 8-core Intel Xeon Gold processor and expandable 2U chassis, it provides dependable scalability for growing IT environments.
Can the memory and storage on this server be upgraded?
- Yes, the server offers extensive expansion options. It includes 8 hot-swap 2.5-inch SFF drive bays for storage expansion and supports dual processors alongside 32 DIMM slots to significantly scale up memory as requirements grow.
Does this server come with a local warranty?
- Yes, this server is covered by a 3-year limited on-site warranty for parts and labour with next business day response. Local South African warranty support is provided through Server Hub.
