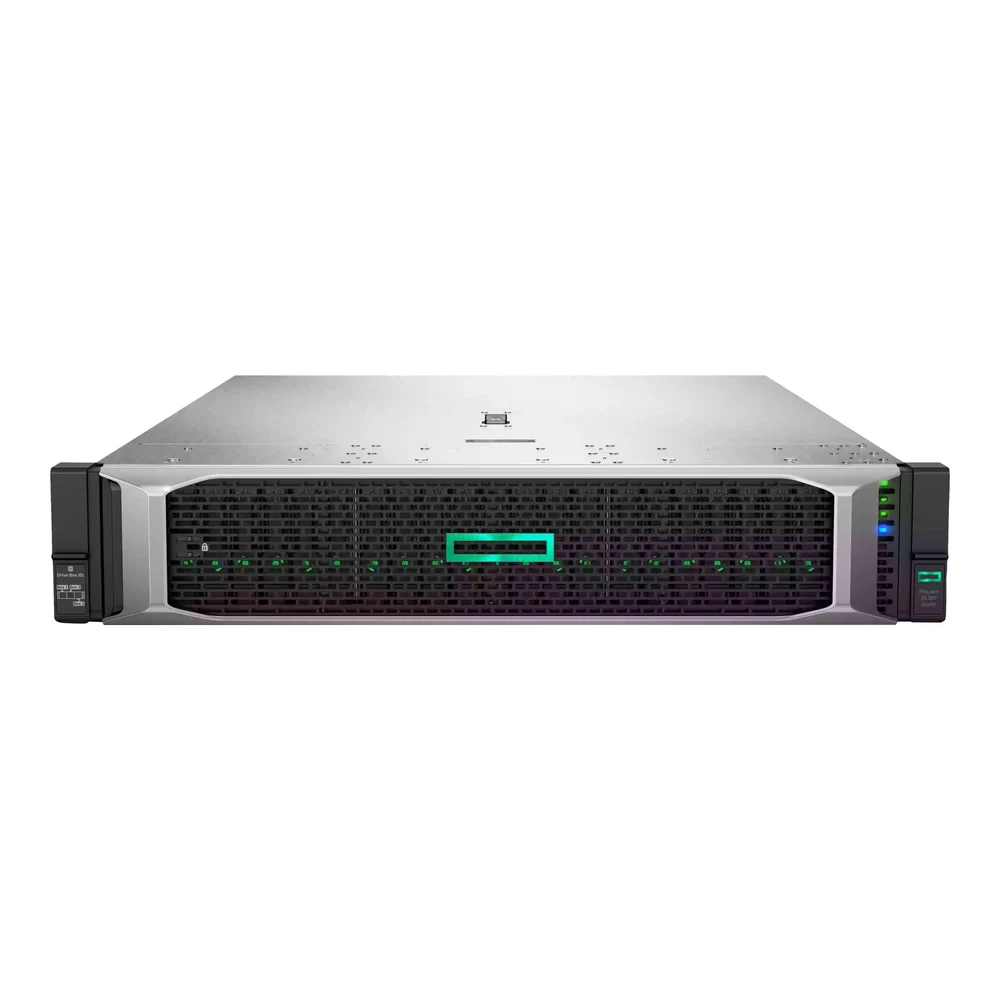

HPE DL380 G10+ 4314 MR416i-p NC EU Svr
hpeSPT-7A32D2617F6BCF

HPE DL380 G10+ 4314 MR416i-p NC EU Svr

R 277 870
Available to order
3–7 day delivery

New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).

30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

Quantity
1

HPE DL380 G10+ 4314 MR416i-p NC EU Svr.

General — Type: Server. Product Form Factor: Rack-mountable - 2U. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: European Union. CPU: Intel Xeon Silver 4314. Clock Speed: 2.4 GHz. Max Turbo Speed: 3.4 GHz.

Specifications

CPU
Intel Xeon Silver 4314
Installed Size
32 GB (installed) / 2 TB (max)
Buffer Size
4 GB

Highlights

  • 2U rack-mountable chassis with 8 hot-swap 2.5-inch SFF bays
  • 16-core Intel Xeon Silver 4314 processor at 2.4 GHz base and 3.4 GHz turbo
  • 32 GB DDR4 registered RAM across 32 DIMM slots
  • Dual-port 10 Gigabit Ethernet networking via Broadcom BCM57412
  • Integrated Lights-Out 5 (iLO 5) remote management controller
  • 800W 80 PLUS Titanium hot-plug power supply with optional redundancy

Networking

Interface (Bus) Type
Open Compute Project mezzanine (OCP) 3.0
Ethernet Ports
2 x 10 Gigabit Ethernet
Ethernet Controller
Broadcom BCM57412
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Controller
Integrated Lights-Out 5

Power

Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
1
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
800 Watt
80 PLUS Certification
80 PLUS Titanium

General

Type
Server
Product Form Factor
Rack-mountable - 2U
Server Scalability
2-way
Hot-Swap Bays Qty
8
Localisation
Region: European Union

Cache Memory

Installed Size
24 MB
Cache Per Processor
24 MB

Dimensions & Weight

Width
44.54 cm
Depth
71 cm
Height
8.75 cm

Environmental Parameters

Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)

Expansion / Connectivity

Bays
8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height
Slots
1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x8 mode)
Slots
1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height (x8 mode)
Interfaces
1 x HPE iLO - RJ-45
Interfaces
3 x USB 3.0 (1 front, 2 rear)
Interfaces
1 x HPE iLO (service port)
Interfaces
2 x LAN (10Gigabit Ethernet)
Interfaces
1 x VGA

Graphics Controller

Video Memory
16 MB
Video Interfaces
VGA

Hard Drive

Type
No HDD

Manufacturer Warranty

Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day

Miscellaneous

Included Accessories
CPU standard heatsink, HPE Easy Install Rails with CMA, 6 maximum performance fans
Compliant Standards
AES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2

Monitor

Monitor Type
None.

Operating System / Software

OS Provided
No operating system

Optical Storage

Type
No optical drive

Processor / Chipset

CPU
Intel Xeon Silver 4314
Clock Speed
2.4 GHz
Max Turbo Speed
3.4 GHz
Number of Cores
16-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Chipset Type
Intel C621A

RAM

Installed Size
32 GB (installed) / 2 TB (max)
Technology
DDR4 SDRAM
Effective Memory Speed
2933 MHz
Rated Memory Speed
3200 MHz
Form Factor
DIMM 288-pin
Slots
32 (Total) / 31 (empty)
Features
Registered, HP SmartMemory, 8-channel memory architecture, slots 17 - 32 are available in two-processor configuration only
Configuration Features
1 x 32 GB
RAM Supported
8 TB Load-Reduced
RAM Supported
2 TB registered
RAM Supported
8 TB - HPE Persistent Memory - Optane DC Persistent

Storage Controller

Buffer Size
4 GB

Related Products

iPhone 17E Silicone Case with MagSafe - Black
Apple

iPhone 17E Silicone Case with MagSafe - Black

3–7 day delivery
R 1 220Available
Apple Power Adapter Extension Cable
Apple

Apple Power Adapter Extension Cable

3–7 day delivery
R 459Available
Sold out
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
rct

RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount

3–7 day delivery
R 260Sold Out
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
zebra

Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking

Ships in 10–15 business days
R 3 920Available

The HPE DL380 G10+ is a dual-socket 2U rack-mountable enterprise server powered by a 16-core Intel Xeon Silver 4314 processor and 32 GB of DDR4 memory. Designed for virtualisation, enterprise databases, and demanding computing workloads, it provides 8 hot-swap 2.5-inch drive bays, dual 10GbE network ports, and remote management through HPE iLO 5.

Frequently asked questions

What workloads is the HPE DL380 G10+ server built for?

The HPE DL380 G10+ is designed for demanding business workloads including virtualisation, software-defined storage, and enterprise database hosting. Its 16-core Intel Xeon Silver 4314 processor and 2-way scalability provide consistent compute power for multi-threaded applications.

Can the storage and memory capacity be upgraded?

Yes, the server supports memory upgrades across 32 DIMM slots up to 2 TB of registered DDR4 RAM or 8 TB of LRDIMM. It also features 8 hot-swap 2.5-inch SFF drive bays for expanding storage capacity as requirements increase.

Does the HPE DL380 G10+ include warranty cover in South Africa?

Yes, it includes a 3-year on-site parts and labour warranty with next-business-day response via Server Hub. This gives South African organisations dedicated enterprise hardware support.
