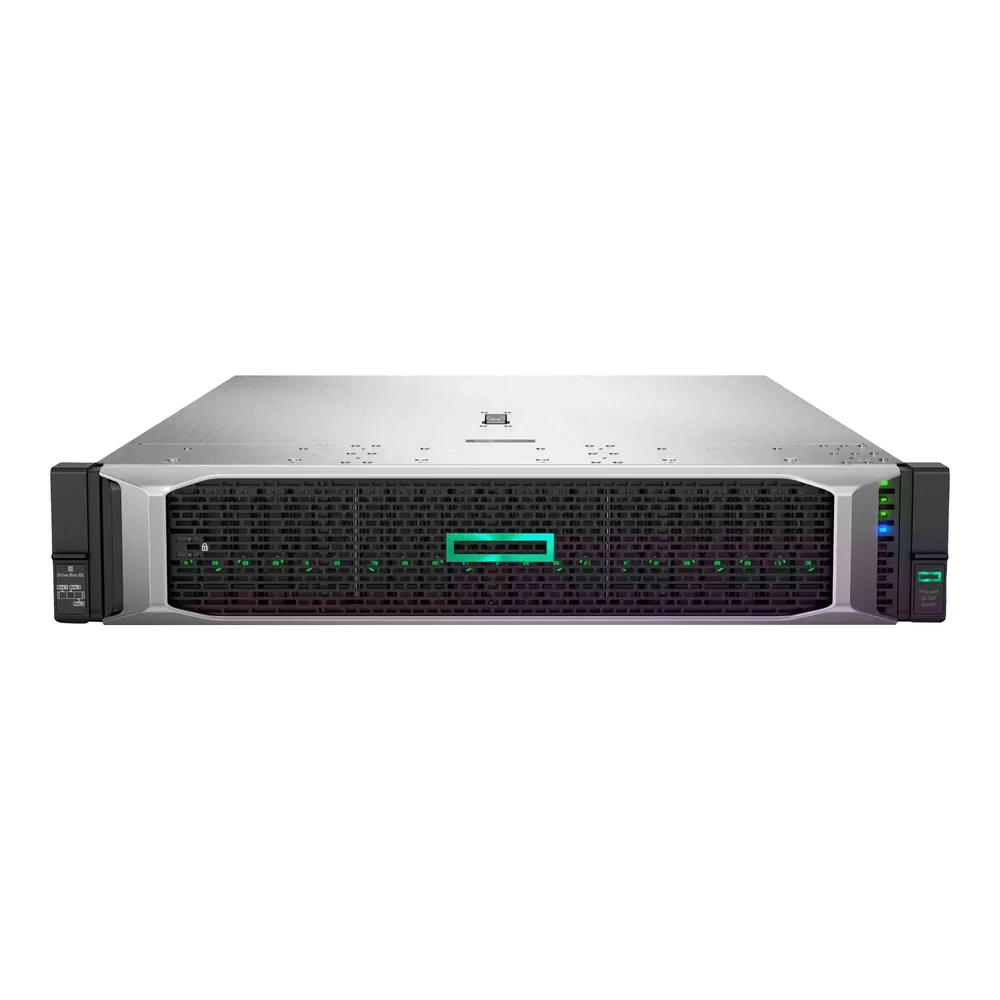

HPE DL380 G10+ 4310 MR416i-p NC 8SFF Svr
hpeSPT-927BAEC0F054C7

HPE DL380 G10+ 4310 MR416i-p NC 8SFF Svr

R 259 670
Available to order
3–7 day delivery

New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).

30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

Quantity
1

HPE DL380 G10+ 4310 MR416i-p NC 8SFF Svr.

General — Type: Server. Product Form Factor: Rack-mountable - 2U. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: Worldwide. CPU: Intel Xeon Silver 4310. Clock Speed: 2.1 GHz. Max Turbo Speed: 3.3 GHz.

Specifications

CPU
Intel Xeon Silver 4310
Installed Size
32 GB (installed) / 2 TB (max)
Buffer Size
4 GB

Highlights

  • 2U dual-socket rack chassis with 12-core Intel Xeon Silver 4310 processor
  • 32 GB DDR4 SmartMemory with 32 DIMM slots supporting up to 2 TB RDIMM
  • Eight 2.5-inch small form factor hot-swap drive bays
  • Broadcom BCM57412 dual-port 10GbE SFP+ networking interface
  • Embedded HPE Integrated Lights-Out 5 for remote server management
  • 800W hot-plug power supply with optional 1+1 redundancy support

Networking

Interface (Bus) Type
Open Compute Project mezzanine (OCP) 3.0
Ethernet Ports
2 x 10 Gigabit Ethernet
Ethernet Controller
Broadcom BCM57412
Data Link Protocol
10 Gigabit Ethernet
Remote Management Controller
Integrated Lights-Out 5

Power

Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
1
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
800 Watt

General

Type
Server
Product Form Factor
Rack-mountable - 2U
Server Scalability
2-way
Hot-Swap Bays Qty
8
Localisation
Region: Worldwide

Cache Memory

Installed Size
18 MB
Cache Per Processor
18 MB

Dimensions & Weight

Width
44.54 cm
Depth
71 cm
Height
8.75 cm

Environmental Parameters

Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)

Expansion / Connectivity

Bays
8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height
Slots
1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x8 mode)
Slots
1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height (x8 mode)
Interfaces
1 x HPE iLO - RJ-45
Interfaces
3 x USB 3.0 (1 front, 2 rear)
Interfaces
1 x HPE iLO (service port)
Interfaces
2 x LAN (10Gigabit Ethernet) - SFP+
Interfaces
1 x VGA

Graphics Controller

Video Memory
16 MB
Video Interfaces
VGA

Hard Drive

Type
No HDD

Manufacturer Warranty

Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day

Miscellaneous

Included Accessories
HPE Easy Install Rails with CMA, 6 maximum performance fans, CPU high performance heatsink
Compliant Standards
AES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2

Monitor

Monitor Type
None.

Operating System / Software

OS Provided
No operating system

Optical Storage

Type
No optical drive

Processor / Chipset

CPU
Intel Xeon Silver 4310
Clock Speed
2.1 GHz
Max Turbo Speed
3.3 GHz
Number of Cores
12-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Chipset Type
Intel C621A

RAM

Installed Size
32 GB (installed) / 2 TB (max)
Technology
DDR4 SDRAM
Effective Memory Speed
2933 MHz
Rated Memory Speed
3200 MHz
Form Factor
DIMM 288-pin
Slots
32 (Total) / 31 (empty)
Features
Registered, 8-channel memory architecture, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only
Configuration Features
1 x 32 GB
RAM Supported
8 TB Load-Reduced
RAM Supported
2 TB registered
RAM Supported
8 TB - HPE Persistent Memory - Optane DC Persistent

Storage Controller

Type
1
Buffer Size
4 GB

Related Products

iPhone 17E Silicone Case with MagSafe - Black
Apple

iPhone 17E Silicone Case with MagSafe - Black

3–7 day delivery
R 1 220Available
Apple Power Adapter Extension Cable
Apple

Apple Power Adapter Extension Cable

3–7 day delivery
R 459Available
Sold out
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
rct

RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount

3–7 day delivery
R 260Sold Out
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
zebra

Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking

Ships in 10–15 business days
R 3 920Available

The HPE DL380 Gen10 Plus is a 2U dual-socket rack-mountable server designed for enterprise virtualisation, database management, and scalable business workloads. Powered by a 12-core Intel Xeon Silver 4310 processor, 32 GB DDR4 memory, and eight 2.5-inch hot-swap drive bays, it provides dependable compute capacity, flexible expansion, and remote administration through HPE Integrated Lights-Out 5.

Frequently asked questions

What workloads is the HPE DL380 Gen10 Plus server suitable for?

The HPE DL380 Gen10 Plus is built for demanding IT environments, including virtualisation, enterprise resource planning, and database management. With a 12-core Intel Xeon Silver 4310 processor and dual-processor support, it handles multi-threaded business applications effectively.

How is the HPE DL380 Gen10 Plus managed remotely?

The server includes HPE Integrated Lights-Out 5 (iLO 5) hardware management with a dedicated RJ-45 port. This allows administrators to securely monitor server health, configure system settings, and manage updates over the network.

Does this server include a warranty in South Africa?

Yes, this server is covered by a 3-year limited parts and labour on-site warranty with next business day response time. Service and warranty support are managed locally in South Africa via Server Hub.
