hpeSPT-2E042B1092D894

HPE DL360 Gen10 TAA 8SFF CTO Svr

Name: HPE DL360 Gen10 TAA 8SFF CTO Svr
Brand: HPE
SKU: SPT-2E042B1092D894
Price: 65360 ZAR
Availability: BackOrder

R 65 360

Available to order

3–7 day delivery

New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).

30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

Quantity

HPE DL360 Gen10 TAA 8SFF CTO Svr.

General — Type: Server. Product Form Factor: Rack-mountable - 1U. Built-in Devices: Led panel. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: Worldwide. CPU: No CPU. Max CPU Qty: 2.

Specifications

CPU: No CPU

Highlights

1U rack-mountable chassis with dual FCLGA3647 processor sockets
24 DDR4 DIMM slots supporting up to 3 TB LRDIMM memory
8 hot-swap 2.5-inch SFF drive bays with HPE Smart Array S100i controller
Quad-port Gigabit Ethernet interface and Integrated Lights-Out 5 remote management
TAA compliant design with support for dual redundant hot-plug power supplies

Networking

Ethernet Ports: 4 x Gigabit Ethernet
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 5
Features: Wake on LAN (WoL), PXE support

Power

Device Type: Power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 0
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)

General

Type: Server
Product Form Factor: Rack-mountable - 1U
Built-in Devices: Led panel
Server Scalability: 2-way
Hot-Swap Bays Qty: 8
Localisation: Region: Worldwide

Card Reader

Type: Card reader
Supported Flash Memory Cards: microSD

Dimensions & Weight

Width: 43.46 cm
Depth: 70.7 cm
Height: 4.29 cm
Weight: 13.04 kg

Environmental Parameters

Min Operating Temperature: 10 °C
Max Operating Temperature: 35 °C
Humidity Range Operating: 8 - 90% (non-condensing)
Sound Emission: 38.1 dBA

Expansion / Connectivity

Bays: 1 (total) / 1 (free) x external Universal Media Bay
Bays: 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots: 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height
Slots: 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile
Slots: 1 (total) / 1 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile)
Slots: 1 (total) / 1 (free) x microSD Card (internal)
Slots: 1 (total) / 1 (free) x PCIe x16 - full-height
Interfaces: 1 x HPE iLO - Type A (1 in front)
Interfaces: 1 x HPE iLO - RJ-45 (1 rear)
Interfaces: 5 x USB 3.0 (1 front, 2 rear, 2 internal)
Interfaces: 1 x VGA (1 rear)
Interfaces: 4 x LAN (Gigabit Ethernet) (4 rear)

Graphics Controller

Video Memory: 16 MB
Video Interfaces: VGA

Hard Drive

Type: No HDD

Manufacturer Warranty

Service & Support: Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Service & Support: Technical support - software application support - 90 days

Miscellaneous

Included Accessories: Single rotor hot plug fans
Compliant Standards: AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, FIPS 201 PIV, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Pricing Type: CTO
TAA Compliant: Yes

Monitor

Monitor Type: None.

Operating System / Software

OS Certified: CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, ClearOS
Software: HPE Server UEFI

Optical Storage

Type: No optical drive

Processor / Chipset

CPU: No CPU
Max CPU Qty: 2
CPU Upgradability: Upgradable
CPU Socket: FCLGA3647 Socket
Chipset Type: Intel C621

RAM

Installed Size: 0 GB / 3 TB (max)
Technology: DDR4 SDRAM - Advanced ECC
Form Factor: DIMM 288-pin
Slots: 24 (Total) / 24 (empty)
Features: Registered, Load-Reduced DIMM (LRDIMM)
RAM Supported: 3 TB Load-Reduced - ECC
RAM Supported: 1.5 TB registered - ECC
RAM Supported: 192 GB Non-Volatile - ECC

Storage Controller

Type: 1 x SATA
Controller Interface Type: SATA 6Gb/s
Storage Controller Name: HPE Smart Array S100i SR Software
Channel Qty: 14

Sustainability Information

ENERGY STAR Certified: Yes
ENERGY STAR Version: 2.1

Related Products

Apple

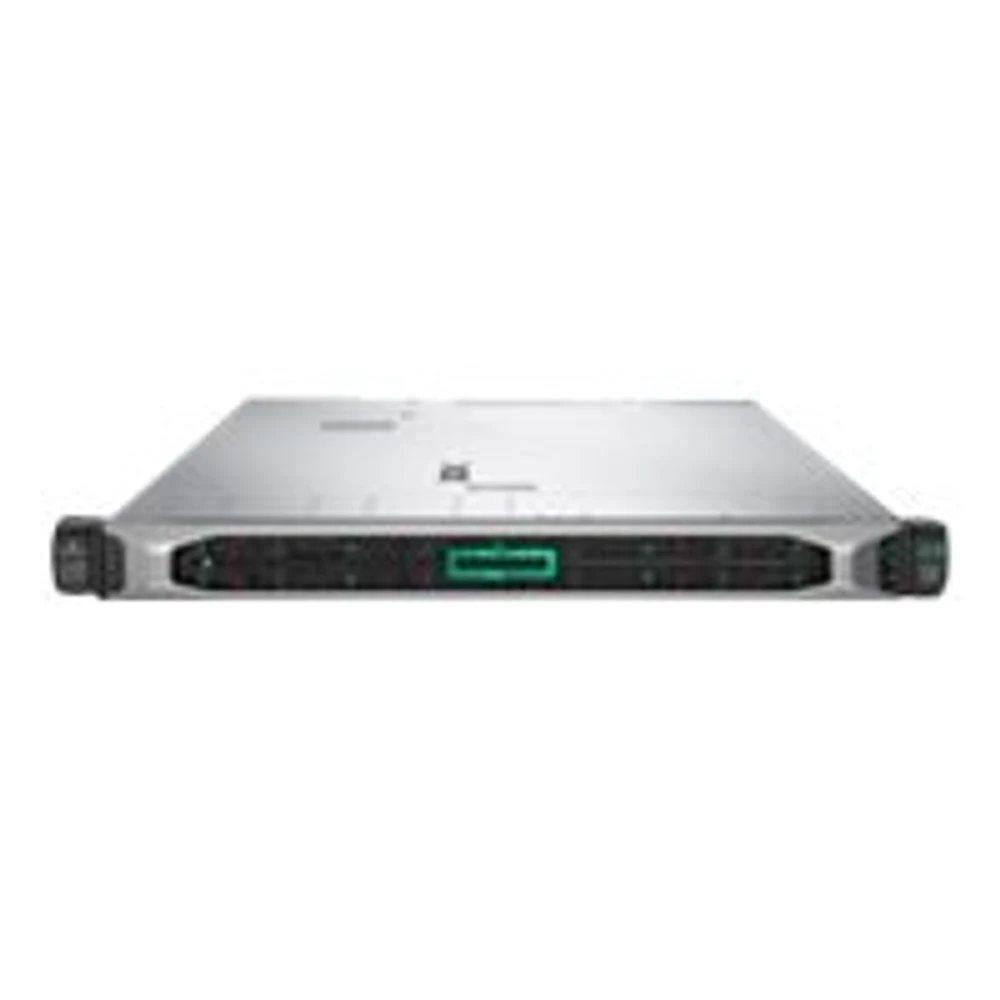

The HPE DL360 Gen10 TAA 8SFF CTO Server is a 1U rack-mountable, two-socket configure-to-order chassis built for enterprise data centres and virtualisation workloads. Designed for flexible deployment, this barebone server supports up to two processors, 24 DDR4 DIMM slots holding up to 3 TB of RAM, and eight hot-swap 2.5-inch small form factor drive bays.

Frequently asked questions

What processors are compatible with this HPE DL360 Gen10 chassis?: This server chassis features dual FCLGA3647 sockets running on the Intel C621 chipset. As a configure-to-order (CTO) model, it ships without pre-installed CPUs, allowing you to install up to two compatible processors to match your computing workload.
What drive configuration does this DL360 Gen10 server support?: The server includes eight hot-swap 2.5-inch small form factor (SFF) drive bays managed by an embedded HPE Smart Array S100i SR software SATA controller. Storage drives are not pre-installed, offering the flexibility to fit your required SSD or HDD capacities.
Does this HPE server come with a local warranty in South Africa?: Yes, it includes a 3-year on-site parts and labour warranty with next business day response. Buyers in South Africa receive dependable local warranty support when ordering via Server Hub.
