SPT-CC749F0E4B4E78

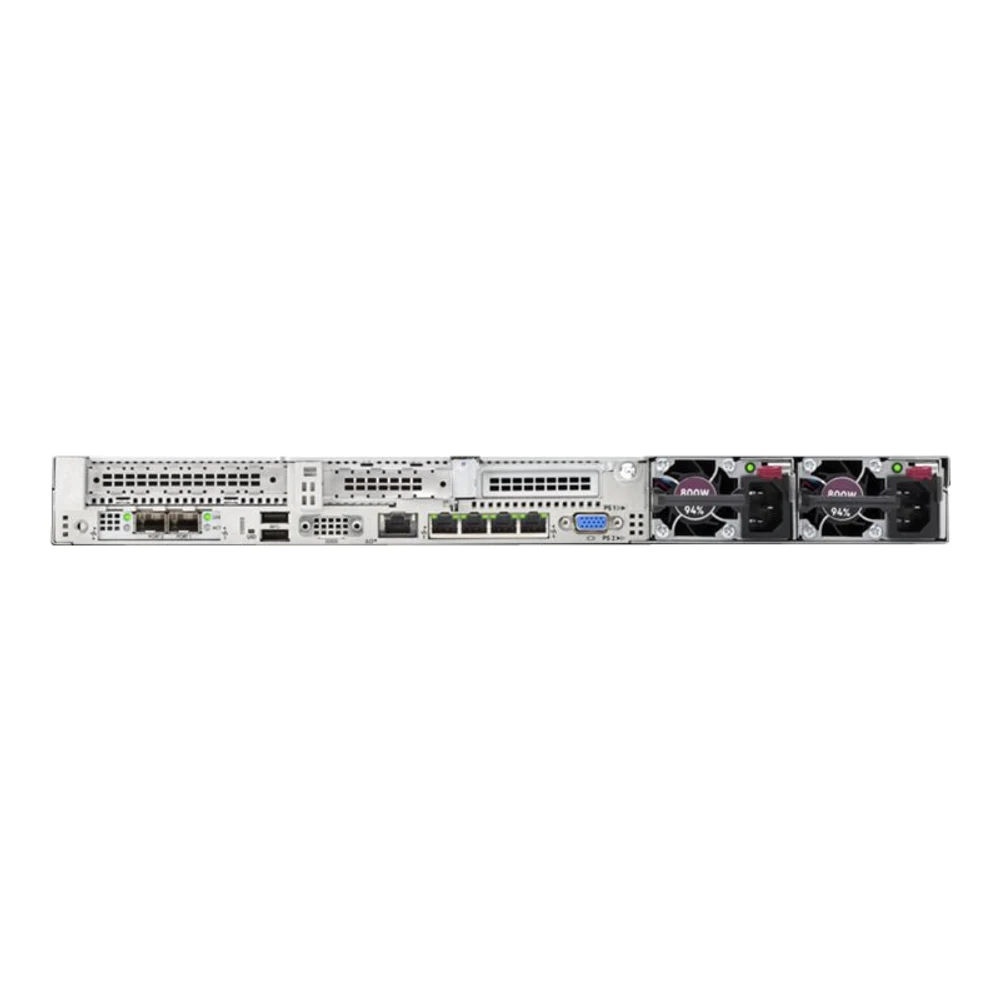

HPE DL360 Gen10 5218 1P 32G NC 8SFF Svr
R 221 430
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1
HPE DL360 Gen10 5218 1P 32G NC 8SFF Svr.
General — Type: Server. Product Form Factor: Rack-mountable - 1U. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: Worldwide. CPU: Intel Xeon Gold 5218. Clock Speed: 2.3 GHz. Max Turbo Speed: 3.9 GHz.
Specifications
- CPU
- Intel Xeon Gold 5218
- Buffer Size
- 2 GB
Highlights
- Intel Xeon Gold 5218 16-core processor with 2.3 GHz base and 3.9 GHz Turbo
- 32 GB DDR4 Advanced ECC SmartMemory with 24 total DIMM slots
- 8 hot-swap 2.5-inch SFF drive bays with HPE Smart Array P408i-a RAID controller
- Integrated Lights-Out 5 (iLO 5) remote management controller
- Quad-port Gigabit Ethernet network interface via HPE 366FLR
- 800W hot-plug power supply with optional 1+1 redundancy support
Networking
- Ethernet Ports
- 4 x Gigabit Ethernet
- Ethernet Controller
- HPE 366FLR
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol
- SNMP 3, IPMI 2.0, SMASH CLP
- Remote Management Controller
- Integrated Lights-Out 5
- Features
- Wake on LAN (WoL), PXE support
Power
- Device Type
- Power supply - hot-plug
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Installed Qty
- 1
- Max Supported Qty
- 2
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Provided
- 800 Watt
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 1U
- Server Scalability
- 2-way
- Hot-Swap Bays Qty
- 8
- Localisation
- Region: Worldwide
Cache Memory
- Installed Size
- L3 Cache - 22 MB
- Cache Per Processor
- 22 MB
Card Reader
- Type
- Card reader
- Supported Flash Memory Cards
- microSD
Dimensions & Weight
- Width
- 43.46 cm
- Depth
- 70.7 cm
- Height
- 4.29 cm
- Weight
- 13.04 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
- Sound Emission
- 38.1 dBA
Environmental Standards
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 2.1
Expansion / Connectivity
- Bays
- 1 (total) / 1 (free) x external Universal Media Bay
- Bays
- 8 (total) / 8 (free) x hot-swap 2.5" SFF
- Slots
- 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height
- Slots
- 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile
- Slots
- 1 (total) / 1 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile)
- Slots
- 1 (total) / 1 (free) x microSD Card (internal)
- Slots
- 1 (total) / 1 (free) x PCIe x16 - full-height
- Interfaces
- 1 x HPE iLO - Type A (1 in front)
- Interfaces
- 1 x HPE iLO - RJ-45 (1 rear)
- Interfaces
- 5 x USB 3.0 (1 front, 2 rear, 2 internal)
- Interfaces
- 1 x VGA (1 rear)
- Interfaces
- 4 x LAN (Gigabit Ethernet) (4 rear)
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA
Hard Drive
- Type
- No HDD
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site
Miscellaneous
- Compliant Standards
- AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Monitor
- Monitor Type
- None.
Operating System / Software
- OS Certified
- CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, ClearOS
- Software
- HPE Server UEFI
Optical Storage
- Type
- No optical drive
Processor / Chipset
- CPU
- Intel Xeon Gold 5218
- Clock Speed
- 2.3 GHz
- Max Turbo Speed
- 3.9 GHz
- Number of Cores
- 16-core
- CPU Qty
- 1
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- Processor Main Features
- Hyper-Threading Technology, Intel Turbo Boost Technology 2
- CPU Socket
- FCLGA3647 Socket
- Chipset Type
- Intel C621
RAM
- Installed Size
- 32 GB / 1.5 TB (max)
- Technology
- DDR4 SDRAM - Advanced ECC
- Effective Memory Speed
- 2666 MHz
- Rated Memory Speed
- 2933 MHz
- Form Factor
- DIMM 288-pin
- Slots
- 24 (Total) / 23 (empty)
- Features
- Registered, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
- Configuration Features
- 1 x 32 GB
- RAM Supported
- 3 TB Load-Reduced - ECC
- RAM Supported
- 1.5 TB registered - ECC
- RAM Supported
- 192 GB Non-Volatile - ECC
Storage Controller
- Type
- RAID
- Controller Interface Type
- SATA 6Gb/s / SAS 12Gb/s
- Storage Controller Name
- HPE Smart Array P408i-a
- Channel Qty
- 8
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
- Buffer Size
- 2 GB
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE DL360 Gen10 is a compact 1U rack-mountable enterprise server built for compute-dense workloads, virtualisation, and database management. Powered by a 16-core Intel Xeon Gold 5218 processor, 32GB of DDR4 SmartMemory, and an 8-bay 2.5-inch SFF hot-swap chassis, it delivers dual-socket scalability and high storage flexibility for growing business data centres.
Frequently asked questions
What workloads is the HPE DL360 Gen10 server best suited for?
- With its 16-core Intel Xeon Gold 5218 processor and support for dual CPUs and high-density memory, this 1U server is ideal for virtualisation, database hosting, and business-critical compute tasks. Its 8 hot-swap SFF bays and Smart Array P408i-a controller also offer flexible, high-throughput storage options.
Can the memory and storage be upgraded on this model?
- Yes, the server comes equipped with 32GB RAM and features 24 DIMM slots capable of supporting up to 1.5TB RDIMM or 3TB LRDIMM in a dual-processor configuration. The chassis provides eight 2.5-inch hot-swap drive bays and multiple PCIe 3.0 expansion slots for added networking or storage controllers.
Does this server come with a local warranty?
- Yes, this HPE server includes a 3-year limited warranty covering parts, labour, and on-site support. South African customers receive official service and technical assistance backed locally via Server Hub.
