SPT-DEE9FB3F39CC21
HPE DL360 Gen10 4215R 1P 32G NC 8SFF Svr
R 210 040
Available to order
3–7 day deliveryPay by EFT or bank deposit — we confirm stock and the final price before you pay.
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1

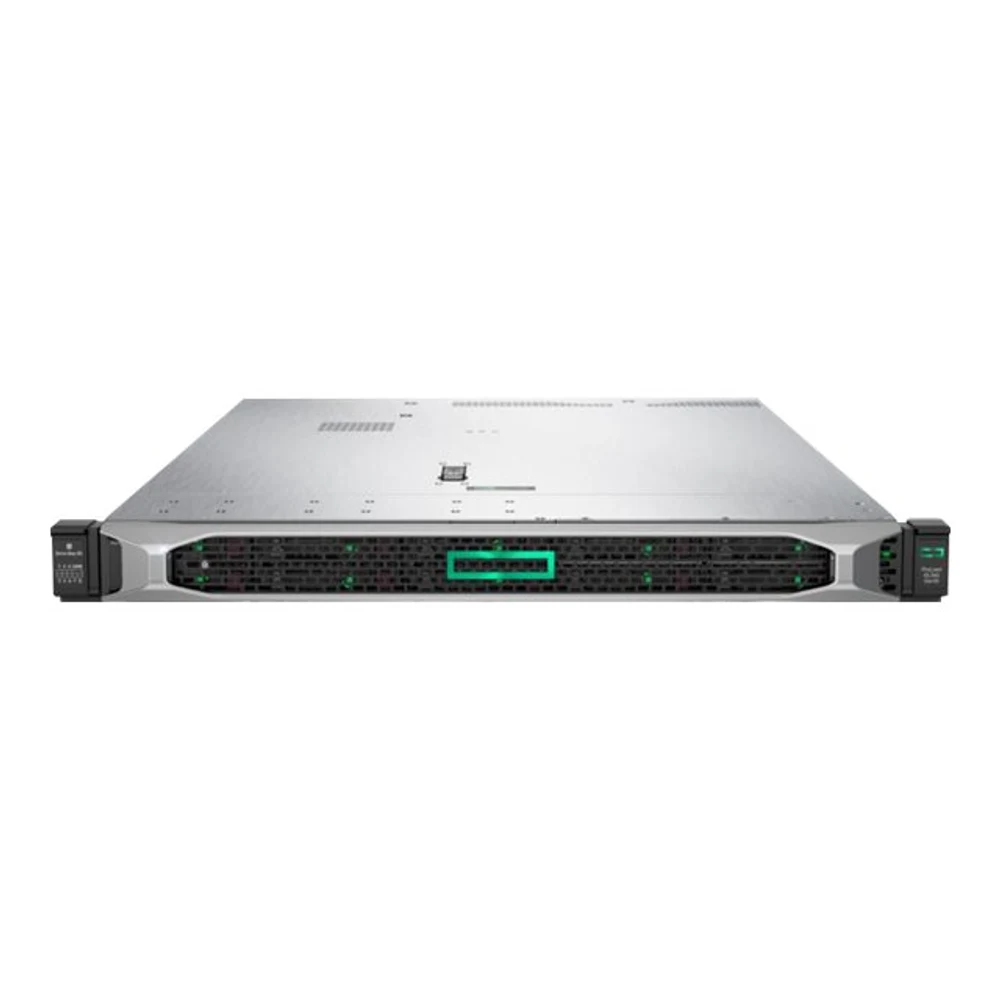

HPE DL360 Gen10 4215R 1P 32G NC 8SFF Svr.
General — Type: Server. Product Form Factor: Rack-mountable - 1U. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: Worldwide. CPU: Intel Xeon Silver 4215R. Clock Speed: 3.2 GHz. Max Turbo Speed: 4 GHz.
Specifications
- CPU
- Intel Xeon Silver 4215R
- Buffer Size
- 2 GB
Highlights
- Intel Xeon Silver 4215R processor
- 8 processor cores at 3.2GHz
- 32GB installed DDR4 memory
- 1U rack-mountable chassis
- 8 hot-swap bays
Networking
- Ethernet Ports
- 2 x 10 Gigabit Ethernet
- Ethernet Controller
- Broadcom BCM57416
- Data Link Protocol
- 10 Gigabit Ethernet
- Remote Management Controller
- Integrated Lights-Out 5
Power
- Device Type
- Power supply - hot-plug
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Provided
- 800 Watt
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 1U
- Server Scalability
- 2-way
- Hot-Swap Bays Qty
- 8
- Localisation
- Region: Worldwide
Cache Memory
- Installed Size
- L3 Cache - 11 MB
- Cache Per Processor
- 11 MB
Dimensions & Weight
- Width
- 43.46 cm
- Depth
- 70.7 cm
- Height
- 4.29 cm
- Weight
- 13.04 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
Expansion / Connectivity
- Bays
- 8 (total) / 8 (free) x hot-swap 2.5" SFF
- Slots
- 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height
- Slots
- 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile
- Slots
- 1 (total) / 0 (free) x FlexibleLOM
- Slots
- 1 (total) / 1 (free) x microSD Card (internal)
- Interfaces
- 5 x USB 3.0 (1 front, 2 rear, 2 internal)
- Interfaces
- 1 x VGA
- Interfaces
- 1 x HPE iLO - RJ-45
- Interfaces
- 2 x LAN (10Gigabit Ethernet)
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA
Hard Drive
- Type
- No HDD
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Miscellaneous
- Included Accessories
- 5 x standard fans, SFF Easy install rails
- Compliant Standards
- WEEE, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1
Monitor
- Monitor Type
- None.
Optical Storage
- Type
- No optical drive
Processor / Chipset
- CPU
- Intel Xeon Silver 4215R
- Clock Speed
- 3.2 GHz
- Max Turbo Speed
- 4 GHz
- Number of Cores
- 8-core
- CPU Qty
- 1
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- Processor Main Features
- Hyper-Threading Technology, Intel Turbo Boost Technology 2
- CPU Socket
- FCLGA3647 Socket
- Chipset Type
- Intel C621
RAM
- Installed Size
- 32 GB / 1.54 TB (max)
- Technology
- DDR4 SDRAM - Advanced ECC
- Effective Memory Speed
- 2400 MHz
- Rated Memory Speed
- 2933 MHz
- Form Factor
- DIMM 288-pin
- Slots
- 24 (Total) / 23 (empty)
- Features
- Registered, dual rank, slots 13 - 24 are available in two-processor configuration only
- Configuration Features
- 1 x 32 GB
- RAM Supported
- 3 TB Load-Reduced - ECC
- RAM Supported
- 1.5 TB registered - ECC
Storage Controller
- Type
- 1 x RAID - PCIe 3.0 x8
- Controller Interface Type
- SATA 6Gb/s / SAS 12Gb/s
- Storage Controller Name
- HPE Smart Array P408i-a
- Channel Qty
- 8
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
- Buffer Size
- 2 GB
Sustainability Information
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 3.0
Related Products
Dell
Dell PowerEdge R640 NVMe Server 2.50Ghz 40-Core 512GB RAM + 4x Caddies + Rails
10–15 day deliveryCertified Refurbished
R 101 610Available
HP
HP ProLiant DL380 G9 Server 8-Bay SFF 2.40Ghz 16-Core 32GB RAM + 3.0TB SATA HDDs
10–15 day deliveryCertified Refurbished
R 22 140Available
Dell
Dell PowerEdge R440 Server 8-Bay SFF 2.70Ghz 24-Core 128GB RAM + 2.4TB SATA SSDs
10–15 day deliveryCertified Refurbished
R 50 970Available
Dell
Dell PowerEdge R740xd NVMe Server 24-Bay 2.60Ghz 36-Core 128GB RAM + 24x Caddies
10–15 day deliveryCertified Refurbished
R 52 960Available
This HPE DL360 Gen10 configuration is a rack-mountable server with an Intel Xeon Silver 4215R processor and 32GB of installed memory. Its 1U chassis lists 8 hot-swap bays. The defined processor, memory and chassis details help IT teams compare the supplied configuration when planning a server installation or expanding an existing rack environment.
Frequently asked questions
Which processor is listed?
- The configuration lists an Intel Xeon Silver 4215R processor. Its stated base clock is 3.2GHz with 8 cores.
Is the maximum memory figure the installed amount?
- No. The installed memory is 32GB; the separately stated maximum describes the platform expansion limit.
What chassis layout is identified?
- The specifications identify a 1U rack-mountable chassis with 8 hot-swap bays. The 8SFF designation describes the drive bay configuration.
