SPT-0BB0D1BCFDA929
HPE DL360 Gen10 4214R 1P 32G NC 8SFF Svr
R 195 390
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1

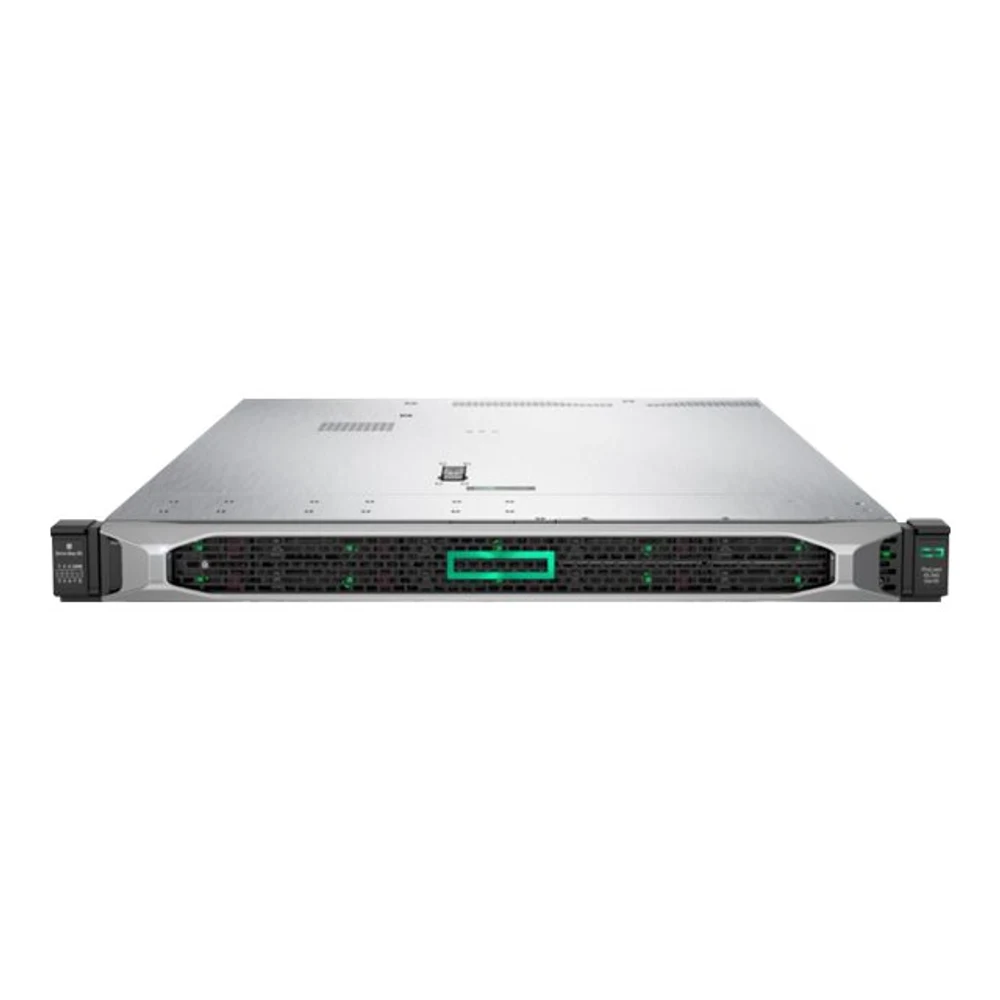

HPE DL360 Gen10 4214R 1P 32G NC 8SFF Svr.
General — Type: Server. Product Form Factor: Rack-mountable - 1U. Built-in Devices: Led panel. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: Worldwide. CPU: Intel Xeon Silver 4214R. Clock Speed: 2.4 GHz.
Specifications
- CPU
- Intel Xeon Silver 4214R
Highlights
- Intel Xeon Silver 4214R 12-core processor with 2.4 GHz base and 3.5 GHz boost
- 32 GB DDR4 Advanced ECC registered memory across 24 DIMM slots
- Eight 2.5-inch small form factor hot-swap drive bays
- HPE Smart Array P408i-a SR Gen10 SAS 12Gb/s and SATA 6Gb/s RAID controller
- Four integrated Gigabit Ethernet ports via HPE 366FLR controller
- 500W 80 PLUS Platinum hot-plug power supply
Networking
- Ethernet Ports
- 4 x Gigabit Ethernet
- Ethernet Controller
- HPE 366FLR
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol
- SNMP 3, IPMI 2.0, SMASH CLP
- Remote Management Controller
- Integrated Lights-Out 5
- Features
- Wake on LAN (WoL), PXE support
Power
- Device Type
- Power supply - hot-plug
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Installed Qty
- 1
- Max Supported Qty
- 2
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Provided
- 500 Watt
- 80 PLUS Certification
- 80 PLUS Platinum
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 1U
- Built-in Devices
- Led panel
- Server Scalability
- 2-way
- Hot-Swap Bays Qty
- 8
- Localisation
- Region: Worldwide
Cache Memory
- Installed Size
- L3 Cache - 16.5 MB
- Cache Per Processor
- 16.5 MB
Dimensions & Weight
- Width
- 43.46 cm
- Depth
- 70.7 cm
- Height
- 4.29 cm
- Weight
- 13.04 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
Environmental Standards
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 3.0
Expansion / Connectivity
- Bays
- 1 (total) / 1 (free) x external Universal Media Bay
- Bays
- 8 (total) / 8 (free) x hot-swap 2.5" SFF
- Slots
- 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height
- Slots
- 1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile
- Slots
- 1 (total) / 0 (free) x FlexibleLOM
- Slots
- 1 (total) / 1 (free) x microSD Card (internal)
- Interfaces
- 1 x VGA
- Interfaces
- 4 x LAN (Gigabit Ethernet)
- Interfaces
- 1 x HPE iLO - RJ-45
- Interfaces
- 3 x USB 3.0 (1 front, 2 rear)
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA
Hard Drive
- Type
- No HDD
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site
Miscellaneous
- Included Accessories
- HPE standard heatsink, SFF Easy install rails
- Compliant Standards
- AES, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, Redfish API, UEFI
Monitor
- Monitor Type
- None.
Operating System / Software
- OS Provided
- No operating system
- OS Certified
- Microsoft Windows Server 2012 R2 Datacenter, Microsoft Windows Server 2012 R2 Standard, Microsoft Windows Server 2012 R2 Essentials, Microsoft Windows Server 2012 R2 with Hyper-V, SuSE Linux Enterprise Server 12 SP3, Microsoft Windows Server 2016 Standard, Microsoft Windows Server 2016 Datacenter, Microsoft Windows Server 2016 Essentials, Microsoft Windows Server 2016 with Hyper-V, Red Hat Enterprise Linux 8.0, VMware vSphere 6.0 update 3, VMware vSphere 6.5 (ESXi) Update 2, Microsoft Windows Se
Optical Storage
- Type
- No optical drive
Processor / Chipset
- CPU
- Intel Xeon Silver 4214R
- Clock Speed
- 2.4 GHz
- Max Turbo Speed
- 3.5 GHz
- Number of Cores
- 12-core
- CPU Qty
- 1
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- Processor Main Features
- Hyper-Threading Technology, Intel Turbo Boost Technology 2
- CPU Socket
- FCLGA3647 Socket
- Chipset Type
- Intel C621
RAM
- Installed Size
- 32 GB / 1.5 TB (max)
- Technology
- DDR4 SDRAM - Advanced ECC
- Effective Memory Speed
- 2400 MHz
- Rated Memory Speed
- 2933 MHz
- Memory Specification Compliance
- PC4-23466
- Form Factor
- DIMM 288-pin
- Slots
- 24 (Total) / 23 (empty)
- Features
- Registered, Online Spare Memory, dual rank, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, 6-channel memory architecture
- Configuration Features
- 1 x 32 GB
- RAM Supported
- 3 TB Load-Reduced - ECC
- RAM Supported
- 1.5 TB registered - ECC
- RAM Supported
- 192 GB Non-Volatile - ECC
- RAM Supported
- 6 TB - HPE Persistent Memory - Optane DC Persistent
Storage Controller
- Type
- 1 x RAID - PCIe 3.0 x4
- Controller Interface Type
- SATA 6Gb/s
- Storage Controller Name
- HPE Smart Array S100i SR Software RAID
- Channel Qty
- 14
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 10
Storage Controller (2nd)
- Type
- 1 x RAID - PCIe 3.0 x8
- Controller Interface Type
- SATA 6Gb/s / SAS 12Gb/s
- Storage Controller Name
- HPE Smart Array P408i-a SR Gen10
- Channel Qty
- 8
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE DL360 Gen10 is a high-density 1U rack-mountable enterprise server built for compute-intensive workloads, virtualisation, and data management. Powered by a 12-core Intel Xeon Silver 4214R processor and 32 GB of DDR4 ECC memory, this two-socket scalable platform features eight 2.5-inch hot-swap drive bays, making it ideal for enterprise data centres and expanding business IT environments.
Frequently asked questions
What is the HPE ProLiant DL360 Gen10 server used for?
- The HPE DL360 Gen10 is designed for space-constrained data centres that require versatile performance. Its 1U chassis houses multi-core processing, expandable memory, and hardware RAID, making it suitable for virtualisation, database management, and high-density enterprise workloads.
Can the memory and processor on this server be upgraded?
- Yes, this server features two-way scalability supporting up to two Intel Xeon processors. The system motherboard includes 24 DIMM slots that allow memory expansion up to 1.5 TB of registered DDR4 RAM or up to 3 TB using load-reduced modules.
Does the server include a warranty in South Africa?
- Yes, this server is supplied with local South African warranty coverage through Server Hub. Hardware support and parts coverage ensure continuous reliability for your business IT infrastructure.
