hpeSPT-95D8EAC42EF143

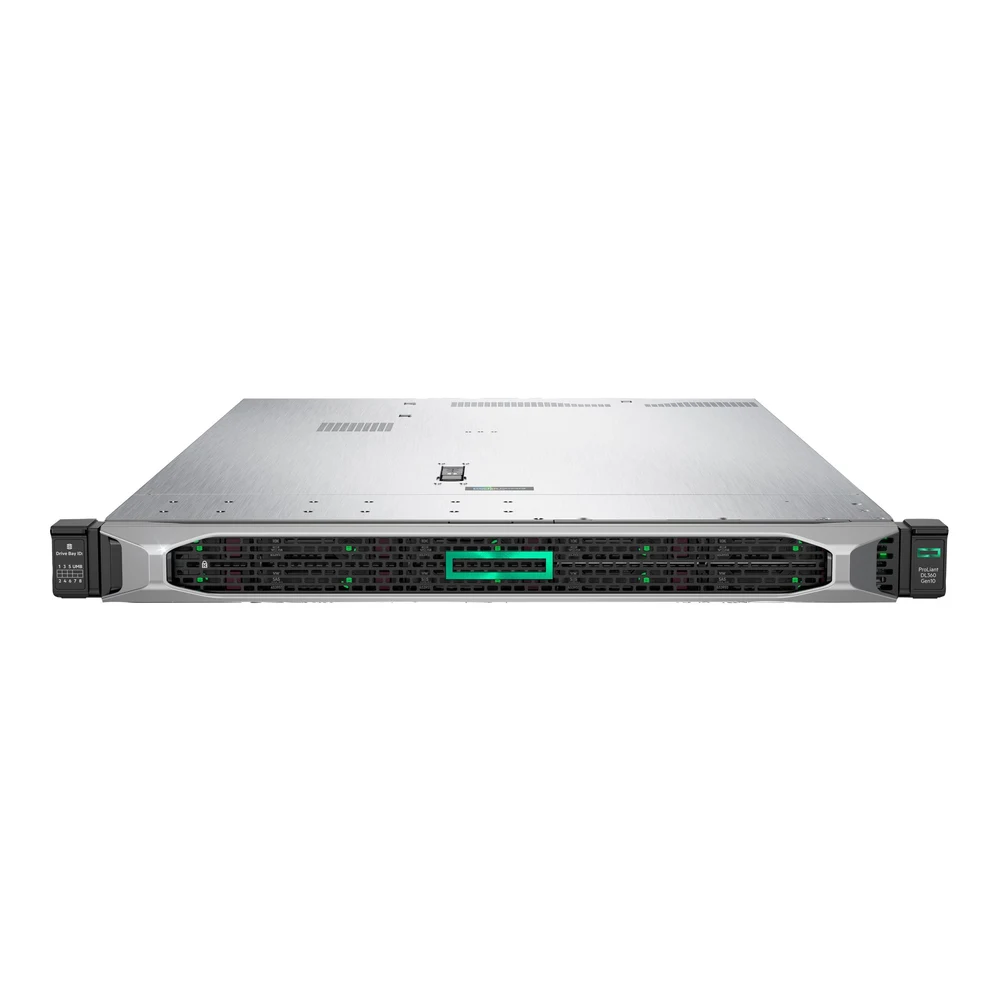

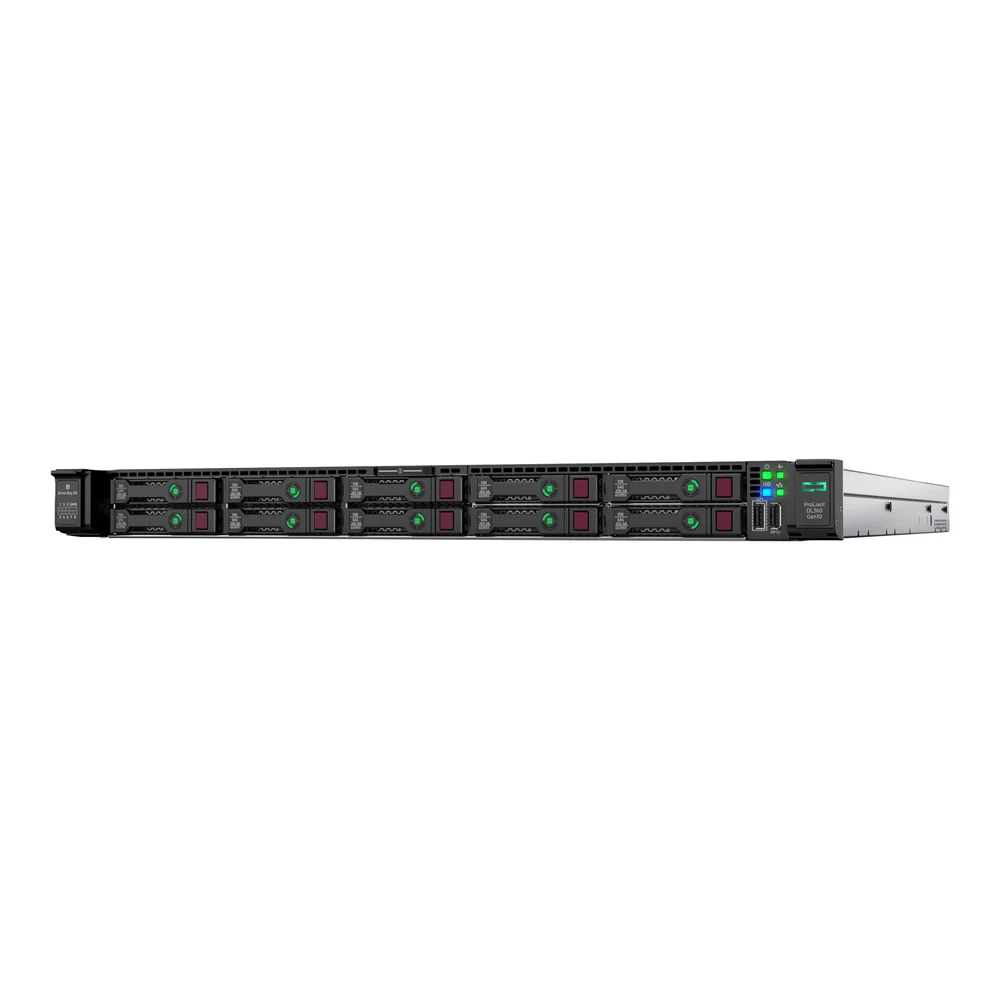

HPE DL360 Gen10 4208 1P 16G NC 8SFF Svr

Name: HPE DL360 Gen10 4208 1P 16G NC 8SFF Svr
Brand: HPE
SKU: SPT-95D8EAC42EF143
Price: 169680 ZAR
Availability: BackOrder

R 169 680

Available to order

3–7 day delivery

New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).

30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

Quantity

HPE DL360 Gen10 4208 1P 16G NC 8SFF Svr.

General — Type: Server. Product Form Factor: Rack-mountable - 1U. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: Worldwide. CPU: Intel Xeon Silver 4208. Clock Speed: 2.1 GHz. Max Turbo Speed: 3.2 GHz.

Specifications

CPU: Intel Xeon Silver 4208
Buffer Size: 2 GB

Highlights

Intel Xeon Silver 4208 8-core processor with 2.1 GHz clock speed
16 GB DDR4 SDRAM expandable across 24 DIMM slots
Eight 2.5-inch SFF hot-swap drive bays
HPE Smart Array P408i-a 12Gb/s SAS RAID controller with 2 GB cache
Quad-port Gigabit Ethernet via HPE 366FLR controller
500 Watt 80 PLUS Platinum hot-plug power supply

Networking

Interface (Bus) Type: PCI Express 2.1 x4
Ethernet Ports: 4 x Gigabit Ethernet
Ethernet Controller: HPE 366FLR
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 5
Features: Wake on LAN (WoL), PXE support
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az

Power

Device Type: Power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 120/230 V
Power Provided: 500 Watt
80 PLUS Certification: 80 PLUS Platinum

General

Type: Server
Product Form Factor: Rack-mountable - 1U
Server Scalability: 2-way
Hot-Swap Bays Qty: 8
Localisation: Region: Worldwide

Cache Memory

Installed Size: L3 Cache - 11 MB
Cache Per Processor: 11 MB

Dimensions & Weight

Width: 43.46 cm
Depth: 70.7 cm
Height: 4.29 cm
Weight: 13.04 kg

Environmental Parameters

Min Operating Temperature: 10 °C
Max Operating Temperature: 35 °C
Humidity Range Operating: 8 - 90% (non-condensing)

Environmental Standards

ENERGY STAR Certified: Yes
ENERGY STAR Version: 2.1

Expansion / Connectivity

Bays: 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots: 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height
Slots: 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile
Slots: 1 (total) / 0 (free) x FlexibleLOM
Slots: 1 (total) / 1 (free) x microSD Card (internal)
Interfaces: 1 x HPE iLO - Type A (1 in front)
Interfaces: 1 x HPE iLO - RJ-45
Interfaces: 5 x USB 3.0 (1 front, 2 rear, 2 internal)
Interfaces: 1 x VGA
Interfaces: 4 x LAN (Gigabit Ethernet) - RJ-45

Graphics Controller

Video Memory: 16 MB
Video Interfaces: VGA

Hard Drive

Type: No HDD

Manufacturer Warranty

Service & Support: Limited warranty - parts and labour - 3 years - on-site

Miscellaneous

Included Accessories: HPE Easy Install Rails, 5 x standard fans
Compliant Standards: WEEE, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1

Monitor

Monitor Type: None.

Optical Storage

Type: No optical drive

Processor / Chipset

CPU: Intel Xeon Silver 4208
Clock Speed: 2.1 GHz
Max Turbo Speed: 3.2 GHz
Number of Cores: 8-core
CPU Qty: 1
Max CPU Qty: 2
CPU Upgradability: Upgradable
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket: FCLGA3647 Socket
Chipset Type: Intel C621

RAM

Installed Size: 16 GB / 1.5 TB (max)
Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2400 MHz
Rated Memory Speed: 2933 MHz
Form Factor: DIMM 288-pin
Slots: 24 (Total) / 23 (empty)
Features: Registered, dual rank, slots 13 - 24 are available in two-processor configuration only
Configuration Features: 1 x 16 GB
RAM Supported: 3 TB Load-Reduced - ECC
RAM Supported: 1.5 TB registered - ECC
RAM Supported: 192 GB Non-Volatile - ECC
RAM Supported: 6 TB - HPE Persistent Memory - Optane DC Persistent

Storage Controller

Type: 1 x RAID - PCIe 3.0 x8
Controller Interface Type: SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name: HPE Smart Array P408i-a
Channel Qty: 8
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size: 2 GB

Related Products

Apple

The HPE ProLiant DL360 Gen10 is a compact 1U rack-mountable server engineered for enterprise workloads and virtualisation. Equipped with an 8-core Intel Xeon Silver 4208 processor, 16 GB of DDR4 memory, and eight 2.5-inch small form factor hot-swap drive bays, it provides dependable compute density and scalability for growing business data centres.

Frequently asked questions

What workloads is the HPE DL360 Gen10 server suited for?: The HPE DL360 Gen10 is designed for diverse enterprise environments including virtualisation, database management, and compute-intensive business applications. Its 1U rack-mount chassis supports dual-socket scalability and high-density storage, making it ideal for space-constrained data centres.
Can the memory and storage on this DL360 Gen10 be upgraded?: Yes, the system offers substantial expansion capabilities. It includes 24 DIMM slots supporting registered and load-reduced DDR4 memory, alongside eight 2.5-inch SFF hot-swap drive bays managed by an HPE Smart Array P408i-a RAID controller.
Does this server come with a warranty in South Africa?: Yes, this server includes a 3-year on-site limited warranty covering parts and labour. Server Hub supplies genuine hardware backed by manufacturer support for local business clients across South Africa.
