hpeSPT-CF7CE543D8F924

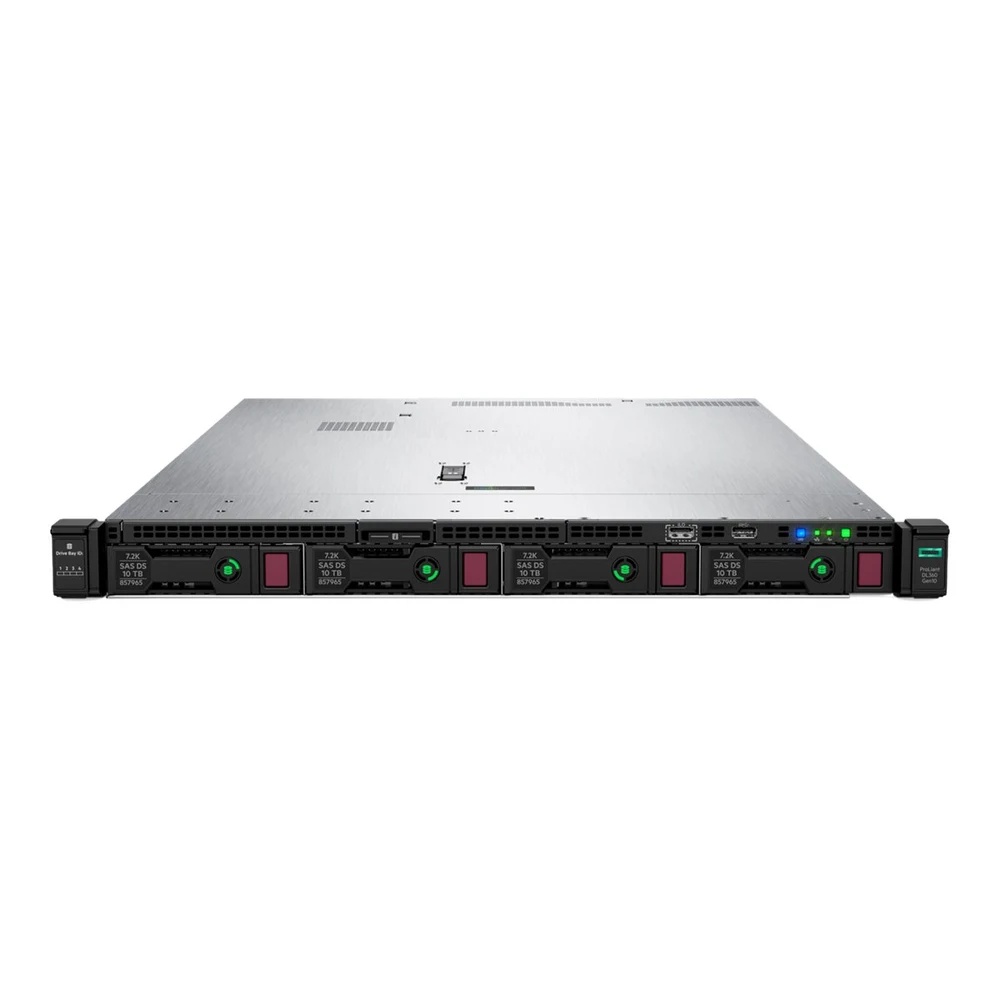

HPE DL360 Gen10 4208 1P 16G NC 4LFF Svr

Name: HPE DL360 Gen10 4208 1P 16G NC 4LFF Svr
Brand: HPE
SKU: SPT-CF7CE543D8F924
Price: 115060 ZAR
Availability: BackOrder

R 115 060

Available to order

3–7 day delivery

New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).

30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

Quantity

HPE DL360 Gen10 4208 1P 16G NC 4LFF Svr.

General — Type: Server. Product Form Factor: Rack-mountable - 1U. Built-in Devices: Led panel. Server Scalability: 2-way. Hot-Swap Bays Qty: 4. CPU: Intel Xeon Silver 4208. Clock Speed: 2.1 GHz. Max Turbo Speed: 3.2 GHz.

Specifications

CPU: Intel Xeon Silver 4208

Highlights

Intel Xeon Silver 4208 8-core processor with 2.1 GHz base and 3.2 GHz turbo
16 GB DDR4 SmartMemory expandable up to 1.5 TB registered RAM
Four hot-swap 3.5-inch LFF SATA drive bays
Embedded HPE Integrated Lights-Out 5 (iLO 5) remote management
Quad-port Gigabit Ethernet network controller (HPE 366FLR)
500W 80 PLUS Platinum hot-plug power supply

Networking

Ethernet Ports: 4 x Gigabit Ethernet
Ethernet Controller: HPE 366FLR
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 5
Features: Wake on LAN (WoL), PXE support

Power

Device Type: Power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)
Power Provided: 500 Watt
80 PLUS Certification: 80 PLUS Platinum

General

Type: Server
Product Form Factor: Rack-mountable - 1U
Built-in Devices: Led panel
Server Scalability: 2-way
Hot-Swap Bays Qty: 4

Cache Memory

Installed Size: L3 Cache - 11 MB
Cache Per Processor: 11 MB

Card Reader

Type: Card reader
Supported Flash Memory Cards: microSD

Dimensions & Weight

Width: 43.46 cm
Depth: 70.7 cm
Height: 4.29 cm
Weight: 13.04 kg

Environmental Parameters

Min Operating Temperature: 10 °C
Max Operating Temperature: 35 °C
Humidity Range Operating: 8 - 90% (non-condensing)
Sound Emission: 38.1 dBA

Environmental Standards

ENERGY STAR Certified: Yes
ENERGY STAR Version: 2.1

Expansion / Connectivity

Bays: 1 (total) / 1 (free) x external Universal Media Bay
Bays: 4 (total) / 4 (free) x hot-swap 3.5" LFF
Slots: 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height
Slots: 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile
Slots: 1 (total) / 1 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile)
Slots: 1 (total) / 1 (free) x microSD Card (internal)
Slots: 1 (total) / 1 (free) x PCIe x16 - full-height
Interfaces: 1 x HPE iLO - Type A (1 in front)
Interfaces: 1 x HPE iLO - RJ-45 (1 rear)
Interfaces: 5 x USB 3.0 (1 front, 2 rear, 2 internal)
Interfaces: 1 x VGA (1 rear)
Interfaces: 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear)

Graphics Controller

Video Memory: 16 MB
Video Interfaces: VGA

Hard Drive

Type: No HDD

Manufacturer Warranty

Service & Support: Limited warranty - parts and labour - 3 years - on-site

Miscellaneous

Included Accessories: 5 x standard hot plug fans
Compliant Standards: AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, FIPS 201 PIV, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1

Monitor

Monitor Type: None.

Operating System / Software

OS Provided: No operating system
OS Certified: CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, ClearOS
Software: HPE Server UEFI

Optical Storage

Type: No optical drive

Processor / Chipset

CPU: Intel Xeon Silver 4208
Clock Speed: 2.1 GHz
Max Turbo Speed: 3.2 GHz
Number of Cores: 8-core
CPU Qty: 1
Max CPU Qty: 2
CPU Upgradability: Upgradable
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket: FCLGA3647 Socket
Chipset Type: Intel C621

RAM

Installed Size: 16 GB / 1.5 TB (max)
Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2400 MHz
Rated Memory Speed: 2933 MHz
Form Factor: DIMM 288-pin
Slots: 24 (Total) / 23 (empty)
Features: Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
Configuration Features: 1 x 16 GB
RAM Supported: 3 TB Load-Reduced - ECC
RAM Supported: 1.5 TB registered - ECC
RAM Supported: 192 GB Non-Volatile - ECC

Storage Controller

Type: 1 x SATA
Controller Interface Type: SATA 6Gb/s
Storage Controller Name: HPE Smart Array S100i SR Software
Channel Qty: 14

Related Products

Apple

The HPE ProLiant DL360 Gen10 is a compact 1U rack-mountable enterprise server built for virtualisation, compute workloads, and database management. Powered by an 8-core Intel Xeon Silver 4208 processor, 16 GB of DDR4 memory, and four 3.5-inch hot-swap LFF storage bays, it offers dependable performance and dual-socket scalability for growing business data centres across South Africa.

Frequently asked questions

What workloads is the HPE DL360 Gen10 server suited for?: This 1U rack server is designed for general enterprise workloads, virtualisation, and business application hosting. Its 8-core Intel Xeon Silver processor and expandable memory architecture provide balanced compute density for space-constrained server racks.
Can the memory and processor be upgraded on this unit?: Yes, the chassis supports 2-way multi-processor scalability, allowing the addition of a second compatible CPU. It also includes 24 DIMM slots capable of supporting up to 1.5 TB of registered DDR4 ECC RAM or 3 TB of load-reduced RAM.
Does this HPE DL360 Gen10 server come with a warranty?: Yes, it is covered by a 3-year limited warranty including parts, labour, and on-site support. Orders placed through Server Hub are supported locally in South Africa.
